Vendor: Sparex - SKU:

Bondioli & Pavesi PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165146

Bondioli & Pavesi PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165146

SKU:SP-S.165146

Regular price £1,143.72 GBP
Regular price £1,270.80 GBP Sale price £1,143.72 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity
Default Title

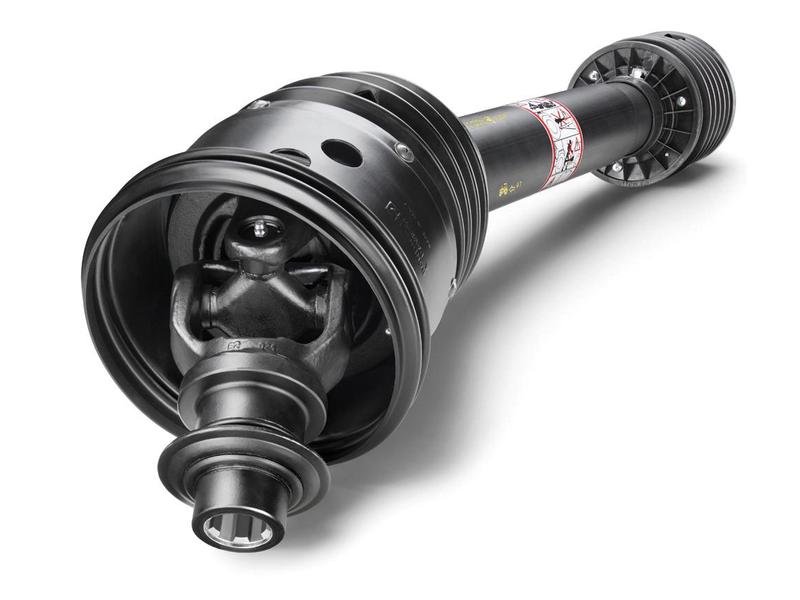

Bondioli & Pavesi PTO Shaft - Wide Angle

Introducing the Bondioli & Pavesi PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1210mm and is equipped with a 1 3/8'' x 6 Spline 80° W.A. at the tractor end and a 1 3/8'' x 6 Spline Q.R. at the implement end, making it a versatile choice for various applications.

Key Specifications:

  • Brand: Bondioli & Pavesi
  • Guard Type: Global
  • HP Rating @ 540RPM: 83 HP
  • HP Rating @ 1000RPM: 130 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540RPM: 61 kW
  • Kilowatt Power Rating @ 1000RPM: 96 kW
  • Torque: 335 - 1240 Nm (Max Torque: 1080 Nm)
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 106 mm
  • Reference: 7G8R121CEWS7007
  • Tariff Code: 8483908990
  • Related Products: 24216, 165075, 165082, 165083, 165103, 165108, 165121, 165134, 165168, 165171, 166079

This PTO shaft is part of the Global G8-80° series, ensuring compatibility and reliability for your agricultural machinery. Whether you're looking to replace an old shaft or upgrade your equipment, the Bondioli & Pavesi PTO Shaft is engineered to meet your needs.

Product Supplier: Sparex

Product SKU: SP-165146

OEM Fitment Information: Bondioli & Pavesi, 7G8R121CEWS7007

Machine Fitment Information: This product is not associated with any particular make or model.

Additional Product Information

Product Specifications

Brand: Bondioli & Pavesi
Guard Type: Global
HP Rating @ 540RPM: 83
HP Rating @ 1000RPM: 130
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: Global G8-80°
Kilowatt Power Rating @ 540RPM: 61
Kilowatt Power Rating @ 1000RPM: 96
Lz Length (mm): 1210
PTO Series: Global G8-80°
Reference: 7G8R121CEWS7007
Related products: 24216, 165075, 165082, 165083, 165103, 165108, 165121, 165134, 165168, 165171, 166079
Tariff Code: 8483908990
Torque (Nm): 1080
Torque: 335 - 1240Nm
Tractor End: 1 3/8'' x 6 Spline 80° W.A.
Tube Profile: Triangle
Tube Ref: 24518/12517
Universal Joint Dimensions: 30.2 x 106mm

OEM Manufacture Information

Bondioli & Pavesi
7G8R121CEWS7007

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Bondioli & Pavesi PTO Shaft - 1210mm, 80° Wide Angle

- **Bondioli & Pavesi PTO Shaft:** High-quality, durable, and reliable PTO shaft for optimal performance.
- **Wide Angle Design:** 80° wide angle design for increased versatility and compatibility with various agricultural machinery.
- **1210mm Length:** Provides ample reach for connecting implements to your tractor.
- **1 3/8'' x 6 Spline:** Standard spline size for compatibility with a wide range of tractors and implements.
- **Global G8-80° Series:** Ensures compatibility and reliability with other components in the series.
