Vendor: Sparex - SKU:

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.128686

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.128686

SKU:SP-S.128686

Regular price £249.60 GBP
Regular price £249.60 GBP Sale price £249.60 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 53 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1010mm

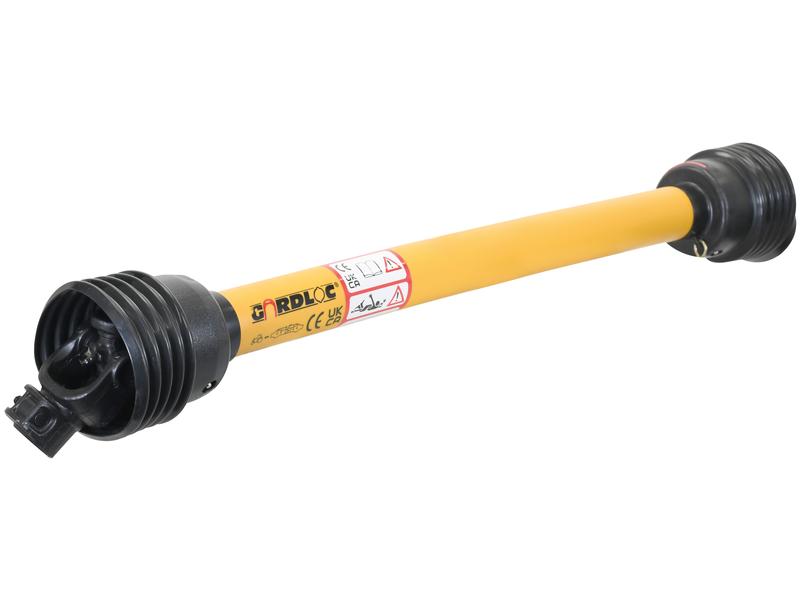

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects with a 1 3/8'' x 6 Spline Quick Release (Q.R.) at the tractor end and a 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise) at the implement end.

Key Specifications:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 35 HP
  • HP Rating @ 1000RPM: 53 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Kilowatt Power Rating @ 540RPM: 26 kW
  • Kilowatt Power Rating @ 1000RPM: 39 kW
  • Torque: 335 - 1240 Nm (460 Nm nominal)
  • Total Closed Length: 1256 mm
  • Tractor PTO Rotation: Clockwise
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Italian Series: AB4/A4
  • PTO Series: AB4/A4
  • Tube Reference: 12507/12508
  • Replacement Guard: S.168310
  • Tariff Code: 8483908990
  • Related Products: 166692

This GARDLOC PTO Shaft is an excellent alternative to part number 162395 and is not associated with any specific OEM part number. It is designed to fit a variety of applications, making it a versatile choice for your machinery needs.

Upgrade your equipment with the reliable and efficient GARDLOC PTO Shaft today!

Additional Product Information

Product Specifications

Alternative to: 162395
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 35
HP Rating @ 1000RPM: 53
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Overunning Clutch (Clockwise)
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Kilowatt Power Rating @ 1000RPM: 39
Lz Length (mm): 1010
PTO Series: AB4/A4
Related products: 166692
Replacement Guard: S.168310
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1256
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tractor PTO Rotation: Clockwise
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 1010mm, 1 3/8" x 6 Spline, Overrunning Clutch

- **High-Quality GARDLOC PTO Shaft:** Ensuring durability and optimal performance.
- **1010mm Length:** Suitable for a wide range of applications.
- **1 3/8'' x 6 Spline Quick Release (Q.R.) Tractor End:** Easy and secure connection.
- **1 3/8'' x 6 Spline Overrunning Clutch (Clockwise) Implement End:** Smooth power transmission and overload protection.
- **Alternative to Part Number 162395:** A versatile replacement option for various machinery.
