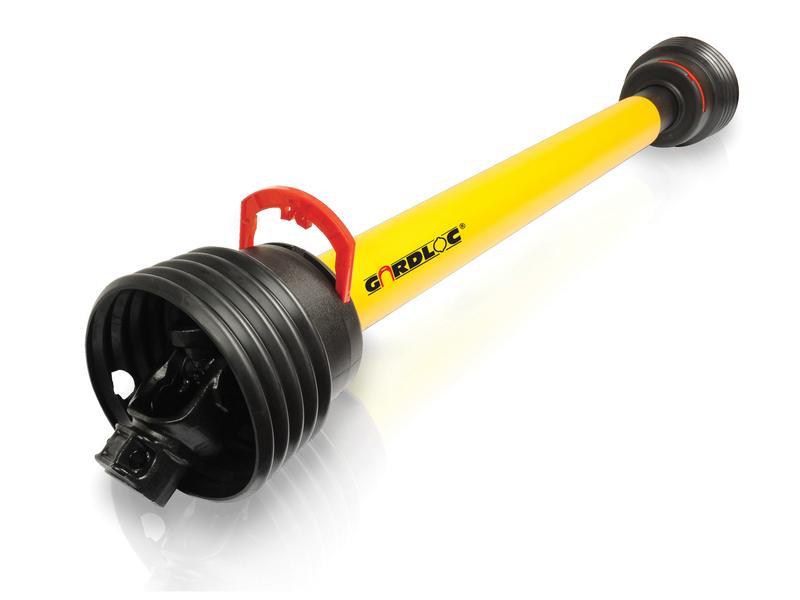

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128682

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128682

SKU:SP-S.128682

Regular price £152.84 GBP
Regular price £169.82 GBP Sale price £152.84 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

148 in stock

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128682

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is compatible with various implements and tractors, making it an essential addition to your equipment.

Key Features:

  • Alternative Part Numbers: 26372, 162396
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 35 HP @ 540 RPM, 53 HP @ 1000 RPM
  • HP Rating Range: Up to 54 HP @ 540 RPM
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB4/A4
  • Kilowatt Power Rating: 26 kW @ 540 RPM, 39 kW @ 1000 RPM
  • Lz Length: 1010 mm
  • PTO Series: AB4/A4
  • Related Products: 166692
  • Replacement Guard: S.168310
  • Tariff Code: 8483908990
  • Torque: 460 Nm (335 - 1240 Nm)
  • Total Closed Length: 1226 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Tube Reference: 12507/12508
  • Universal Joint Dimensions: 27 x 74.5 mm

This GARDLOC PTO Shaft is engineered to meet the demands of modern farming, ensuring optimal performance and longevity. Whether you're replacing an old shaft or upgrading your equipment, this product is designed to fit seamlessly into your existing setup.

For more information or to purchase, please refer to the Sparex Part Number: S.128682.

Additional Product Information

Product Specifications

Alternative to: 26372, 162396
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 35
HP Rating @ 1000RPM: 53
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Kilowatt Power Rating @ 1000RPM: 39
Lz Length (mm): 1010
PTO Series: AB4/A4
Related products: 166692
Replacement Guard: S.168310
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1226
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
