GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128698

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128698

SKU:SP-S.128698

Regular price £203.28 GBP
Regular price £225.86 GBP Sale price £203.28 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

208 in stock

Quantity
Default Title

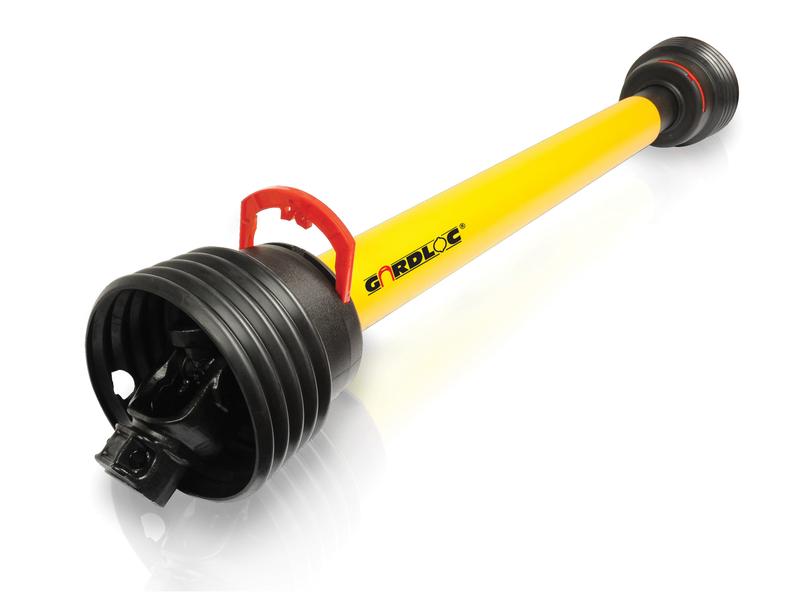

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Upgrade your agricultural equipment with the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and is equipped with a 1 3/8'' x 6 Spline Q.R. connection on both ends, ensuring compatibility with a variety of implements.

Key Specifications:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 64 HP
  • HP Rating @ 1000RPM: 83 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540RPM: 47 kW
  • Kilowatt Power Rating @ 1000RPM: 61 kW
  • Torque: 335 - 1240 Nm (830 Nm nominal)
  • Total Closed Length: 1246 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 92 mm
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB6/A6
  • PTO Series: AB6/A6
  • Tube Reference: 12509/12512
  • Replacement Guard: S.168312
  • Tariff Code: 8483908990
  • Related Products: 166692

This GARDLOC PTO Shaft is an excellent alternative to part numbers 118009 and 162400, making it a versatile choice for your machinery needs. Enhance your equipment's efficiency and reliability with this robust PTO shaft.

Product SKU: SP-128698

Supplier: Sparex

Additional Product Information

Product Specifications

Alternative to: 118009, 162400
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 64
HP Rating @ 1000RPM: 83
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Kilowatt Power Rating @ 1000RPM: 61
Lz Length (mm): 1010
PTO Series: AB6/A6
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (mm): 1246
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 1010mm, 1 3/8" x 6 Spline Q.R.

- **High-Quality GARDLOC PTO Shaft:** Ensuring durability and optimal performance for your agricultural equipment.
- **1010mm Length:** Suitable for a wide range of applications.
- **1 3/8'' x 6 Spline Q.R. Connection:** Compatible with various implements.
- **High HP Rating:** 64 HP @ 540 RPM and 83 HP @ 1000 RPM, providing ample power for demanding tasks.
- **Versatile Alternative:** Replaces part numbers 118009 and 162400, making it a suitable choice for various machinery needs.
