GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128717

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128717

SKU:SP-S.128717

Regular price £129.77 GBP
Regular price £144.19 GBP Sale price £129.77 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 27 left

Quantity
Default Title

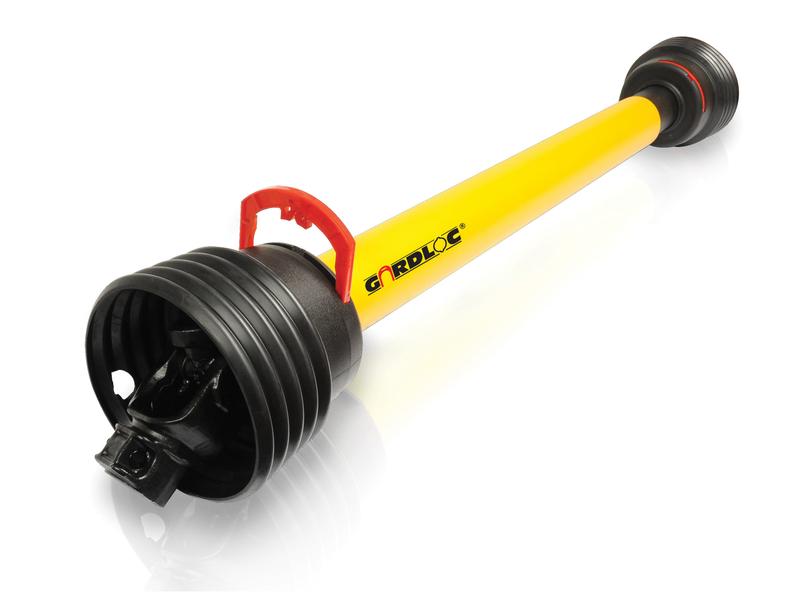

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for the German Series AW21/W2300, this PTO shaft is engineered to deliver exceptional power and efficiency.

Key Features:

  • Alternative Part Numbers: 39010, 164265
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 35 HP @ 540 RPM, 53 HP @ 1000 RPM
  • HP Rating Range: Up to 54 HP @ 540 RPM
  • Kilowatt Power Rating: 26 kW @ 540 RPM, 53 kW @ 1000 RPM
  • Lz Length: 1010 mm
  • Total Closed Length: 1226 mm
  • Torque: 780 Nm (335 - 1240 Nm)
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Lemon
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Replacement Guard: S.163811
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is not associated with any specific OEM part number, making it a versatile choice for various applications. With its robust construction and high torque capabilities, it ensures optimal performance in demanding conditions.

For additional compatibility, check related products such as 166692. Upgrade your machinery with the GARDLOC PTO Shaft and experience the difference in power and efficiency.

Additional Product Information

Product Specifications

Alternative to: 39010, 164265
Brand: GARDLOC
German Series: AW21/W2300
Guard Type: Gardloc
HP Rating @ 540RPM: 35
HP Rating @ 1000RPM: 53
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Kilowatt Power Rating @ 540RPM: 26
Kilowatt Power Rating @ 1000RPM: 53
Lz Length (mm): 1010
PTO Series: AW21/W2300
Related products: 166692
Replacement Guard: S.163811
Tariff Code: 8483908990
Torque (Nm): 780
Torque: 335 - 1240Nm
Total Closed Length (mm): 1226
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Lemon
Tube Ref: 0v/1
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 1010mm, 1 3/8" x 6 Spline Q.R.

- **High-Performance GARDLOC PTO Shaft:** Designed for the German Series AW21/W2300, delivering exceptional power and efficiency.
- **Versatile Compatibility:** Not associated with any specific OEM part number, making it suitable for various applications.
- **Robust Construction:** Engineered for demanding conditions, ensuring optimal performance.
- **High Torque Capabilities:** 780 Nm (335 - 1240 Nm) for powerful operation.
- **Alternative Part Numbers:** 39010, 164265, providing compatibility with other models.
