Vendor: Sparex - SKU:

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch | Sparex Part Number: S.128693

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch | Sparex Part Number: S.128693

SKU:SP-S.128693

Regular price £315.36 GBP
Regular price £350.40 GBP Sale price £315.36 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 63 left

Quantity
Default Title

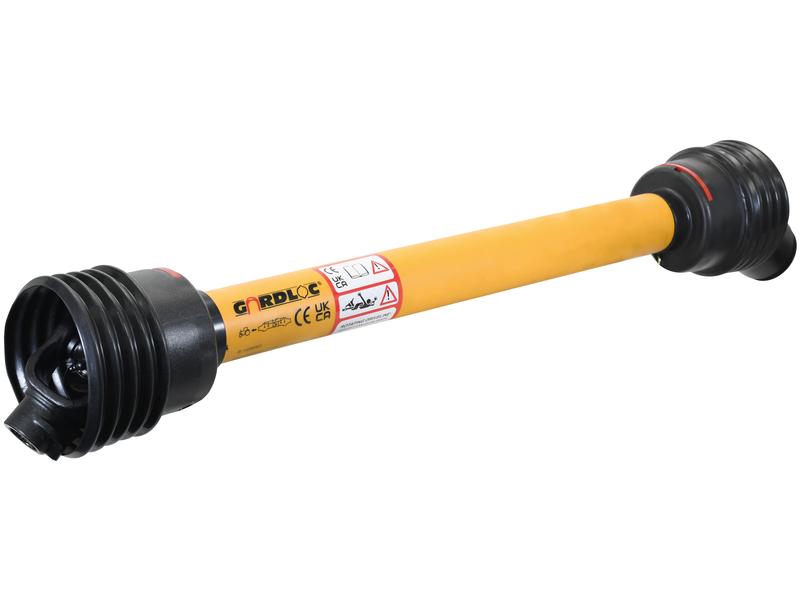

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Ratchet Clutch.

Key Features:

  • Brand: GARDLOC
  • Clutch Setting: 900 Nm
  • HP Rating:
    • At 540 RPM: 47 HP
    • At 1000 RPM: 75 HP
    • Range at 540 RPM: Up to 54 HP
  • Kilowatt Power Rating:
    • At 540 RPM: 35 kW
    • At 1000 RPM: 55 kW
  • Torque:
    • 620 Nm
    • Range: 335 - 1240 Nm
  • Total Closed Length: 1285 mm
  • Tube Profile: Triangle
  • Type: 3 Row
  • Universal Joint Dimensions: 30.2 x 79.4 mm

Compatibility:

This PTO shaft is part of the Italian Series AB5/A5 and is an alternative to part number 162398. It is not associated with any specific OEM part number or particular make or model.

Additional Information:

  • Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Replacement Guard: S.168312
  • Related Products: 166692
  • Tariff Code: 8483908990
  • Tube Reference: 12509/12510

Upgrade your machinery with the reliable and efficient GARDLOC PTO Shaft today!

Additional Product Information

Product Specifications

Alternative to: 162398
Brand: GARDLOC
Clutch Setting Nm: 900
Guard Type: Gardloc
HP Rating @ 540RPM: 47
HP Rating @ 1000RPM: 75
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
Italian Series: AB5/A5
Kilowatt Power Rating @ 540RPM: 35
Kilowatt Power Rating @ 1000RPM: 55
Lz Length (mm): 1010
PTO Series: AB5/A5
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 620
Torque: 335 - 1240Nm
Total Closed Length (mm): 1285
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12510
Type: 3 Row
Universal Joint Dimensions: 30.2 x 79.4mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
