GARDLOC PTO Shaft - (Lz) Length: 1160mm

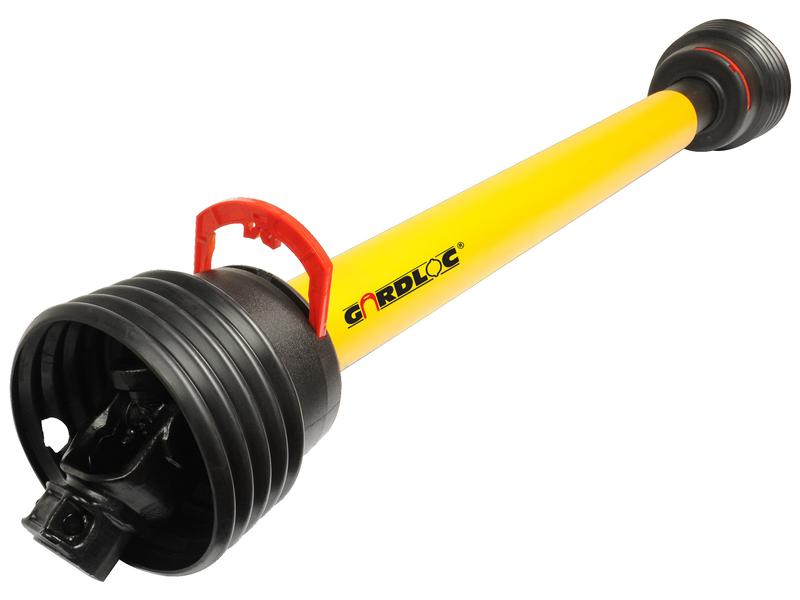

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1160mm and is equipped with 1 3/8'' x 6 Spline Q.R. connections on both ends, making it a versatile choice for various applications.

Key Specifications:

  • Alternative to: 4639, 164301
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 64 HP
  • HP Rating @ 1000RPM: 83 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540RPM: 47 kW
  • Kilowatt Power Rating @ 1000RPM: 61 kW
  • PTO Series: AB6/A6
  • Torque: 335 - 1240 Nm (830 Nm nominal)
  • Total Closed Length: 1396 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 92 mm
  • Tube Ref: 12509/12512
  • Replacement Guard: S.168313
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is an excellent choice for those seeking reliability and efficiency in their machinery. With its robust construction and high torque capabilities, it is suitable for a variety of agricultural and industrial applications. Upgrade your equipment with the GARDLOC PTO Shaft today!

Additional Product Information

Product Specifications

Alternative to: 4639, 164301
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 64
HP Rating @ 1000RPM: 83
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Kilowatt Power Rating @ 1000RPM: 61
Lz Length (mm): 1160
PTO Series: AB6/A6
Related products: 166692
Replacement Guard: S.168313
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (mm): 1396
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 1160mm, 1 3/8" x 6 Spline Q.R.

- **GARDLOC PTO Shaft with 1160mm Length:** A durable and versatile shaft for various applications.
- **1 3/8'' x 6 Spline Q.R. Connections:** Ensures compatibility with a wide range of implements.
- **High Torque Capacity:** Delivers powerful performance with a nominal torque of 830 Nm.
- **Wide HP Rating Range:** Suitable for tractors with HP ratings from 55 to 119 at 540 RPM.
- **Alternative to Popular Models:** Replaces common PTO shafts like 4639 and 164301.
