Vendor: Sparex - SKU:

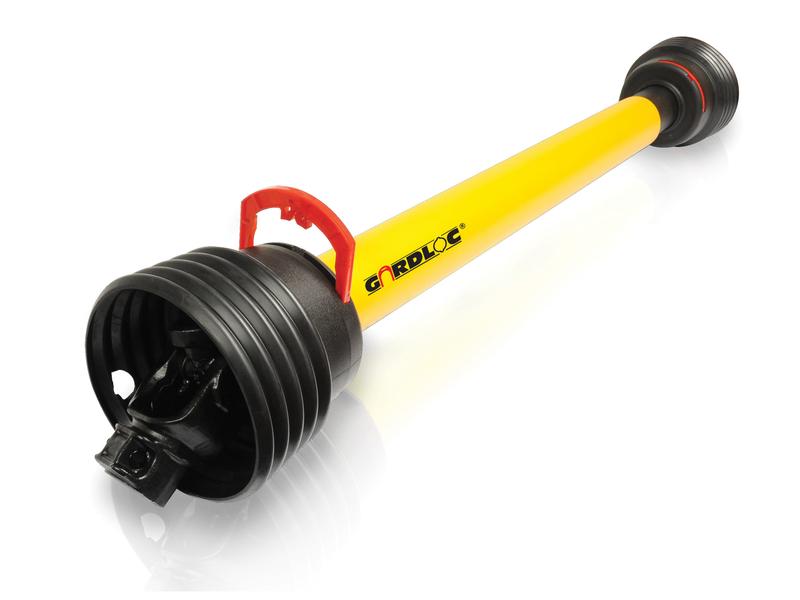

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128700

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128700

SKU:SP-S.128700

Regular price £260.28 GBP
Regular price £289.20 GBP Sale price £260.28 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 27 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128700

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is an excellent choice for various applications.

Key Features:

  • Alternative Part Numbers: 118010, 164302
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 64 HP @ 540 RPM, 83 HP @ 1000 RPM
  • HP Rating Range: 55 to 119 HP @ 540 RPM
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB6/A6
  • Kilowatt Power Rating: 47 kW @ 540 RPM, 61 kW @ 1000 RPM
  • Lz Length: 1210 mm
  • PTO Series: AB6/A6
  • Related Products: 166692
  • Replacement Guard: S.168313
  • Tariff Code: 8483908990
  • Torque: 830 Nm (335 - 1240 Nm range)
  • Total Closed Length: 1446 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Tube Reference: 12509/12512
  • Universal Joint Dimensions: 30.2 x 92 mm

This GARDLOC PTO Shaft is designed to meet the highest standards of performance and reliability, making it an essential component for your machinery. Whether you're replacing an old shaft or upgrading your equipment, the GARDLOC PTO Shaft ensures optimal power transfer and efficiency.

For more information or to purchase, please refer to the Sparex Part Number: S.128700.

Additional Product Information

Product Specifications

Alternative to: 118010, 164302
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 64
HP Rating @ 1000RPM: 83
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Kilowatt Power Rating @ 1000RPM: 61
Lz Length (mm): 1210
PTO Series: AB6/A6
Related products: 166692
Replacement Guard: S.168313
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (mm): 1446
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 1210mm, 1 3/8" x 6 Spline Q.R.

- **High HP Rating:** 64 HP @ 540 RPM, 83 HP @ 1000 RPM
- **Wide HP Rating Range:** 55 to 119 HP @ 540 RPM
- **Durable Construction:** Triangle tube profile, 1 3/8'' x 6 Spline Q.R. ends
- **Versatile Application:** Suitable for various agricultural implements
- **Reliable Performance:** GARDLOC brand, known for quality and durability
