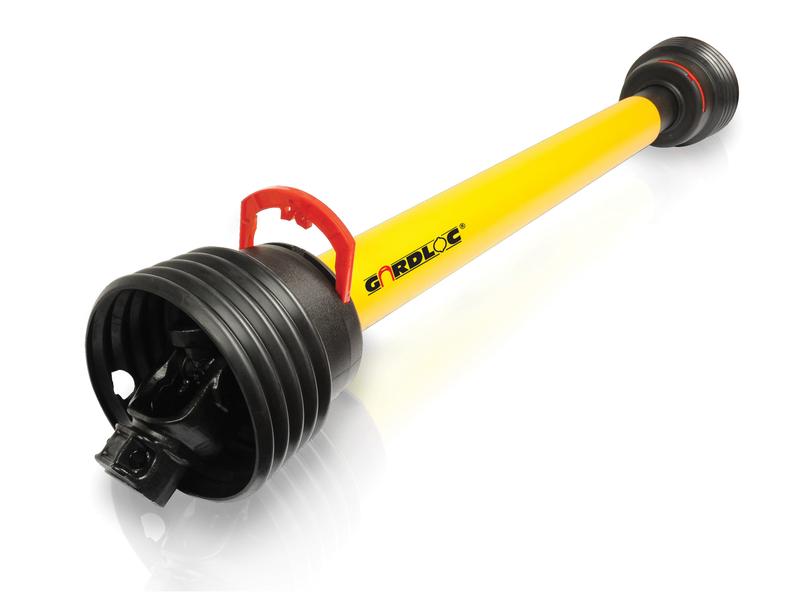

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.166268

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.166268

SKU:SP-S.166268

Regular price £235.44 GBP
Regular price £261.60 GBP Sale price £235.44 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 40 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.166268

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for optimal efficiency, this PTO shaft is compatible with the German Series AW35/W2400 and features a robust construction that ensures durability and longevity.

Key Features:

  • Alternative Part Numbers: 39015, 164268
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 53 HP (up to 54 HP)
  • Kilowatt Power Rating @ 540RPM: 39 kW
  • Lz Length: 1210 mm
  • Total Closed Length: 1432 mm
  • Torque: 335 - 1240 Nm (695 Nm nominal)
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Lemon
  • Universal Joint Dimensions: 32 x 76 mm
  • Tube Reference: 1b/2a
  • PTO Series: AW35/W2400
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, providing a seamless connection between your tractor and implements. With its high torque capacity and reliable performance, it is the perfect choice for enhancing your machinery's efficiency.

Upgrade your equipment with the GARDLOC PTO Shaft today and experience the difference in performance and reliability!

Additional Product Information

Product Specifications

Alternative to: 39015, 164268
Brand: GARDLOC
German Series: AW35/W2400
Guard Type: Gardloc
HP Rating @ 540RPM: 53
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Kilowatt Power Rating @ 540RPM: 39
Lz Length (mm): 1210
PTO Series: AW35/W2400
Related products: 166692
Tariff Code: 8483908990
Torque (Nm): 695
Torque: 335 - 1240Nm
Total Closed Length (mm): 1432
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Lemon
Tube Ref: 1b/2a
Universal Joint Dimensions: 32 x 76mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
