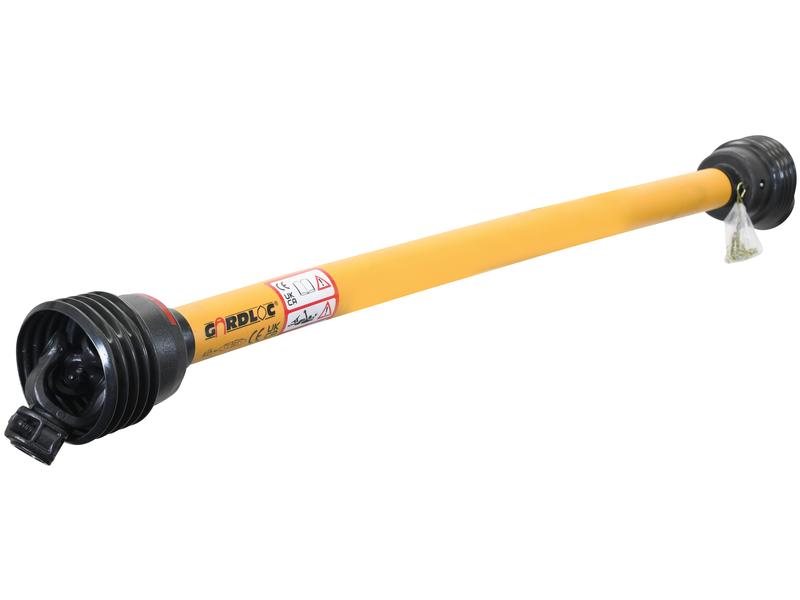

GARDLOC PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.143028

GARDLOC PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.143028

SKU:SP-S.143028

Regular price £243.00 GBP
Regular price £270.00 GBP Sale price £243.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 25 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1510mm

Introducing the GARDLOC PTO Shaft, a reliable and efficient solution for your agricultural needs. Designed for optimal performance, this PTO shaft features a length of 1510mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Overrunning Clutch with a clockwise rotation.

Key Features:

  • Alternative to: 162404
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 35 HP (up to 54 HP)
  • Kilowatt Power Rating @ 540RPM: 26 kW
  • Torque: 335 - 1240 Nm (460 Nm nominal)
  • Total Closed Length: 1756 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Italian Series: AB4/A4
  • PTO Series: AB4/A4
  • Tractor PTO Rotation: Clockwise
  • Tube Reference: 12507/12508
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is an essential component for enhancing the efficiency of your machinery. With its robust construction and high torque capabilities, it is designed to withstand the demands of agricultural operations. Upgrade your equipment with this high-performance PTO shaft today!

Additional Product Information

Product Specifications

Alternative to: 162404
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Overunning Clutch (Clockwise)
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 1510
PTO Series: AB4/A4
Related products: 166692
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1756
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tractor PTO Rotation: Clockwise
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
