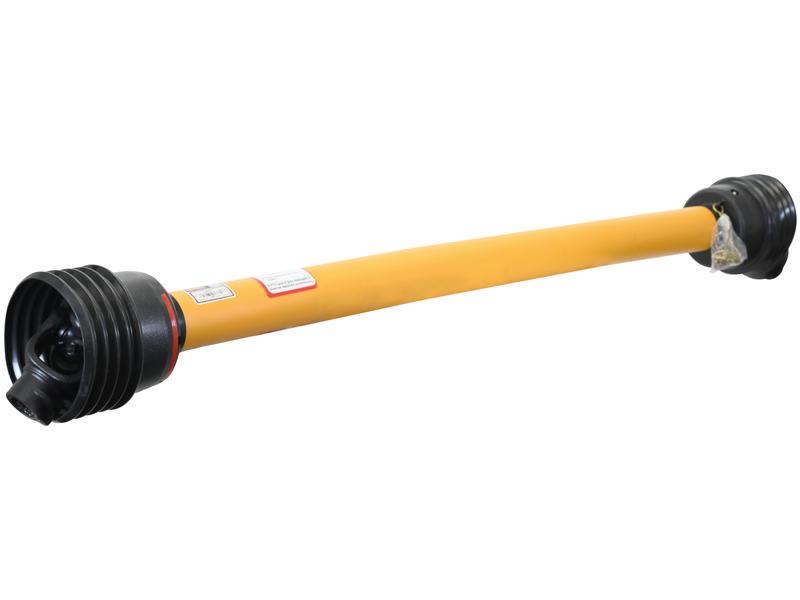

GARDLOC PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.166270

GARDLOC PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.166270

SKU:SP-S.166270

Regular price £301.32 GBP
Regular price £334.80 GBP Sale price £301.32 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1510mm

Introducing the GARDLOC PTO Shaft, a reliable and efficient solution for your agricultural needs. Designed for optimal performance, this PTO shaft features a length of 1510mm and is equipped with a 1 3/8'' x 6 Spline Quick Release (Q.R.) at the tractor end and a 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise) at the implement end.

Key Features:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 47 HP (up to 54 HP)
  • Kilowatt Power Rating @ 540RPM: 35 kW
  • Torque Range: 335 - 1240 Nm (Max Torque: 620 Nm)
  • Total Closed Length: 1781 mm
  • Tractor PTO Rotation: Clockwise
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 79.4 mm
  • Italian Series: AB5/A5
  • Related Products: 166692
  • Tariff Code: 8483908990

This PTO shaft is an excellent alternative to part number 164292 and is compatible with the PTO Series AB5/A5. Please note that this product is not associated with any specific OEM part number or particular make or model.

Upgrade your machinery with the GARDLOC PTO Shaft and experience enhanced performance and durability. For more information, refer to the product specifications above.

Additional Product Information

Product Specifications

Alternative to: 164292
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 47
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Overunning Clutch (Clockwise)
Italian Series: AB5/A5
Kilowatt Power Rating @ 540RPM: 35
Lz Length (mm): 1510
PTO Series: AB5/A5
Related products: 166692
Tariff Code: 8483908990
Torque (Nm): 620
Torque: 335 - 1240Nm
Total Closed Length (mm): 1781
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tractor PTO Rotation: Clockwise
Tube Profile: Triangle
Tube Ref: 12509/12510
Universal Joint Dimensions: 30.2 x 79.4mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
