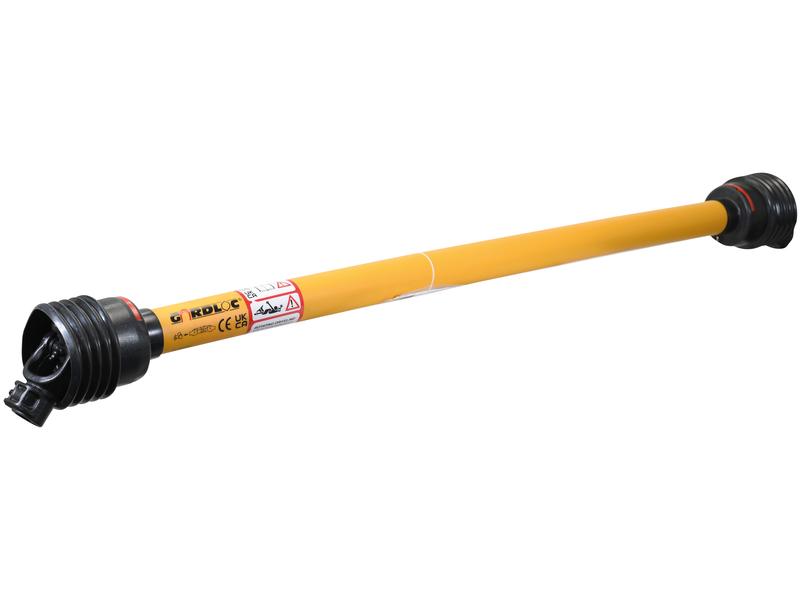

GARDLOC PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.143027

GARDLOC PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.143027

SKU:SP-S.143027

Regular price £223.56 GBP
Regular price £248.40 GBP Sale price £223.56 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 21 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1510mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1510mm and connects with a 1 3/8'' x 6 Spline Q.R. to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Features:

  • Alternative to: 162403
  • Brand: GARDLOC
  • Clutch Setting: 1600 Nm
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 35 HP (Rating Range: up to 54 HP)
  • Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
  • Italian Series: AB4/A4
  • Kilowatt Power Rating @ 540RPM: 26 kW
  • PTO Series: AB4/A4
  • Torque: 335 - 1240 Nm (Max Torque: 460 Nm)
  • Total Closed Length: 1725 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R. Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Shearbolt Clutch Bolt Diameter: 8 mm
  • Shearbolt Clutch Radius: 55 mm
  • Tube Reference: 12507/12508
  • Tariff Code: 8483908990

Compatibility:

This product is not associated with any particular OEM part number or specific make or model, making it a versatile choice for various applications.

Related Products:

Explore additional options with our related product: 166692.

Upgrade your machinery with the reliable and efficient GARDLOC PTO Shaft today!

Additional Product Information

Product Specifications

Alternative to: 162403
Brand: GARDLOC
Clutch Setting Nm: 1600
Guard Type: Gardloc
HP Rating @ 540RPM: 35HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 1510
PTO Series: AB4/A4
Related products: 166692
Shearbolt Clutch Bolt Ø mm: 8
Shearbolt Clutch Radius mm: 55
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1725
Tractor End: 1 3/8'' x 6 Spline Q.R.Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
