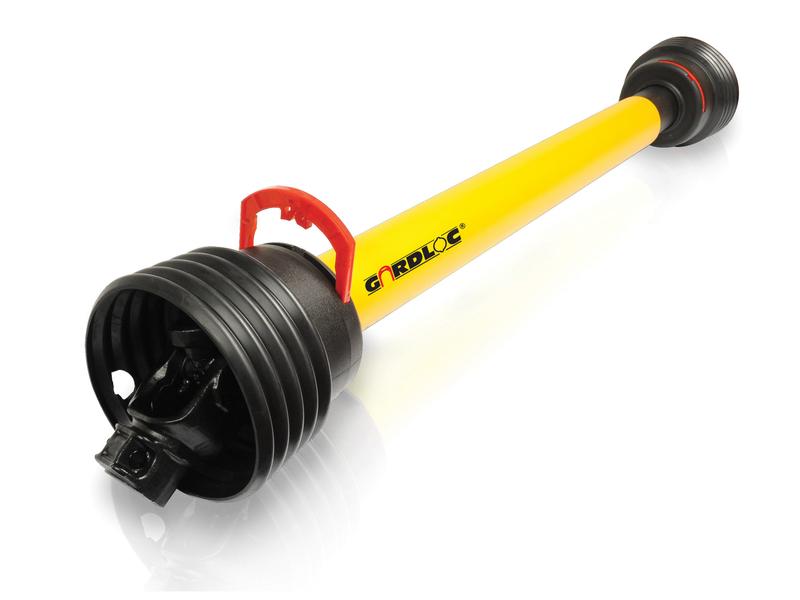

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128671

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128671

SKU:SP-S.128671

Regular price £99.93 GBP
Regular price £111.04 GBP Sale price £99.93 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 79 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128671

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is an excellent alternative to part number 164270.

Key Features:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 16 HP @ 540 RPM, 24 HP @ 1000 RPM
  • HP Rating Range: Up to 54 HP @ 540 RPM
  • Kilowatt Power Rating: 12 kW @ 540 RPM, 18 kW @ 1000 RPM
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Torque: 210-334 Nm
  • Total Closed Length: 743 mm
  • Lz Length: 560 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 22 x 54 mm
  • Italian Series: AB1/A1
  • PTO Series: AB1/A1
  • Replacement Guard: S.168310
  • Related Products: 166692
  • Tariff Code: 8483908990
  • Tube Reference: 12502/12503

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring optimal performance and longevity. Whether you are replacing an old shaft or upgrading your equipment, this product is designed to fit seamlessly into your setup.

For more information or to purchase, please refer to the Sparex part number: S.128671.

Additional Product Information

Product Specifications

Alternative to: 164270
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 16
HP Rating @ 1000RPM: 24
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB1/A1
Kilowatt Power Rating @ 540RPM: 12
Kilowatt Power Rating @ 1000RPM: 18
Lz Length (mm): 560
PTO Series: AB1/A1
Related products: 166692
Replacement Guard: S.168310
Tariff Code: 8483908990
Torque (Nm): 210
Torque: 210-334Nm
Total Closed Length (mm): 743
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12502/12503
Universal Joint Dimensions: 22 x 54mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 560mm, 1 3/8" x 6 Spline Q.R.

- **High-Performance GARDLOC PTO Shaft:** Engineered for durability and efficiency in agricultural applications.
- **Alternative to 164270:** A direct replacement for a popular PTO shaft part number.
- **Powerful and Versatile:** Rated up to 54 HP @ 540 RPM, suitable for a wide range of equipment.
- **Precise Fit:** Features 1 3/8'' x 6 Spline Q.R. on both the implement and tractor ends for a secure connection.
- **Durable Construction:** Triangle tube profile and robust universal joint dimensions ensure long-lasting performance.
