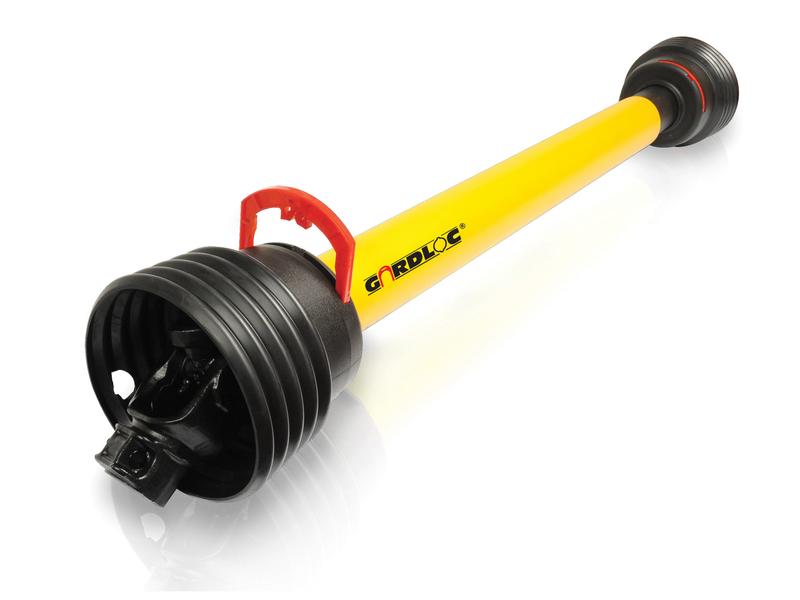

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128675

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128675

SKU:SP-S.128675

Regular price £107.68 GBP
Regular price £119.64 GBP Sale price £107.68 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 93 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128675

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is an excellent alternative to part number 164274.

Key Features:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 21 HP @ 540 RPM, 40 HP @ 1000 RPM
  • HP Rating Range: Up to 54 HP @ 540 RPM
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB2/A2
  • Kilowatt Power Rating: 15 kW @ 540 RPM, 30 kW @ 1000 RPM
  • Lz Length: 560 mm
  • PTO Series: AB2/A2
  • Torque: 210-334 Nm (270 Nm nominal)
  • Total Closed Length: 758 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 23.8 x 61.2 mm
  • Tube Reference: 12504/12505
  • Replacement Guard: S.168310
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring optimal performance and longevity. Whether you're replacing an old shaft or upgrading your equipment, this product is designed to fit seamlessly into your setup.

For more information or to purchase, please refer to the Sparex part number: S.128675.

Additional Product Information

Product Specifications

Alternative to: 164274
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 21
HP Rating @ 1000RPM: 40
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB2/A2
Kilowatt Power Rating @ 540RPM: 15
Kilowatt Power Rating @ 1000RPM: 30
Lz Length (mm): 560
PTO Series: AB2/A2
Related products: 166692
Replacement Guard: S.168310
Tariff Code: 8483908990
Torque (Nm): 270
Torque: 210-334Nm
Total Closed Length (mm): 758
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12504/12505
Universal Joint Dimensions: 23.8 x 61.2mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 560mm, 1 3/8" x 6 Spline Q.R.

- **High-Performance GARDLOC PTO Shaft:** Engineered for durability and efficiency in agricultural applications.
- **Reliable Alternative:** Replaces part number 164274, ensuring compatibility with existing equipment.
- **Powerful & Versatile:** Rated up to 54 HP @ 540 RPM, suitable for a wide range of implements.
- **Precise Fit:** Features 1 3/8'' x 6 Spline Q.R. on both implement and tractor ends for secure connection.
- **Durable Construction:** Triangle tube profile and robust universal joint dimensions for long-lasting performance.
