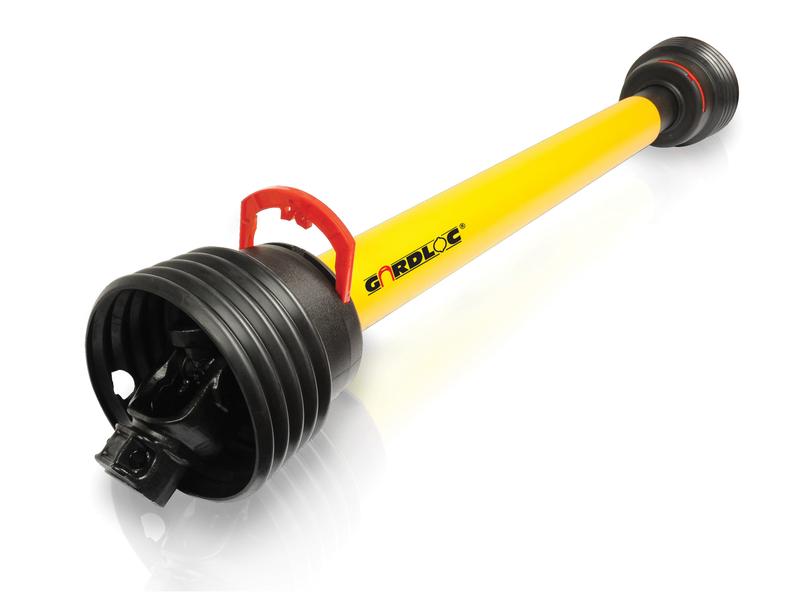

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128689

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128689

SKU:SP-S.128689

Regular price £167.83 GBP
Regular price £186.48 GBP Sale price £167.83 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 64 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128689

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is an excellent alternative to part number 164289.

Key Features:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 47 HP @ 540 RPM, 75 HP @ 1000 RPM
  • HP Rating Range @ 540 RPM: Up to 54 HP
  • Kilowatt Power Rating: 35 kW @ 540 RPM, 55 kW @ 1000 RPM
  • Lz Length: 560 mm
  • Total Closed Length: 782 mm
  • Torque: 335 - 1240 Nm (620 Nm nominal)
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 79.4 mm
  • Italian Series: AB5/A5
  • PTO Series: AB5/A5
  • Replacement Guard: S.168312
  • Related Products: 166692
  • Tariff Code: 8483908990
  • Tube Reference: 12509/12510

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring optimal performance and longevity. Whether you're replacing an old shaft or upgrading your equipment, this product is designed to fit seamlessly into your setup.

For more information or to purchase, please refer to the Sparex part number: S.128689.

Additional Product Information

Product Specifications

Alternative to: 164289
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 47
HP Rating @ 1000RPM: 75
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB5/A5
Kilowatt Power Rating @ 540RPM: 35
Kilowatt Power Rating @ 1000RPM: 55
Lz Length (mm): 560
PTO Series: AB5/A5
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 620
Torque: 335 - 1240Nm
Total Closed Length (mm): 782
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12510
Universal Joint Dimensions: 30.2 x 79.4mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 560mm, 1 3/8" x 6 Spline Q.R.

- **GARDLOC PTO Shaft** with 560mm length
- **High HP Rating:** 47 HP @ 540 RPM, 75 HP @ 1000 RPM
- **Durable Construction:** Triangle tube profile for strength
- **Universal Joint Dimensions:** 30.2 x 79.4 mm for compatibility
- **Sparex Part Number:** S.128689 for easy identification
