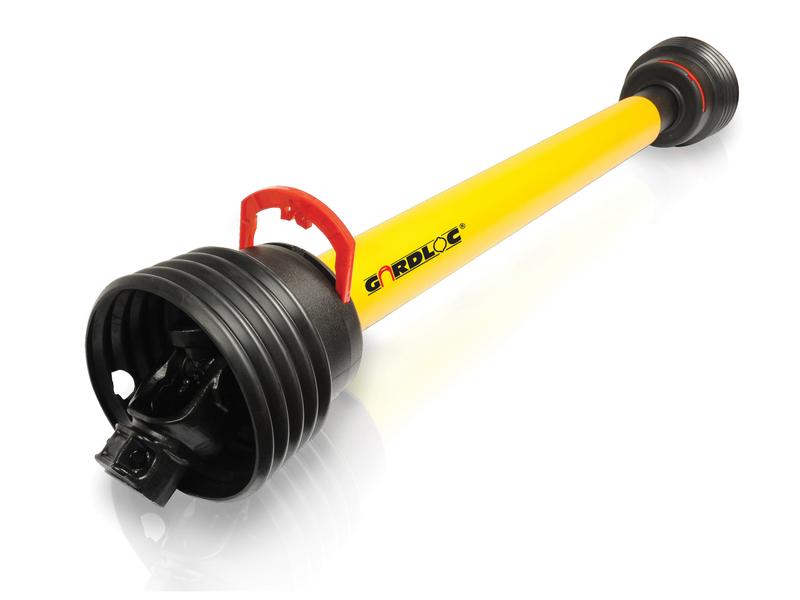

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128695

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128695

SKU:SP-S.128695

Regular price £185.72 GBP
Regular price £206.35 GBP Sale price £185.72 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 12 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 560mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 560mm and is equipped with 1 3/8'' x 6 Spline Q.R. connections on both ends, making it a versatile choice for various applications.

Key Specifications:

  • Alternative to: 164298
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 64 HP
  • HP Rating @ 1000RPM: 83 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540RPM: 47 kW
  • Kilowatt Power Rating @ 1000RPM: 61 kW
  • PTO Series: AB6/A6
  • Torque: 335 - 1240 Nm (830 Nm nominal)
  • Total Closed Length: 796 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 92 mm
  • Tube Ref: 12509/12512
  • Replacement Guard: S.168312
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is part of the renowned Italian Series: AB6/A6, ensuring high performance and reliability. Whether you are replacing an old shaft or upgrading your equipment, this product is designed to meet your needs.

For more information or to purchase, refer to the Sparex Part Number: S.128695. Please note that this product is not associated with any particular OEM part number or specific make or model.

Additional Product Information

Product Specifications

Alternative to: 164298
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 64
HP Rating @ 1000RPM: 83
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Kilowatt Power Rating @ 1000RPM: 61
Lz Length (mm): 560
PTO Series: AB6/A6
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (mm): 796
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 560mm, 1 3/8" x 6 Spline Q.R.

- **GARDLOC PTO Shaft** with 560mm length for optimal performance and durability.
- **1 3/8'' x 6 Spline Q.R.** connections on both ends for versatile applications.
- **High HP Rating:** 64 HP @ 540RPM and 83 HP @ 1000RPM.
- **Wide HP Rating Range:** 55 to 119 HP @ 540RPM.
- **Italian Series AB6/A6:** Ensures high performance and reliability.
