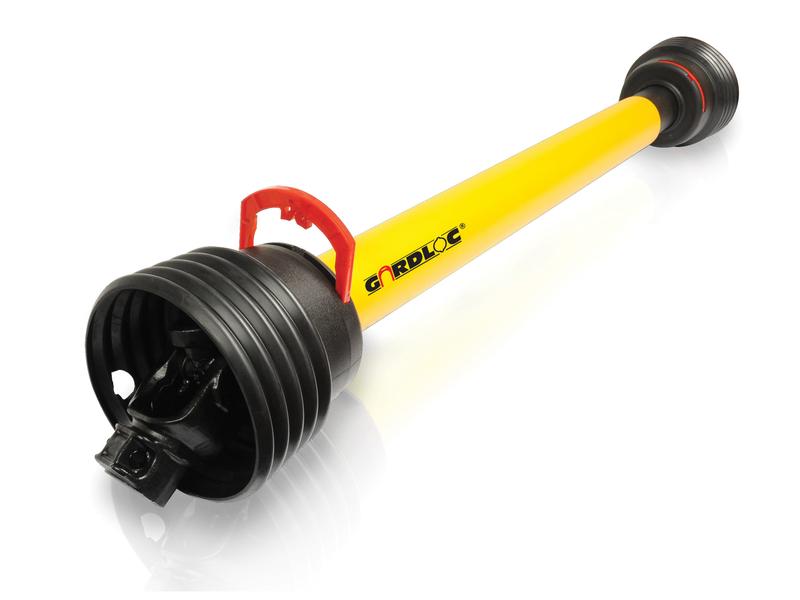

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128715

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128715

SKU:SP-S.128715

Regular price £133.16 GBP
Regular price £147.96 GBP Sale price £133.16 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

185 in stock

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 560mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for the German Series AW21/W2300, this PTO shaft is engineered to deliver exceptional power and efficiency.

  • Brand: GARDLOC
  • Alternative to: 39008, 164263
  • Guard Type: Gardloc
  • HP Rating: 35 HP @ 540 RPM, 53 HP @ 1000 RPM
  • HP Rating Range @ 540 RPM: Up to 54 HP
  • Kilowatt Power Rating: 26 kW @ 540 RPM, 53 kW @ 1000 RPM
  • Lz Length: 560 mm
  • Total Closed Length: 776 mm
  • Torque: 335 - 1240 Nm (780 Nm nominal)
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • PTO Series: AW21/W2300
  • Tube Profile: Lemon
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Tube Ref: 0v/1
  • Replacement Guard: S.168310
  • Related Products: 166692
  • Tariff Code: 8483908990

Whether you're replacing an old shaft or upgrading your equipment, the GARDLOC PTO Shaft is designed to meet your needs with precision and durability. Trust in GARDLOC for quality and performance in every application.

Additional Product Information

Product Specifications

Alternative to: 39008, 164263
Brand: GARDLOC
German Series: AW21/W2300
Guard Type: Gardloc
HP Rating @ 540RPM: 35
HP Rating @ 1000RPM: 53
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Kilowatt Power Rating @ 540RPM: 26
Kilowatt Power Rating @ 1000RPM: 53
Lz Length (mm): 560
PTO Series: AW21/W2300
Related products: 166692
Replacement Guard: S.168310
Tariff Code: 8483908990
Torque (Nm): 780
Torque: 335 - 1240Nm
Total Closed Length (mm): 776
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Lemon
Tube Ref: 0v/1
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 560mm, 1 3/8" x 6 Spline Q.R.

- **High-Performance GARDLOC PTO Shaft:** Designed for the German Series AW21/W2300, delivering exceptional power and efficiency.
- **Versatile Compatibility:** Alternative to popular part numbers 39008 and 164263, ensuring a seamless fit for various applications.
- **Powerful Performance:** Rated for 35 HP @ 540 RPM and 53 HP @ 1000 RPM, with a range of up to 54 HP @ 540 RPM.
- **Durable Construction:** Features a robust Gardloc guard type, ensuring long-lasting reliability and safety.
- **Precise Fit:** Equipped with 1 3/8'' x 6 Spline Q.R. on both the implement and tractor ends, guaranteeing a secure connection.
