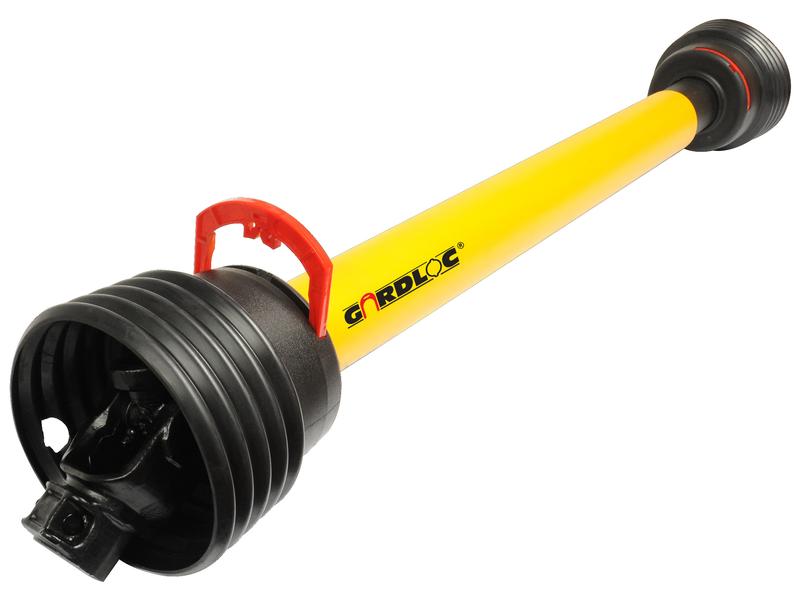

GARDLOC PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128705

GARDLOC PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128705

SKU:SP-S.128705

Regular price £246.24 GBP
Regular price £273.60 GBP Sale price £246.24 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 13 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128705

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is an excellent alternative to part number 164308.

Key Features:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 75 HP @ 540 RPM, 106 HP @ 1000 RPM
  • HP Rating Range: 55 to 119 HP @ 540 RPM
  • Kilowatt Power Rating: 55 kW @ 540 RPM, 78 kW @ 1000 RPM
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB7/A7
  • Torque: 970 Nm (335 - 1240 Nm)
  • Total Closed Length: 958 mm
  • Lz Length: 710 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30 x 106.5 mm
  • Tube Reference: 12511/12512
  • Replacement Guard: S.168312
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring optimal performance and longevity. With its robust construction and precise specifications, it is the perfect choice for enhancing your machinery's efficiency.

Upgrade your equipment with the GARDLOC PTO Shaft today and experience the difference in power and reliability!

Additional Product Information

Product Specifications

Alternative to: 164308
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 75
HP Rating @ 1000RPM: 106
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB7/A7
Kilowatt Power Rating @ 540RPM: 55
Kilowatt Power Rating @ 1000RPM: 78
Lz Length (mm): 710
PTO Series: AB7/A7
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 970
Torque: 335 - 1240Nm
Total Closed Length (mm): 958
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12511/12512
Universal Joint Dimensions: 30 x 106.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 710mm, 1 3/8" x 6 Spline Q.R.

- **High HP Rating:** 75 HP @ 540 RPM, 106 HP @ 1000 RPM
- **Wide HP Rating Range:** 55 to 119 HP @ 540 RPM
- **Durable Construction:** Gardloc guard type for reliable operation
- **Versatile Application:** Suitable for various agricultural machinery
- **Direct Replacement:** Alternative to part number 164308
