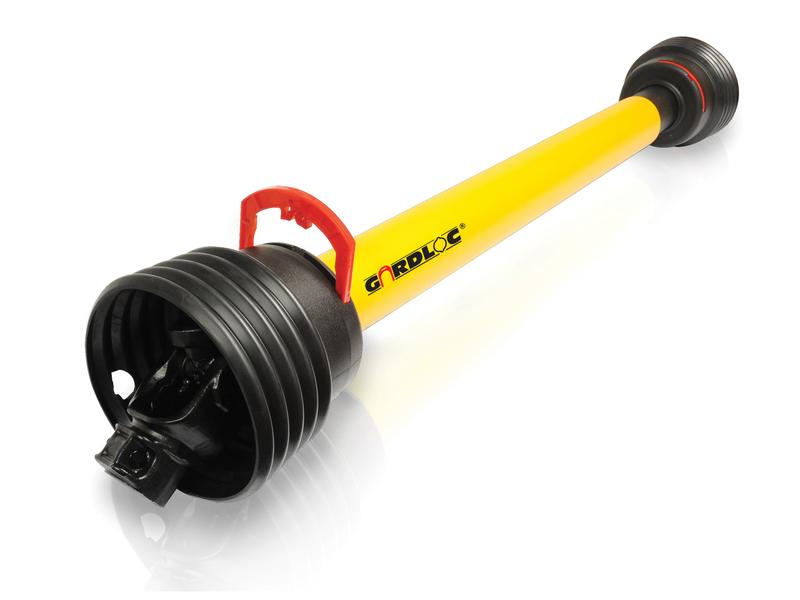

GARDLOC PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128718

GARDLOC PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128718

SKU:SP-S.128718

Regular price £182.04 GBP
Regular price £202.27 GBP Sale price £182.04 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 85 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128718

Introducing the GARDLOC PTO Shaft, a reliable and efficient solution for your agricultural needs. Designed for optimal performance, this PTO shaft is compatible with the German Series AW35/W2400 and features a robust Gardloc guard type.

Key Specifications:

  • Alternative to: 164266
  • Brand: GARDLOC
  • HP Rating @ 540RPM: 53 HP
  • HP Rating @ 1000RPM: 83 HP
  • HP Rating Range @ 540RPM: up to 54 HP
  • Kilowatt Power Rating @ 540RPM: 39 kW
  • Kilowatt Power Rating @ 1000RPM: 83 kW
  • Lz Length: 710 mm
  • Total Closed Length: 932 mm
  • Torque: 335 - 1240 Nm
  • Torque (Nm): 1240
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Universal Joint Dimensions: 32 x 76 mm
  • Tube Profile: Lemon
  • Tube Ref: 1b/2a
  • PTO Series: AW35/W2400
  • Related Products: 166692
  • Replacement Guard: S.168312
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is engineered for durability and high performance, making it an essential component for your machinery. Whether you're operating at 540 RPM or 1000 RPM, this shaft delivers the power you need to get the job done efficiently.

Upgrade your equipment with the GARDLOC PTO Shaft today and experience the difference in performance and reliability!

Additional Product Information

Product Specifications

Alternative to: 164266
Brand: GARDLOC
German Series: AW35/W2400
Guard Type: Gardloc
HP Rating @ 540RPM: 53
HP Rating @ 1000RPM: 83
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Kilowatt Power Rating @ 540RPM: 39
Kilowatt Power Rating @ 1000RPM: 83
Lz Length (mm): 710
PTO Series: AW35/W2400
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 1240
Torque: 335 - 1240Nm
Total Closed Length (mm): 932
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Lemon
Tube Ref: 1b/2a
Universal Joint Dimensions: 32 x 76mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 710mm, 1 3/8" x 6 Spline Q.R.

- **GARDLOC PTO Shaft** for reliable and efficient agricultural performance
- **German Series AW35/W2400** compatibility for a wide range of applications
- **Robust Gardloc guard type** for enhanced safety and durability
- **High HP Rating** of 53 HP @ 540 RPM and 83 HP @ 1000 RPM for powerful operation
- **710mm Lz Length** for optimal reach and flexibility
