Vendor: Sparex - SKU:

GARDLOC PTO Shaft - (Lz) Length: 730mm, 1 3/8'' x 6 Spline Q.R. to 35mm Pinhole Yoke | Sparex Part Number: S.128684

GARDLOC PTO Shaft - (Lz) Length: 730mm, 1 3/8'' x 6 Spline Q.R. to 35mm Pinhole Yoke | Sparex Part Number: S.128684

SKU:SP-S.128684

Regular price £133.78 GBP
Regular price £148.64 GBP Sale price £133.78 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 43 left

Quantity
Default Title

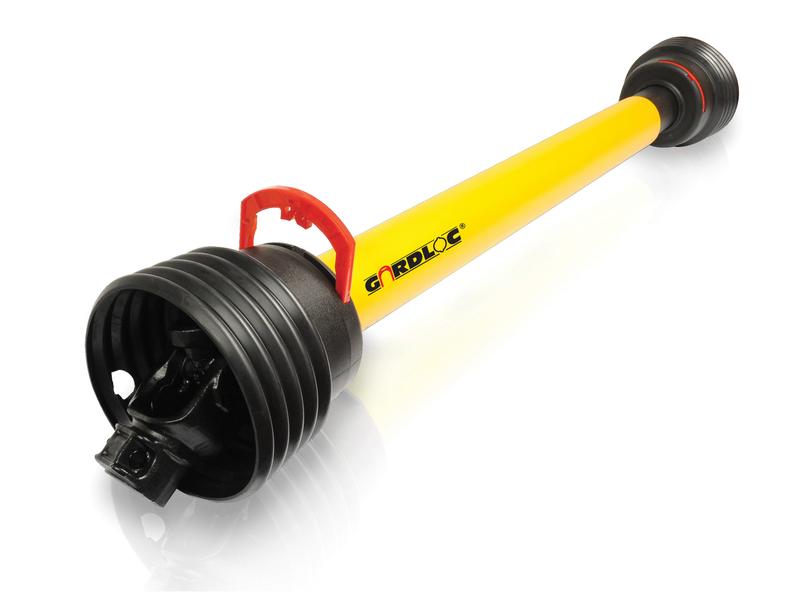

GARDLOC PTO Shaft - (Lz) Length: 730mm, 1 3/8'' x 6 Spline Q.R. to 35mm Pinhole Yoke

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is an excellent choice for various applications.

  • Alternative to: 61399
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 35 HP
  • HP Rating @ 1000RPM: 53 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Implement End: 35mm Pinhole Yoke
  • Italian Series: AB4/A4
  • Kilowatt Power Rating @ 540RPM: 26 kW
  • Kilowatt Power Rating @ 1000RPM: 39 kW
  • Lz Length: 730 mm
  • PTO Series: AB4/A4
  • Related Products: 166692
  • Replacement Guard: S.168310
  • Tariff Code: 8483908990
  • Torque (Nm): 460 Nm
  • Torque Range: 335 - 1240 Nm
  • Total Closed Length: 931 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Tube Reference: 12507/12508
  • Universal Joint Dimensions: 27 x 74.5 mm

With its robust construction and precise engineering, the GARDLOC PTO Shaft is designed to meet the demands of modern farming equipment. Whether you are replacing an old shaft or upgrading your machinery, this product ensures optimal performance and reliability.

Supplier: Sparex | Product Type: Shaft | SKU: SP-128684

Note: This product is not associated with any particular OEM part number or specific make or model.

Additional Product Information

Product Specifications

Alternative to: 61399
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 35
HP Rating @ 1000RPM: 53
HP Rating Range @ 540RPM: up to 54
Implement End: 35mm Pinhole Yoke
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Kilowatt Power Rating @ 1000RPM: 39
Lz Length (mm): 730
PTO Series: AB4/A4
Related products: 166692
Replacement Guard: S.168310
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 931
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 730mm, 1 3/8" x 6 Spline Q.R. to 35mm Yoke

- **GARDLOC PTO Shaft** with 730mm length for reliable agricultural applications.
- **High HP Rating:** 35 HP @ 540 RPM and 53 HP @ 1000 RPM.
- **Durable Construction:** Features a triangle tube profile and robust universal joint.
- **Versatile Compatibility:** Fits 1 3/8'' x 6 Spline Q.R. tractor ends and 35mm Pinhole Yoke implement ends.
- **Alternative to 61399:** Offers a direct replacement option for existing equipment.
