GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch | Sparex Part Number: S.128704

GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch | Sparex Part Number: S.128704

SKU:SP-S.128704

Regular price £300.24 GBP
Regular price £333.60 GBP Sale price £300.24 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 68 left

Quantity
Default Title

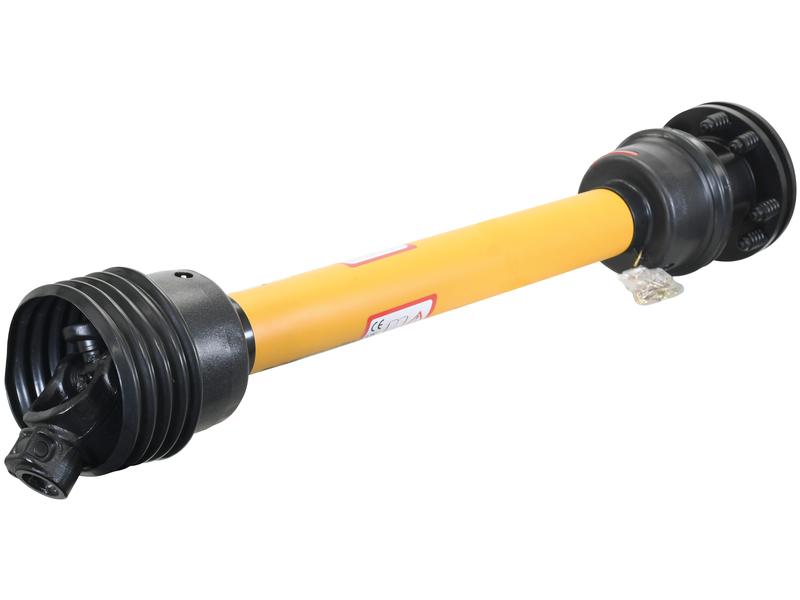

GARDLOC PTO Shaft - 860mm Length

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 860mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Friction Disc Clutch.

Key Specifications:

  • Brand: GARDLOC
  • Alternative to: 164305
  • Clutch Setting: 1300 Nm
  • Guard Type: Gardloc
  • HP Rating @ 540 RPM: 64 HP
  • HP Rating @ 1000 RPM: 83 HP
  • HP Rating Range @ 540 RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540 RPM: 47 kW
  • Kilowatt Power Rating @ 1000 RPM: 61 kW
  • Number of Discs: 2
  • PTO Series: AB6/A6
  • Torque: 335 - 1240 Nm
  • Total Closed Length: 1138 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 92 mm
  • Replacement Guard: S.168312
  • Tariff Code: 8483908990
  • Tube Reference: 12509/12512

This PTO shaft is part of the Italian Series: AB6/A6 and is engineered for reliability and efficiency. Whether you're replacing an old part or upgrading your equipment, the GARDLOC PTO Shaft is the perfect choice for your agricultural needs.

Supplier: Sparex | SKU: SP-128704

Additional Product Information

Product Specifications

Alternative to: 164305
Brand: GARDLOC
Clutch Setting Nm: 1300
Guard Type: Gardloc
HP Rating @ 540RPM: 64
HP Rating @ 1000RPM: 83
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Kilowatt Power Rating @ 1000RPM: 61
Lz Length (mm): 860
Number of Discs: 2
PTO Series: AB6/A6
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (mm): 1138
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
