Vendor: Sparex - SKU:

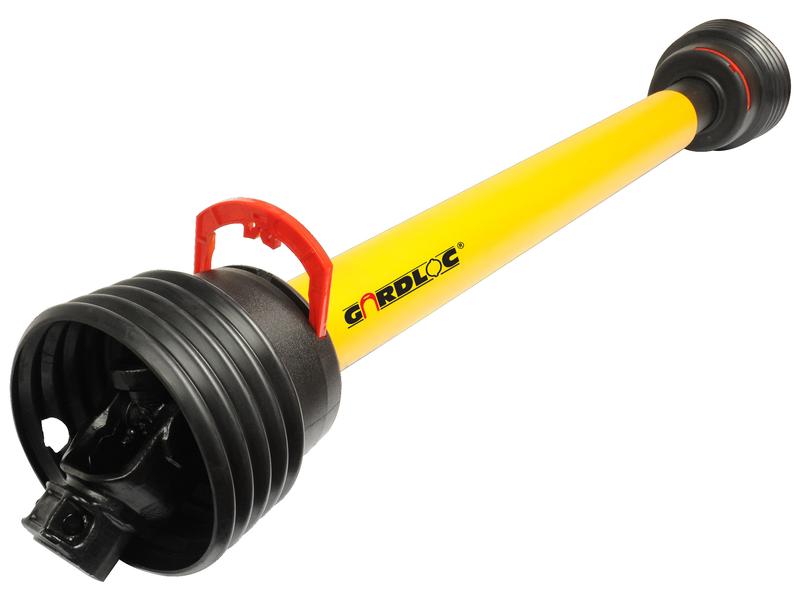

GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.110579

GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.110579

SKU:SP-S.110579

Regular price £145.39 GBP
Regular price £161.54 GBP Sale price £145.39 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 43 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.110579

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this shaft is an excellent alternative to part number 164275.

Key Features:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 21 HP
  • HP Rating @ 1000RPM: 40 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB2/A2
  • Kilowatt Power Rating @ 540RPM: 15 kW
  • Kilowatt Power Rating @ 1000RPM: 30 kW
  • Lz Length: 860 mm
  • PTO Series: AB2/A2
  • Torque: 210-334 Nm (270 Nm nominal)
  • Total Closed Length: 1058 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 23.8 x 61.2 mm

Additional Information:

  • Related Products: 166692
  • Replacement Guard: S.168310
  • Tariff Code: 8483908990
  • Tube Reference: 12504/12505

This GARDLOC PTO Shaft is engineered for optimal performance and is suitable for various applications. Enhance your machinery's efficiency with this top-quality shaft, designed to meet the demands of modern agricultural practices.

Additional Product Information

Product Specifications

Alternative to: 164275
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 21
HP Rating @ 1000RPM: 40
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB2/A2
Kilowatt Power Rating @ 540RPM: 15
Kilowatt Power Rating @ 1000RPM: 30
Lz Length (mm): 860
PTO Series: AB2/A2
Related products: 166692
Replacement Guard: S.168310
Tariff Code: 8483908990
Torque (Nm): 270
Torque: 210-334Nm
Total Closed Length (mm): 1058
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12504/12505
Universal Joint Dimensions: 23.8 x 61.2mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 860mm, 1 3/8" x 6 Spline Q.R.

- **High-Performance GARDLOC PTO Shaft:** Engineered for durability and efficiency.
- **860mm Length:** Provides flexibility for various applications.
- **1 3/8'' x 6 Spline Q.R. Ends:** Compatible with a wide range of implements and tractors.
- **Up to 54 HP Rating:** Handles demanding agricultural tasks.
- **Sparex Part Number S.110579:** Easy to identify and order.
