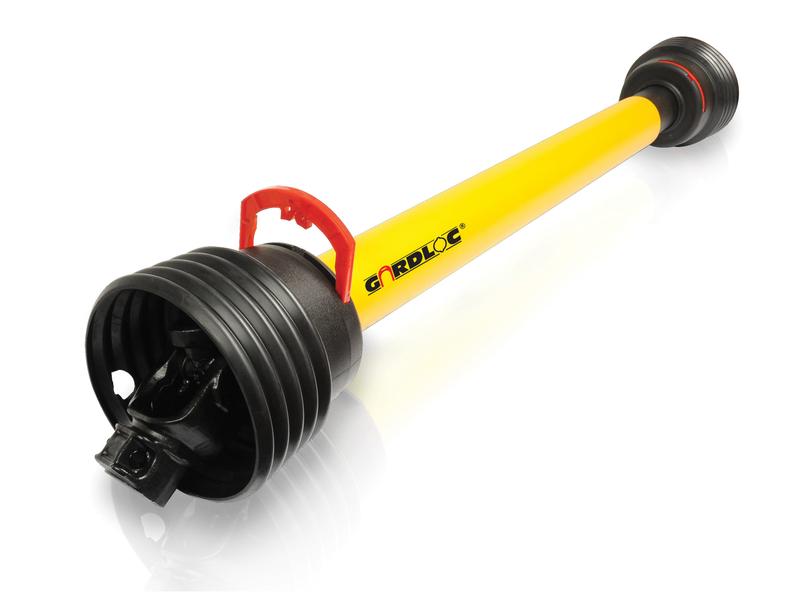

GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128690

GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128690

SKU:SP-S.128690

Regular price £187.81 GBP
Regular price £208.68 GBP Sale price £187.81 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 87 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128690

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is an excellent alternative to part number 164290.

Key Features:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 47 HP @ 540 RPM, 75 HP @ 1000 RPM
  • HP Rating Range: Up to 54 HP @ 540 RPM
  • Kilowatt Power Rating: 35 kW @ 540 RPM, 55 kW @ 1000 RPM
  • Lz Length: 860 mm
  • Total Closed Length: 1082 mm
  • Torque: 620 Nm (Range: 335 - 1240 Nm)
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 79.4 mm
  • Italian Series: AB5/A5
  • PTO Series: AB5/A5
  • Tube Reference: 12509/12510
  • Replacement Guard: S.168312
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring optimal performance and longevity. Whether you're replacing an old shaft or upgrading your equipment, this product is designed to fit seamlessly into your setup.

For more information or to purchase, please refer to the Sparex part number: S.128690.

Additional Product Information

Product Specifications

Alternative to: 164290
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 47
HP Rating @ 1000RPM: 75
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB5/A5
Kilowatt Power Rating @ 540RPM: 35
Kilowatt Power Rating @ 1000RPM: 55
Lz Length (mm): 860
PTO Series: AB5/A5
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 620
Torque: 335 - 1240Nm
Total Closed Length (mm): 1082
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12510
Universal Joint Dimensions: 30.2 x 79.4mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 860mm, 1 3/8" x 6 Spline Q.R.

- **High-Performance GARDLOC PTO Shaft:** Engineered for durability and efficiency in agricultural applications.
- **860mm Length:** Provides flexibility for various tractor and implement combinations.
- **1 3/8'' x 6 Spline Q.R. Ends:** Compatible with a wide range of tractors and implements.
- **High HP Rating:** Handles demanding tasks with up to 75 HP @ 1000 RPM.
- **Sparex Part Number S.128690:** Easily identifiable and readily available for replacement.
