GARDLOC PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.128694

GARDLOC PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.128694

SKU:SP-S.128694

Regular price £258.12 GBP
Regular price £286.80 GBP Sale price £258.12 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 32 left

Quantity
Default Title

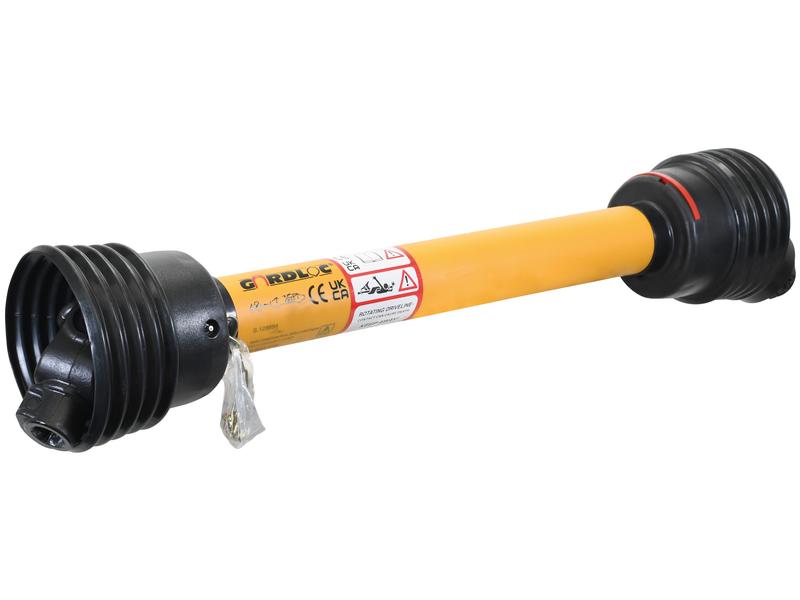

GARDLOC PTO Shaft - 880mm Length, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise)

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural machinery needs. Designed for efficiency and durability, this PTO shaft is an excellent alternative to part number 164291.

Product Specifications:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating @ 540RPM: 47 HP
  • HP Rating @ 1000RPM: 75 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Implement End: 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise)
  • Italian Series: AB5/A5
  • Kilowatt Power Rating @ 540RPM: 35 kW
  • Kilowatt Power Rating @ 1000RPM: 55 kW
  • Lz Length: 880 mm
  • PTO Series: AB5/A5
  • Related Products: 166692
  • Replacement Guard: S.168312
  • Tariff Code: 8483908990
  • Torque: 335 - 1240 Nm (620 Nm nominal)
  • Total Closed Length: 1151 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tractor PTO Rotation: Clockwise
  • Tube Profile: Triangle
  • Tube Reference: 12509/12510
  • Universal Joint Dimensions: 30.2 x 79.4 mm

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring optimal performance and longevity. With its robust construction and precise specifications, it is the perfect choice for enhancing your machinery's efficiency.

For more information or to purchase, please refer to the Sparex part number: S.128694.

Additional Product Information

Product Specifications

Alternative to: 164291
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 47
HP Rating @ 1000RPM: 75
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Overunning Clutch (Clockwise)
Italian Series: AB5/A5
Kilowatt Power Rating @ 540RPM: 35
Kilowatt Power Rating @ 1000RPM: 55
Lz Length (mm): 880
PTO Series: AB5/A5
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 620
Torque: 335 - 1240Nm
Total Closed Length (mm): 1151
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tractor PTO Rotation: Clockwise
Tube Profile: Triangle
Tube Ref: 12509/12510
Universal Joint Dimensions: 30.2 x 79.4mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 880mm, 1 3/8" x 6 Spline, Overrunning Clutch

- **High-Performance GARDLOC PTO Shaft:** Engineered for efficiency and durability in agricultural applications.
- **880mm Length:** Provides flexibility for various machinery setups.
- **1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise):** Compatible with a wide range of tractors and implements.
- **Up to 54 HP Rating @ 540RPM:** Handles demanding tasks with ease.
- **Alternative to Part Number 164291:** A reliable replacement option for existing equipment.
