Vendor: Sparex - SKU:

GARDLOC PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.128688

GARDLOC PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.128688

SKU:SP-S.128688

Regular price £183.93 GBP
Regular price £204.37 GBP Sale price £183.93 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

103 in stock

Quantity
Default Title

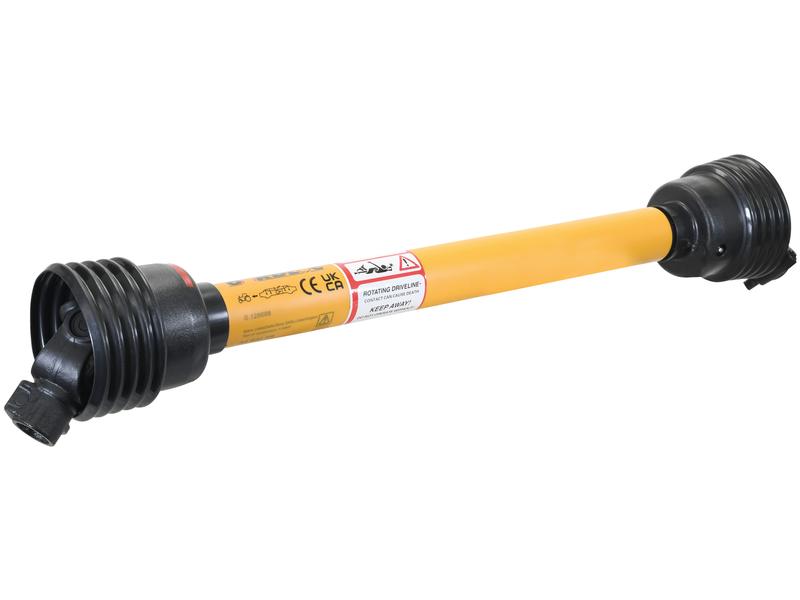

GARDLOC PTO Shaft - (Lz) Length: 880mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 880mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Features:

  • Alternative to: 164285
  • Brand: GARDLOC
  • Clutch Setting: 1600 Nm
  • Guard Type: Gardloc
  • HP Rating @ 540 RPM: 35 HP
  • HP Rating @ 1000 RPM: 53 HP
  • HP Rating Range @ 540 RPM: up to 54 HP
  • Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
  • Italian Series: AB4/A4
  • Kilowatt Power Rating @ 540 RPM: 26 kW
  • Kilowatt Power Rating @ 1000 RPM: 39 kW
  • Total Closed Length: 1095 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Torque: 335 - 1240 Nm
  • Torque (Nm): 460
  • Shearbolt Clutch Bolt Ø: 8 mm
  • Shearbolt Clutch Radius: 55 mm
  • Tube Ref: 12507/12508
  • Replacement Guard: S.168310
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is an essential component for your agricultural machinery, ensuring reliable power transfer and efficiency. With its robust design and compatibility with the Italian Series AB4/A4, it is the perfect choice for your needs.

Supplier: Sparex | SKU: SP-128688

Additional Product Information

Product Specifications

Alternative to: 164285
Brand: GARDLOC
Clutch Setting Nm: 1600
Guard Type: Gardloc
HP Rating @ 540RPM: 35
HP Rating @ 1000RPM: 53
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Kilowatt Power Rating @ 1000RPM: 39
Lz Length (mm): 880
PTO Series: AB4/A4
Related products: 166692
Replacement Guard: S.168310
Shearbolt Clutch Bolt Ø mm: 8
Shearbolt Clutch Radius mm: 55
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1095
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 880mm, 1 3/8" x 6 Spline, S.128688

- **GARDLOC PTO Shaft with 880mm Length:** Ideal for various agricultural applications.
- **High HP Rating:** Handles up to 54 HP at 540 RPM and 53 HP at 1000 RPM.
- **Durable Construction:** Features a triangle tube profile and robust universal joint dimensions.
- **Shear Bolt Limiter:** Provides overload protection for your equipment.
- **Compatible with Italian Series AB4/A4:** Ensures seamless integration with your existing machinery.
