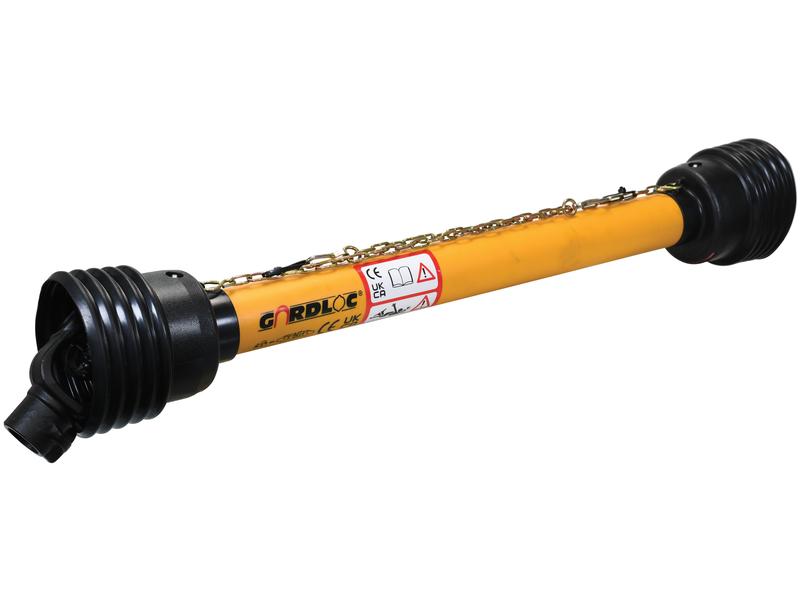

GARDLOC PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 35mm Pinhole Yoke | Sparex Part Number: S.128685

GARDLOC PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 35mm Pinhole Yoke | Sparex Part Number: S.128685

SKU:SP-S.128685

Regular price £140.12 GBP
Regular price £155.69 GBP Sale price £140.12 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 44 left

Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 35mm Pinhole Yoke

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for efficiency and durability, this PTO shaft is an excellent alternative to part number 61400.

Key Features:

  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 35 HP @ 540 RPM, 53 HP @ 1000 RPM
  • HP Rating Range: Up to 54 HP @ 540 RPM
  • Kilowatt Power Rating: 26 kW @ 540 RPM, 39 kW @ 1000 RPM
  • Implement End: 35mm Pinhole Yoke
  • PTO Series: AB4/A4
  • Torque: 460 Nm (335 - 1240 Nm)
  • Total Closed Length: 1081 mm
  • Lz Length: 880 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Tube Ref: 12507/12508
  • Replacement Guard: S.168310
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring optimal performance and longevity. With its robust construction and precise specifications, it is the perfect choice for enhancing your machinery's efficiency.

For more information or to purchase, please refer to the Sparex part number: S.128685.

Additional Product Information

Product Specifications

Alternative to: 61400
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 35
HP Rating @ 1000RPM: 53
HP Rating Range @ 540RPM: up to 54
Implement End: 35mm Pinhole Yoke
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Kilowatt Power Rating @ 1000RPM: 39
Lz Length (mm): 880
PTO Series: AB4/A4
Related products: 166692
Replacement Guard: S.168310
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1081
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 880mm, 1 3/8" x 6 Spline Q.R. to 35mm Yoke

- **High HP Rating:** 35 HP @ 540 RPM, 53 HP @ 1000 RPM, up to 54 HP @ 540 RPM
- **Durable Construction:** GARDLOC brand, Triangle tube profile, AB4/A4 PTO Series
- **Versatile Implement End:** 35mm Pinhole Yoke for compatibility with various implements
- **Precise Length:** 880mm (Lz) and 1081mm (Total Closed Length) for optimal fit
- **Sparex Part Number:** S.128685 for easy identification and ordering
