Vendor: Sparex - SKU:

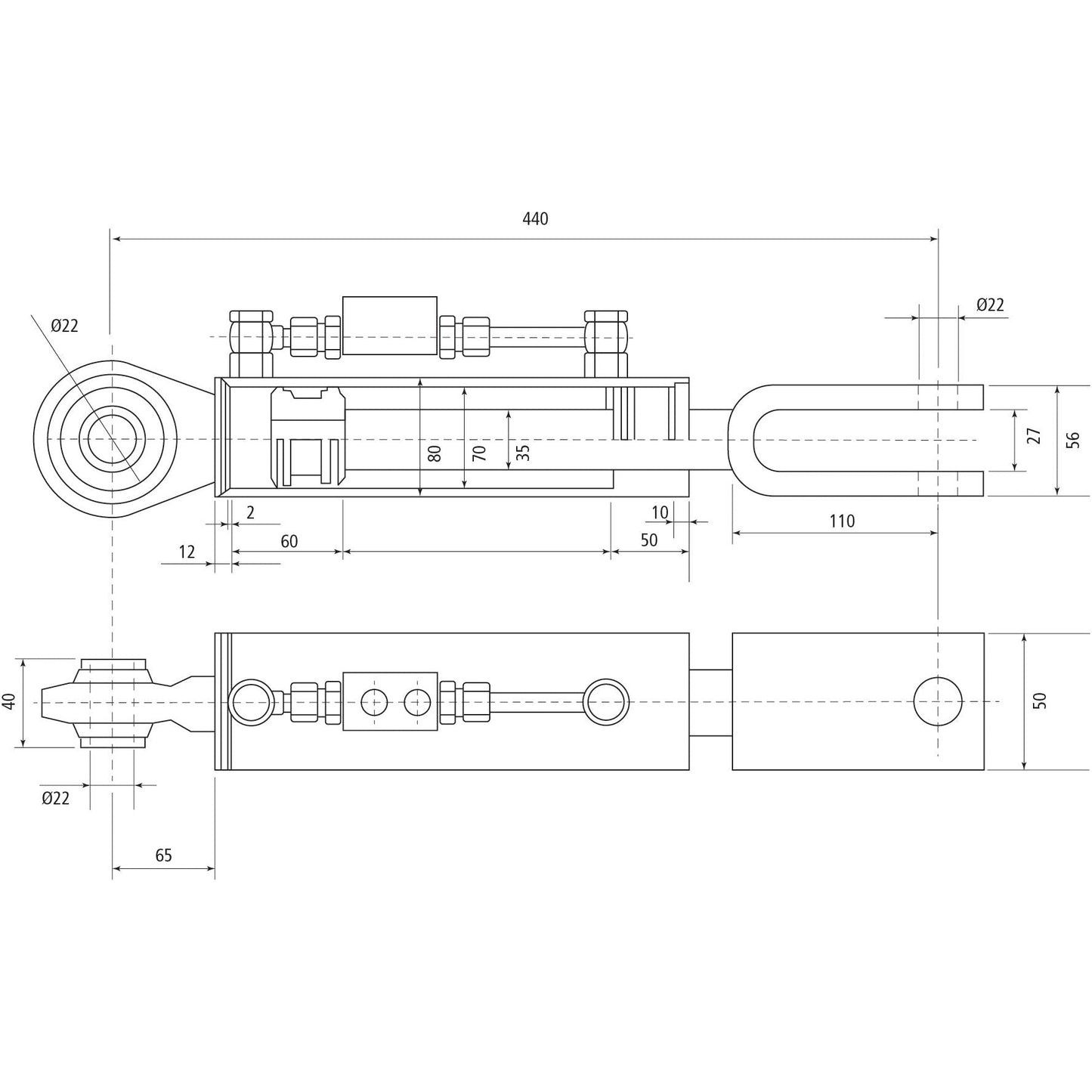

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 22mm - Min. Length: 440mm, Cylinder Bore: 70mm. | Sparex Part No.S.153733

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 22mm - Min. Length: 440mm, Cylinder Bore: 70mm. | Sparex Part No.S.153733

SKU:SP-S.153733

Regular price £378.00 GBP
Regular price £420.00 GBP Sale price £378.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 16 left

Quantity
Default Title

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 22mm - Min. Length: 440mm, Cylinder Bore: 70mm. | Sparex Part No.S.153733

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for use with a variety of Kubota models. It features a minimum length of 440mm and a maximum length of 540mm, with an internal width of 27mm and an external width of 56mm. This box is supplied with hoses for easy installation.

Product Specifications

  • Brand: Sparex
  • Check Valve Position: Top
  • Cylinder Bore (mm): 70
  • End Fittings A: Ball Ø 22mm
  • End Fittings B: Fork Hole Ø 22mm
  • Maximum Length (mm): 540
  • Minimum Length (mm): 440
  • Related products: 33137, 33144
  • Rod Ø (mm): 35
  • Supplied with: Hoses
  • Tariff Code: 8412212090
  • Width External (mm): 56
  • Width External ins: 2 13/64
  • Width Internal (mm): 27
  • Width Internal ins: 1 1/16

Suitable For

This Sparex Hydraulic Levelling Box is compatible with the following Kubota models:

  • M5071N
  • M5091N
  • M5101N
  • M6040 DTN
  • M7040 DTN
  • M7040 DTN-Q
  • M8540 DTN
  • M8540 DTN-Q
  • M8540N
  • M9540 DTN-Q
  • M9540N

Manufacture Information

This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

Brand: Sparex
Check Valve Position: Top
Cylinder Bore (mm): 70
End Fittings A: Ball Ø 22mm
End Fittings B: Fork Hole Ø 22mm
erp_hazardous: No
Maximum Length (mm): 540
Minimum Length (mm): 440
Related products: 33137, 33144
Rod Ø (mm): 35
Supplied with: Hoses
Tariff Code:8412212090
Width External (mm): 56
Width External ins: 2 13/64
Width Internal (mm): 27
Width Internal ins: 1 1/16

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

Kubota
M5071N, M5091N, M5101N, M6040 DTN, M7040 DTN, M7040 DTN-Q, M8540 DTN, M8540 DTN-Q, M8540N, M9540 DTN-Q, M9540N

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Levelling Box, 22mm Ball, 440mm Min. Length - S.153733

- **High-Quality Sparex Hydraulic Levelling Box:** Designed for durability and reliability.
- **Compatible with Multiple Kubota Models:** Fits M5071N, M5091N, M5101N, M6040 DTN, M7040 DTN, M7040 DTN-Q, M8540 DTN, M8540 DTN-Q, M8540N, M9540 DTN-Q, M9540N.
- **Adjustable Length:** Minimum length of 440mm and maximum length of 540mm for precise adjustments.
- **Includes Hoses for Easy Installation:** Convenient and ready to use.
- **Durable Construction:** Features a 70mm cylinder bore and 35mm rod diameter for strength and longevity.
