Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 22mm - Min. Length: 480mm, Cylinder Bore: 70mm. | Sparex Part No.S.153731

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 22mm - Min. Length: 480mm, Cylinder Bore: 70mm. | Sparex Part No.S.153731

SKU:SP-S.153731

Regular price £410.40 GBP
Regular price £456.00 GBP Sale price £410.40 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 9 left

Quantity
Default Title

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 22mm - Min. Length: 480mm, Cylinder Bore: 70mm. | Sparex Part No.S.153731

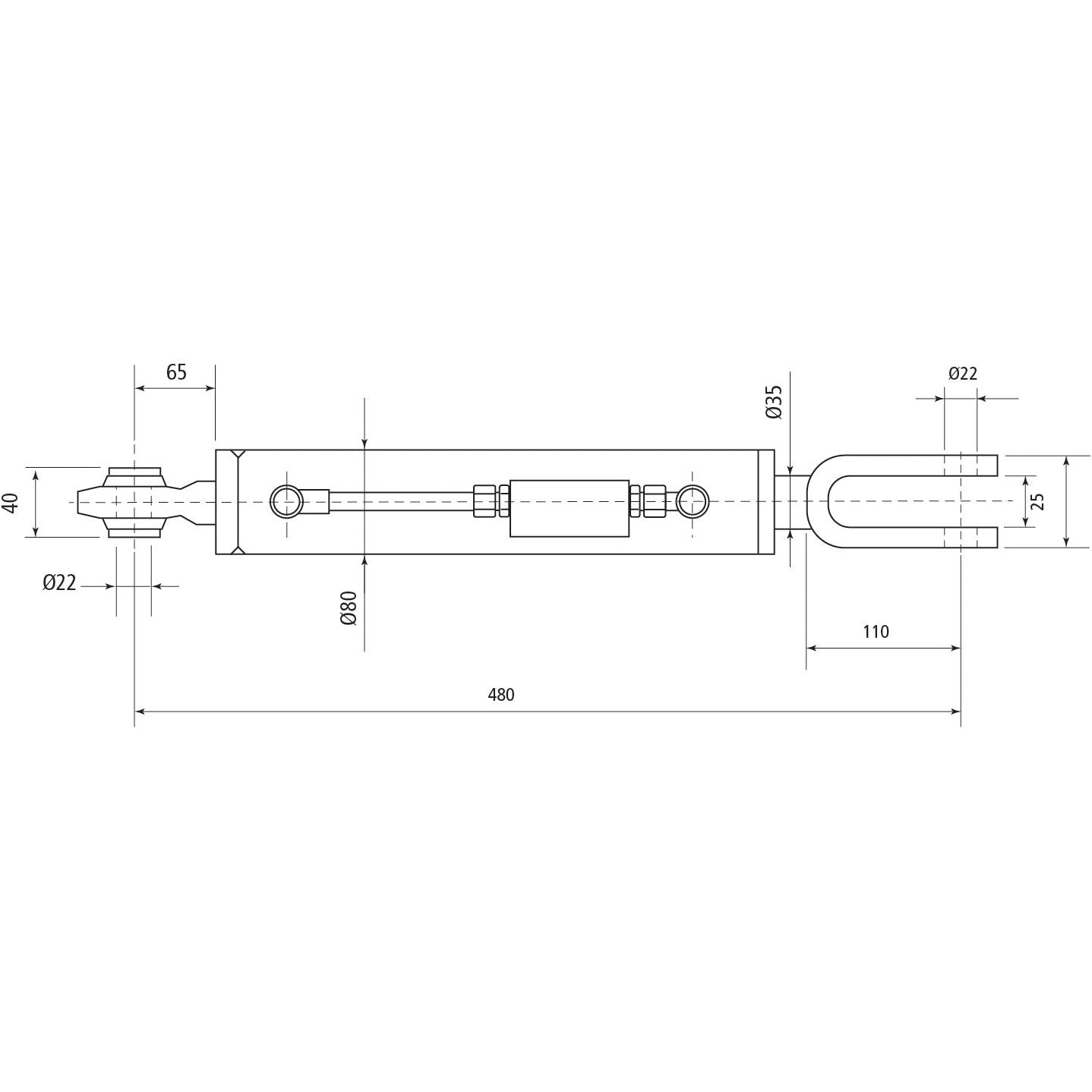

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for use with Kubota tractors. It features a ball end fitting with a diameter of 22mm and a fork hole end fitting with a diameter of 22mm. The minimum length of the box is 480mm, and the cylinder bore is 70mm. It comes supplied with hoses for easy installation.

Key Features:

  • Brand: Sparex
  • Check Valve Position: Top
  • Cylinder Bore (mm): 70
  • End Fittings A: Ball Ø 22mm
  • End Fittings B: Fork Hole Ø 22mm
  • Maximum Length (mm): 600
  • Minimum Length (mm): 480
  • Rod Ø (mm): 35
  • Supplied with: Hoses
  • Width External (mm): 50
  • Width Internal (mm): 25

Suitable For:

  • Kubota M6060 DTH
  • Kubota M6060 DTH-Q
  • Kubota M7060 DTH
  • Kubota M7060 DTH-Q
  • Kubota M9540

This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

Brand: Sparex
Check Valve Position: Top
Cylinder Bore (mm): 70
End Fittings A: Ball Ø 22mm
End Fittings B: Fork Hole Ø 22mm
erp_hazardous: No
Maximum Length (mm): 600
Minimum Length (mm): 480
Related products: 33137, 33144
Rod Ø (mm): 35
Supplied with: Hoses
Tariff Code:8412212090
Width External (mm): 50
Width External ins: 2
Width Internal (mm): 25
Width Internal ins: 1

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

Kubota
M6060 DTH, M6060 DTH-Q, M7060 DTH, M7060 DTH-Q, M9540

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Levelling Box, 22mm Ball, 70mm Bore, Sparex S.153731

- **Sparex Hydraulic Levelling Box:** High-quality replacement part for Kubota tractors.
- **Ball Ø 22mm & Fork Hole Ø 22mm End Fittings:** Ensures compatibility with various tractor models.
- **Cylinder Bore: 70mm:** Provides optimal hydraulic performance.
- **Minimum Length: 480mm, Maximum Length: 600mm:** Adjustable to fit different applications.
- **Supplied with Hoses:** For easy and convenient installation.
