Hydraulic Levelling Box (Supplied with: Hoses) - Fork Hole Ø 19mm - Fork Hole Ø 22x48mm - Min. Length: 490mm, Cylinder Bore: 70mm. | Sparex Part No.S.113928

Hydraulic Levelling Box (Supplied with: Hoses) - Fork Hole Ø 19mm - Fork Hole Ø 22x48mm - Min. Length: 490mm, Cylinder Bore: 70mm. | Sparex Part No.S.113928

SKU:SP-S.113928

Regular price £246.24 GBP
Regular price £273.60 GBP Sale price £246.24 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 20 left

Quantity
Default Title

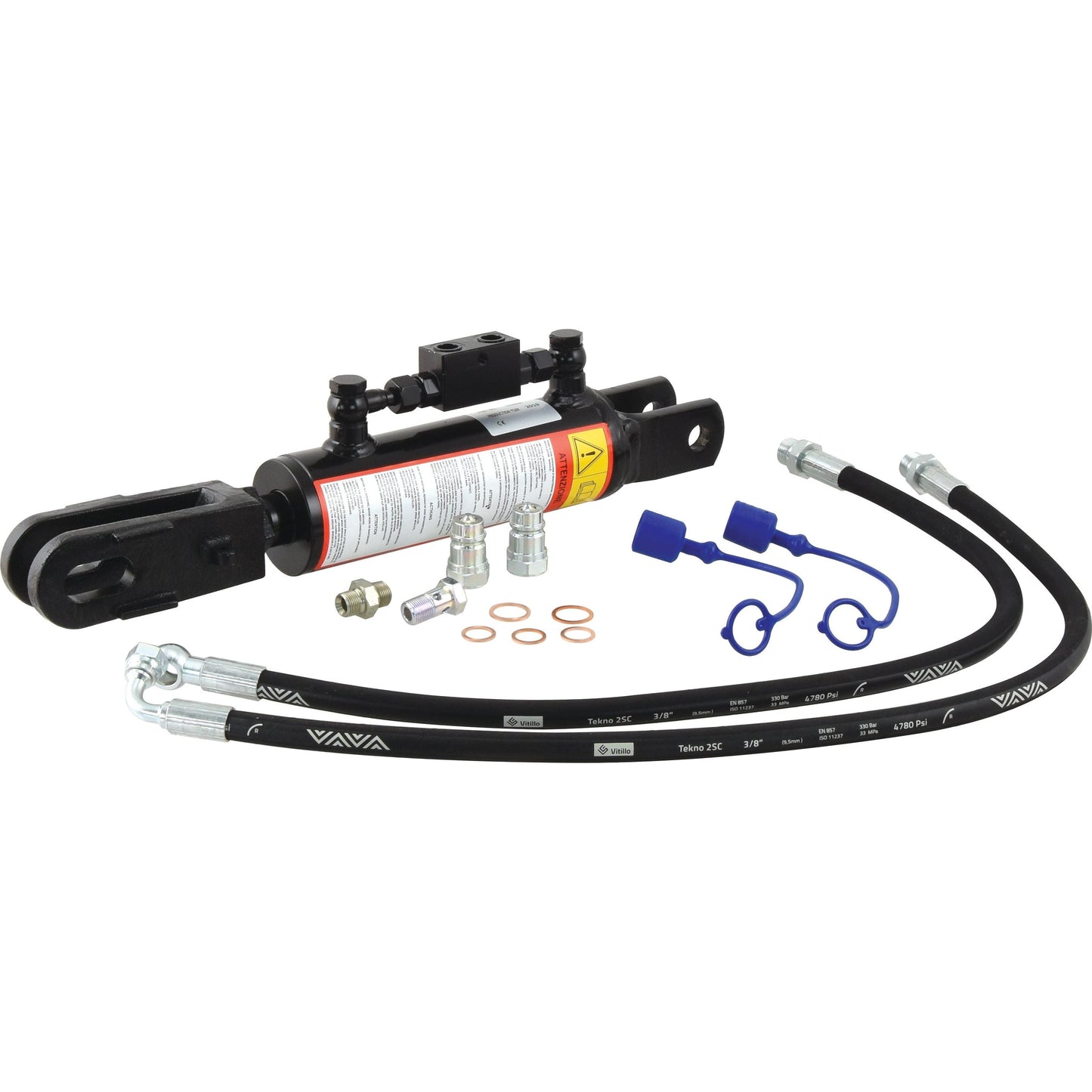

Hydraulic Levelling Box - Supplied with Hoses

Enhance your agricultural machinery with the Hydraulic Levelling Box from Sparex. Designed for optimal performance, this hydraulic leveler features a minimum length of 490mm and a maximum length of 628mm. The internal widths measure 40mm at the top and 28mm at the bottom, while the external widths are 64mm at the top and 52mm at the bottom.

Product Specifications
  • Brand: Sparex
  • Check Valve Position: Top
  • Cylinder Bore: 70mm
  • End Fittings A: Fork Hole Ø 19mm
  • End Fittings B: Fork Hole Ø 22x48mm
  • Maximum Length: 628mm
  • Minimum Length: 490mm
  • Related Products: 33137, 33144
  • Rod Diameter: 35mm
  • Supplied with: Hoses
  • Tariff Code: 8412212090
  • Width External: 64mm Top & 52mm Bottom
  • Width Internal: 40mm Top & 28mm Bottom
Compatibility Information

This hydraulic levelling box is suitable for:

Manufacturer Information

Compatible with the following OEM part numbers:

Upgrade your machinery with the reliable and efficient Hydraulic Levelling Box from Sparex, ensuring smooth operation and enhanced performance in your agricultural tasks.

Additional Product Information

Product Specifications

Brand: Sparex
Check Valve Position: Top
Cylinder Bore (mm): 70
End Fittings A: Fork Hole Ø 19mm
End Fittings B: Fork Hole Ø 22x48mm
Maximum Length (mm): 628
Minimum Length (mm): 490
Related products: 33137, 33144
Rod Ø (mm): 35
Supplied with: Hoses
Tariff Code: 8412212090
Width External (mm): 64 Top & 52 Bottom
Width External ins: 2 33/64 Top & 2 3/64 Bottom
Width Internal (mm): 40 Top & 28 Bottom
Width Internal ins: 1 37/64 Top & 1 7/64 Bottom

OEM Manufacture Information

Ford / New Holland
47385644, 84497524, 84497531

Suitable For Information

Case IH / International Harvester
FARMALL 55C, FARMALL 65C, FARMALL 75C
Ford / New Holland
T4.55 - POWERSTAR, T4.65 - POWERSTAR, T4.75 - POWERSTAR

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Levelling Box - Fork Holes 19mm & 22x48mm - Sparex S.113928

- **Hydraulic Levelling Box with Hoses:** Ensures smooth operation and enhanced performance in agricultural tasks.
- **Sparex Brand:** Known for quality and reliability in agricultural parts.
- **Compatible with Ford/New Holland and Case IH/International Harvester Tractors:** Fits a wide range of popular models.
- **Adjustable Length:** Minimum 490mm, Maximum 628mm, providing flexibility for various applications.
- **Supplied with Hoses:** Ready to install, saving time and effort.
