Vendor: Sparex - SKU:

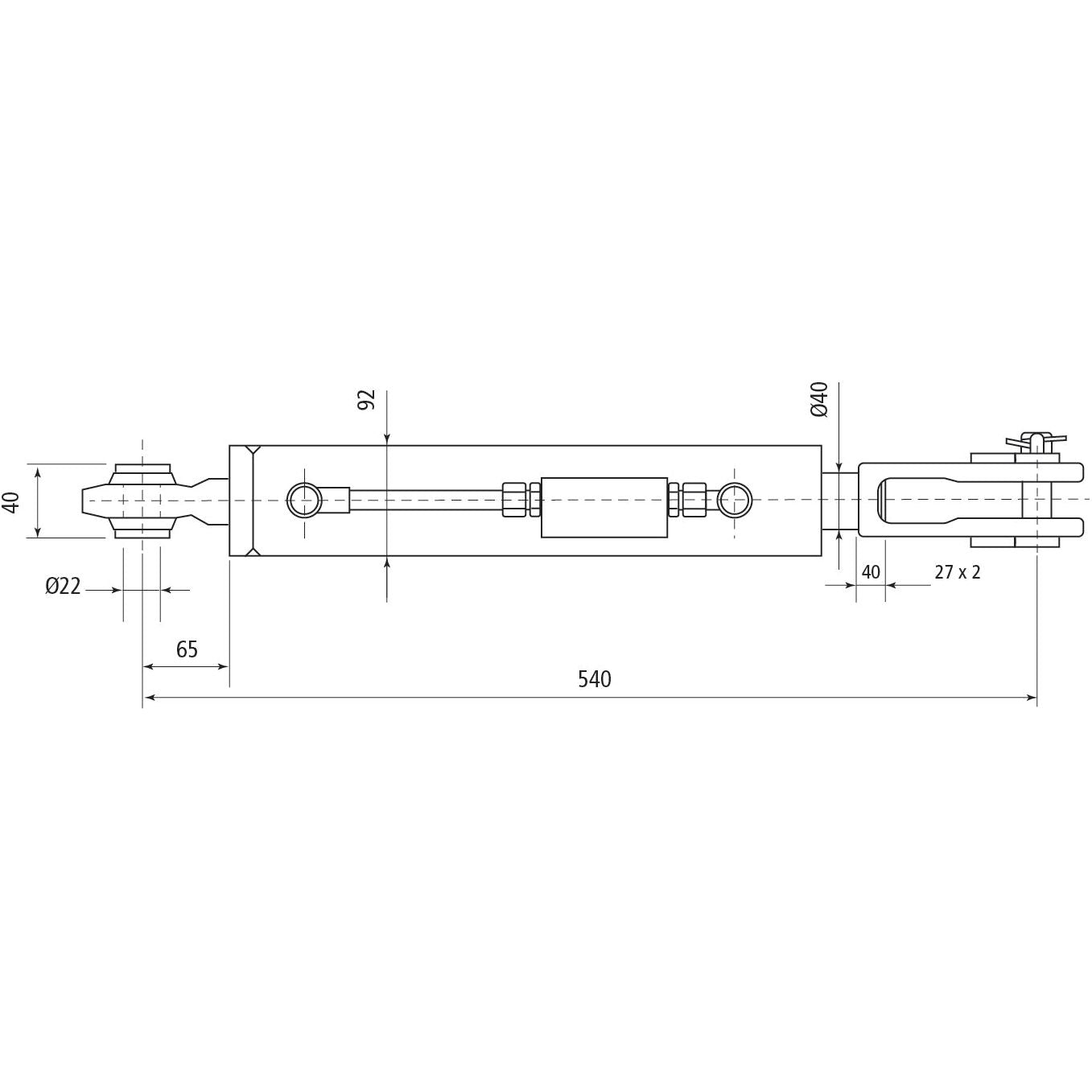

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 23x50mm - Min. Length: 540mm, Cylinder Bore: 80mm. | Sparex Part No.S.153732

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 23x50mm - Min. Length: 540mm, Cylinder Bore: 80mm. | Sparex Part No.S.153732

SKU:SP-S.153732

Regular price £420.12 GBP
Regular price £466.80 GBP Sale price £420.12 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 27 left

Quantity
Default Title

Sparex Hydraulic Levelling Box - S.153732

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for use with Kubota tractors. It features a ball end fitting with a diameter of 22mm and a fork hole end fitting with dimensions of 23x50mm. The minimum length of the box is 540mm, and it has a cylinder bore of 80mm.

Key Features:

  • Brand: Sparex
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • End Fittings A: Ball Ø 22mm
  • End Fittings B: Fork Hole Ø 23x50mm
  • Maximum Length (mm): 650
  • Minimum Length (mm): 540
  • Rod Ø (mm): 40
  • Supplied with: Hoses
  • Width External (mm): 59
  • Width Internal (mm): 28

Suitable For:

  • Kubota M5091
  • Kubota M5111
  • Kubota M8560
  • Kubota M9960

This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

Brand: Sparex
Check Valve Position: Top
Cylinder Bore (mm): 80
End Fittings A: Ball Ø 22mm
End Fittings B: Fork Hole Ø 23x50mm
erp_hazardous: No
Maximum Length (mm): 650
Minimum Length (mm): 540
Related products: 33137, 33144
Rod Ø (mm): 40
Supplied with: Hoses
Tariff Code:8412212090
Width External (mm): 59
Width External ins: 2 21/64
Width Internal (mm): 28
Width Internal ins: 1 7/64

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

Kubota
M5091, M5111, M8560, M9960

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Levelling Box - 22mm Ball, 80mm Bore - S.153732

- **High-Quality Sparex Hydraulic Levelling Box:** Designed for durability and reliability.
- **Kubota Tractor Compatibility:** Fits Kubota M5091, M5111, M8560, and M9960 models.
- **Precise Dimensions:** Ball Ø 22mm, Fork Hole Ø 23x50mm, Min. Length: 540mm, Cylinder Bore: 80mm.
- **Convenient Hoses Included:** Ready to install with no additional parts needed.
- **Adjustable Length:** Extends from 540mm to 650mm for versatile applications.
