Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 23x50mm - Min. Length: 680mm, Cylinder Bore: 80mm. | Sparex Part No.S.155245

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 23x50mm - Min. Length: 680mm, Cylinder Bore: 80mm. | Sparex Part No.S.155245

SKU:SP-S.155245

Regular price £501.12 GBP
Regular price £556.80 GBP Sale price £501.12 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 19 left

Quantity
Default Title

Sparex Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 22mm - Fork Hole Ø 23x50mm - Min. Length: 680mm, Cylinder Bore: 80mm. | Sparex Part No.S.155245

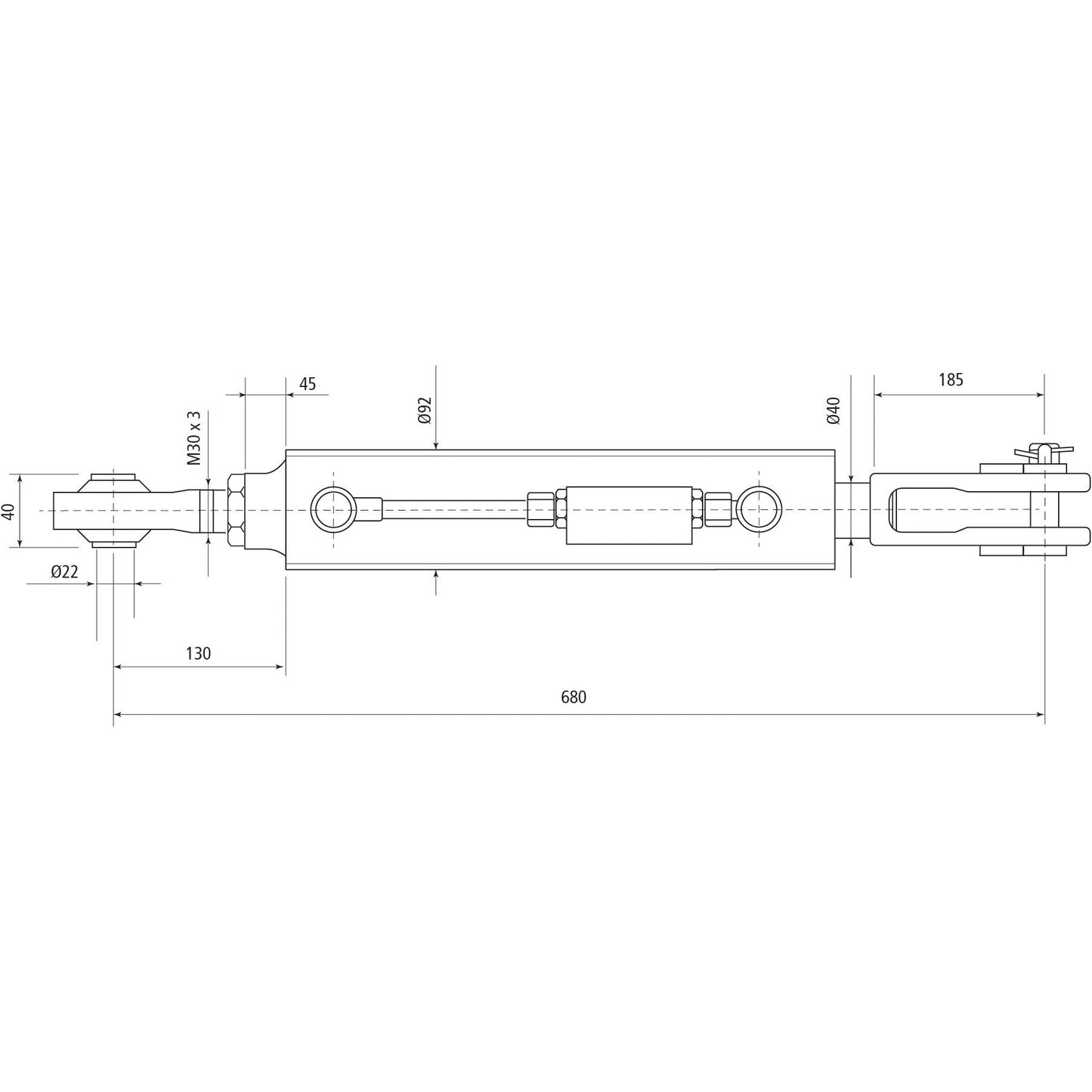

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for use with a variety of Kubota tractors. It features a ball end fitting with a diameter of 22mm and a fork hole end fitting with a diameter of 23x50mm. The minimum length of the box is 680mm, and the maximum length is 800mm. The internal width is 33mm, and the external width is 70mm. This box is supplied with hoses for easy installation.

Product Specifications

  • Brand: Sparex
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • End Fittings A: Ball Ø 22mm
  • End Fittings B: Fork Hole Ø 23x50mm
  • Maximum Length (mm): 800
  • Minimum Length (mm): 680
  • Related products: 33137, 33144
  • Rod Ø (mm): 40
  • Supplied with: Hoses
  • Tariff Code: 8412212090
  • Width External (mm): 70
  • Width External ins: 2 3/4
  • Width Internal (mm): 33
  • Width Internal ins: 1 19/64

Suitable For

This Sparex Hydraulic Levelling Box is suitable for the following Kubota tractor models:

  • M100GX
  • M105GX-III
  • M110GX
  • M115GX-III
  • M125GX-III
  • M128GX
  • M130GX
  • M135GX
  • M135GX-III
  • M95GX-III

Manufacture Information

This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

Brand: Sparex
Check Valve Position: Top
Cylinder Bore (mm): 80
End Fittings A: Ball Ø 22mm
End Fittings B: Fork Hole Ø 23x50mm
Maximum Length (mm): 800
Minimum Length (mm): 680
Related products: 33137, 33144
Rod Ø (mm): 40
Supplied with: Hoses
Tariff Code: 8412212090
Width External (mm): 70
Width External ins: 2 3/4
Width Internal (mm): 33
Width Internal ins: 1 19/64

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

Kubota
M100GX, M105GX-III, M110GX, M115GX-III, M125GX-III, M128GX, M130GX, M135GX, M135GX-III, M95GX-III

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Levelling Box - 22mm Ball, 80mm Bore - S.155245

- **Sparex Hydraulic Levelling Box:** High-quality replacement part for Kubota tractors.
- **Suitable for Multiple Kubota Models:** Compatible with M100GX, M105GX-III, M110GX, M115GX-III, M125GX-III, M128GX, M130GX, M135GX, M135GX-III, and M95GX-III.
- **Adjustable Length:** Minimum length of 680mm and maximum length of 800mm for optimal fit.
- **Includes Hoses:** Conveniently supplied with hoses for easy installation.
- **Durable Construction:** Features a cylinder bore of 80mm and a rod diameter of 40mm for long-lasting performance.
