Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 32mm - Fork Hole Ø 26x61mm - Min. Length: 720mm, Cylinder Bore: 90mm. | Sparex Part No.S.153734

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 32mm - Fork Hole Ø 26x61mm - Min. Length: 720mm, Cylinder Bore: 90mm. | Sparex Part No.S.153734

SKU:SP-S.153734

Regular price £440.64 GBP
Regular price £489.60 GBP Sale price £440.64 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity
Default Title

Hydraulic Levelling Box (Supplied with: Hoses) - Ball Ø 32mm - Fork Hole Ø 26x61mm - Min. Length: 720mm, Cylinder Bore: 90mm. | Sparex Part No.S.153734

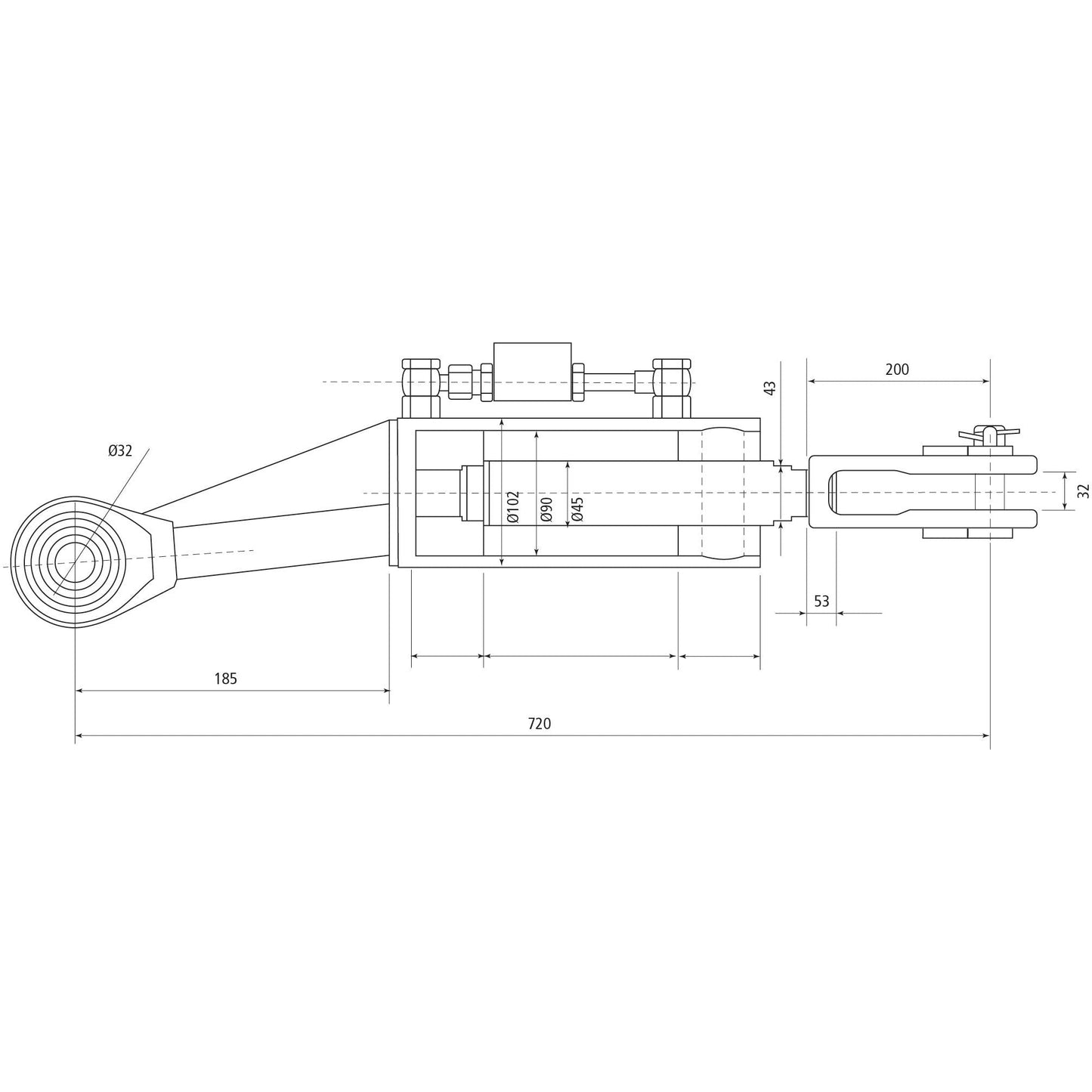

This Sparex Hydraulic Levelling Box is a high-quality replacement part designed for Kubota tractors. It features a ball end fitting with a diameter of 32mm and a fork hole with a diameter of 26mm and a length of 61mm. The box has a minimum length of 720mm and a maximum length of 850mm, with an internal width of 33mm and an external width of 70mm. It comes supplied with hoses for easy installation.

Product Specifications:

  • Brand: Sparex
  • Check Valve Position: Top
  • Cylinder Bore (mm): 90
  • End Fittings A: Ball Ø 32mm
  • End Fittings B: Fork Hole Ø 26x61mm
  • Maximum Length (mm): 850
  • Minimum Length (mm): 720
  • Related products: 33137, 33144
  • Rod Ø (mm): 45
  • Supplied with: Hoses
  • Tariff Code: 8412212090
  • Width External (mm): 70
  • Width External ins: 2 3/4
  • Width Internal (mm): 33
  • Width Internal ins: 1 19/64

Suitable For:

Kubota tractors:

  • M7131
  • M7132
  • M7151
  • M7152
  • M7171
  • M7172

Manufacture Information:

This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

Brand: Sparex
Check Valve Position: Top
Cylinder Bore (mm): 90
End Fittings A: Ball Ø 32mm
End Fittings B: Fork Hole Ø 26x61mm
erp_hazardous: No
Maximum Length (mm): 850
Minimum Length (mm): 720
Related products: 33137, 33144
Rod Ø (mm): 45
Supplied with: Hoses
Tariff Code:8412212090
Width External (mm): 70
Width External ins: 2 3/4
Width Internal (mm): 33
Width Internal ins: 1 19/64

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

Kubota
M7131, M7132, M7151, M7152, M7171, M7172

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Levelling Box - 32mm Ball, 26x61mm Fork Hole - S.153734

- **Sparex Hydraulic Levelling Box:** High-quality replacement part for Kubota tractors.
- **Kubota Tractor Compatibility:** Fits M7131, M7132, M7151, M7152, M7171, and M7172 models.
- **Ball End Fitting:** Features a 32mm diameter ball end fitting for secure connections.
- **Fork Hole End Fitting:** Equipped with a 26mm diameter x 61mm length fork hole for versatile mounting.
- **Supplied with Hoses:** Includes hoses for easy installation and a hassle-free experience.
