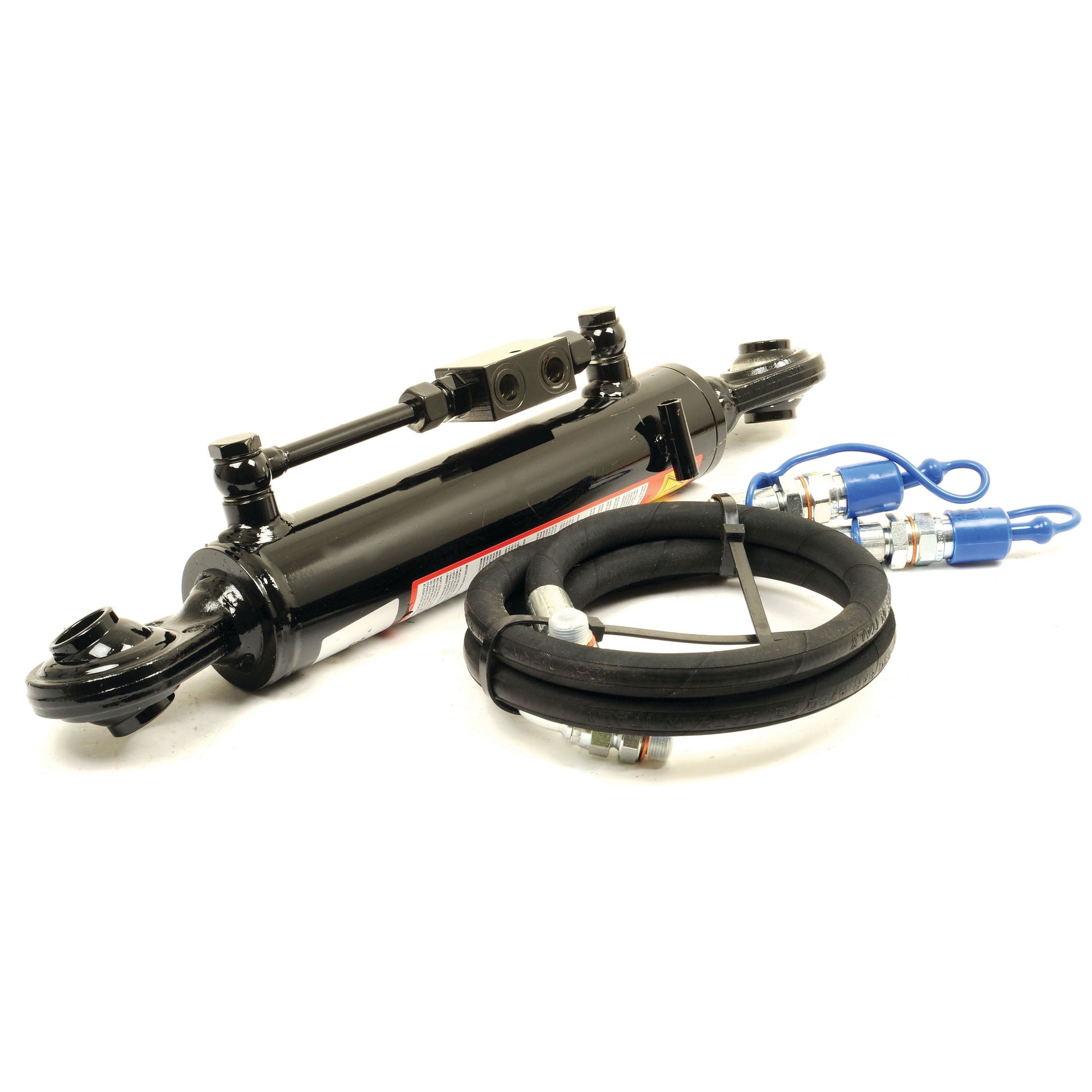

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 420mm. | Sparex Part No.S.331391

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 420mm. | Sparex Part No.S.331391

SKU:SP-S.331391

Regular price £225.85 GBP
Regular price £225.85 GBP Sale price £225.85 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 2 left

Quantity
Default Title

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm | Sparex Part No. S.331391

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 420mm and a maximum length of 580mm. It comes complete with a Hose Set for easy installation and use.

Product Specifications
  • A (mm): 60
  • Brand: Sparex
  • Category Implement End: 1
  • Category Tractor End: 1
  • Category: 1/1
  • Check Valve Position: Side
  • Cylinder Bore (mm): 50
  • Implement End: Ball
  • Lift Capacity (kgs @ 180 bar): 2300
  • Maximum Length (mm): 580
  • Minimum Length (mm): 420
  • Related Products: 32251, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 30
  • Suitable for Tractors up to: 60hp (45kW)
  • Supplied with: Hose Set
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 3600
  • Tractor End Fixing: Fixed
  • Tractor End: Ball
Suitable For Information

This hydraulic top link is compatible with Fiat 300 tractors.

Manufacture Information

Please note that this product is not associated with any specific OEM part number.

Additional Product Information

Product Specifications

A (mm): 60
Brand: Sparex
Category Implement End: 1
Category Tractor End: 1
Category: 1/1
Check Valve Position: Side
Cylinder Bore (mm): 50
Implement End: Ball
Lift kgs @180 bar: 2300
Maximum Length (mm): 580
Minimum Length (mm): 420
Related products: 32251, 33137, 33144, 33158, 39965, 39966, 39967, 39968
Rod Ø (mm): 30
Suitable for Tractors up to HP/Kw: 60hp (45kW)
Supplied with: Hose Set
Tariff Code: 8412212090
Thrust kgs @180 (bar): 3600
Tractor End Fixing: Fixed
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

Fiat
300
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link (Cat.1/1) - 50mm Bore, 420mm Min. Length

- **Heavy-duty Hydraulic Top Link:** Designed for tractors up to 60hp (45kW), this top link provides reliable performance for demanding agricultural tasks.
- **High Lift Capacity:** With a lift capacity of 2300 kgs @ 180 bar, this top link can handle a wide range of implements.
- **Adjustable Length:** The adjustable length of 420mm to 580mm allows for precise implement positioning.
- **Ball and Ball Design:** The ball and ball design provides a secure connection to both the tractor and implement.
- **Complete with Hose Set:** Comes with a hose set for easy installation and use.
