Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 565mm. | Sparex Part No.S.399851

Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 565mm. | Sparex Part No.S.399851

SKU:SP-S.399851

Regular price £453.60 GBP
Regular price £453.60 GBP Sale price £453.60 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 7 left

Quantity
Default Title

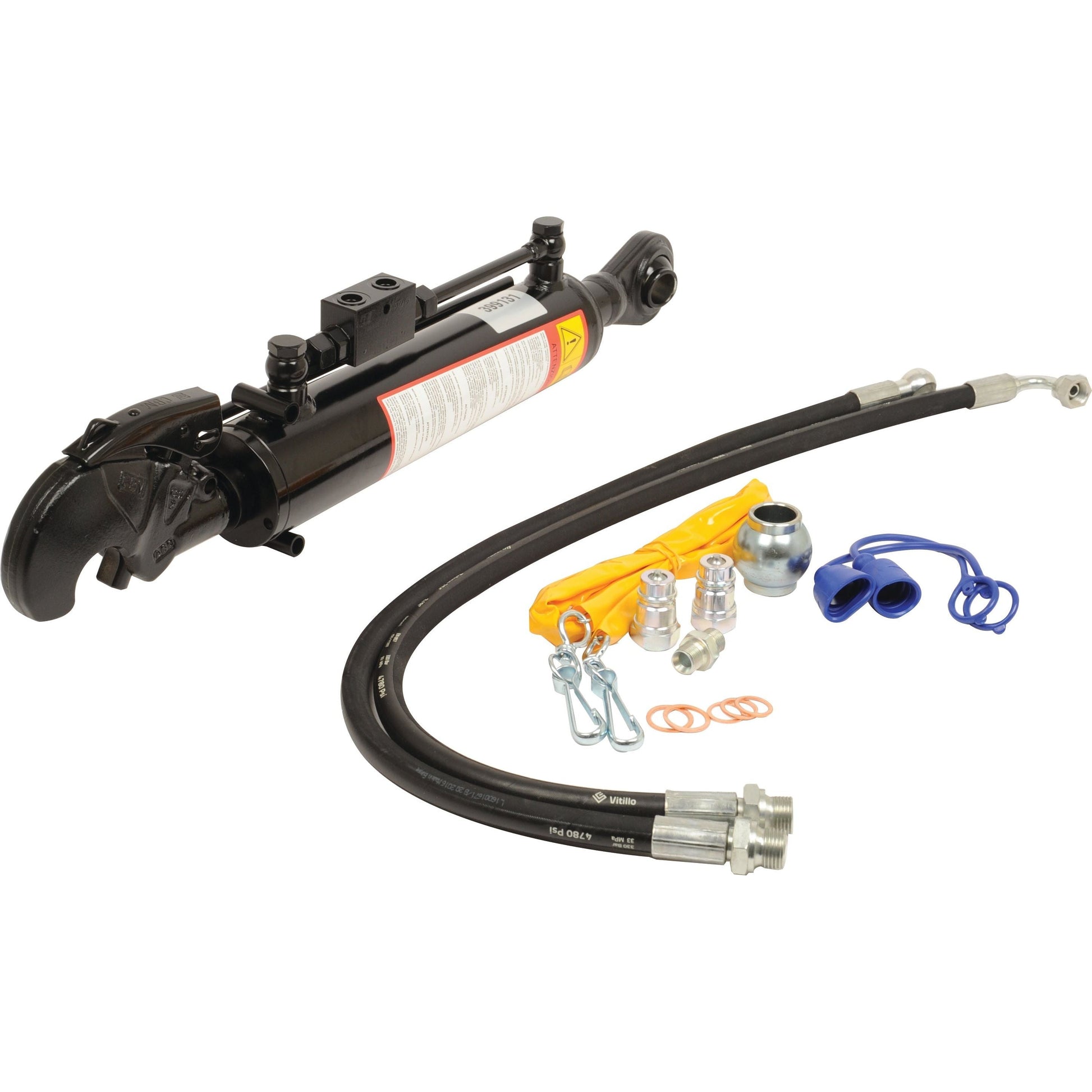

Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust hydraulic top link features a cylinder bore of 80mm and offers a minimum length of 565mm and a maximum length of 804mm. It is supplied with a complete hose set, chain & ball, and a marker label equipped with a CBM hook for easy installation and use.

Product Specifications
  • A (mm): 70
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 2
  • Category: 2/2
  • Check Valve Position: Side
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 6930
  • Maximum Length (mm): 804
  • Minimum Length (mm): 565
  • Related Products: 32255, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 9240
  • Tractor End Fixing: Ball End
  • Tractor End: Ball
Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring versatility across various applications.

Additional Product Information

Product Specifications

A (mm): 70
Brand: Sparex
Category Implement End: 2
Category Tractor End: 2
Category: 2/2
Check Valve Position: Side
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 804
Minimum Length (mm): 565
Related products: 32255,33008,33017,33137,33144,33158,33201,39965,39966,39967,39968,148199
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
Tariff Code:8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: Ball End
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Cat.2 Hydraulic Top Link with Ball & QR Hook - Sparex S.399851

- **Heavy-duty hydraulic top link with 80mm cylinder bore for powerful lifting capacity.**
- **Category 2/2 compatibility for universal tractor and implement attachment.**
- **Q.R CBM Hook for quick and secure implement connection.**
- **Lift capacity of 6930 kgs @ 180 bar for demanding agricultural tasks.**
- **Supplied with hose set, chain & ball, and marker label for easy installation and identification.**
