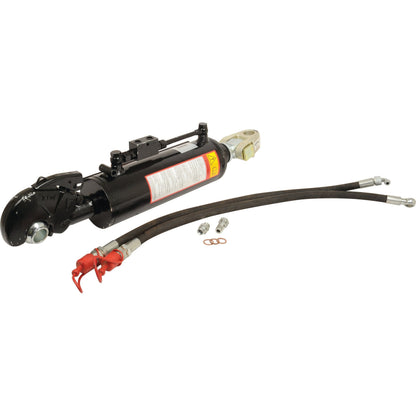

Hydraulic Top Link (Cat.2/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 600mm. | Sparex Part No.S.399911

Hydraulic Top Link (Cat.2/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 600mm. | Sparex Part No.S.399911

SKU:SP-S.399911

Regular price £483.60 GBP
Regular price £483.60 GBP Sale price £483.60 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity

Hydraulic Top Link (Cat.2/2) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This versatile top link features a minimum length of 600mm and a maximum length of 828mm, making it suitable for a variety of tractor implements.

Key Features

Each unit is supplied with a comprehensive hose set, chain & ball, and a marker label complete with knuckle and pin for easy installation and operation.

Product Specifications
  • A (mm): 140
  • Alternative to: 56791
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 2
  • Category: 2/2
  • Check Valve Position: Top
  • Cylinder Bore (mm): 63
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 3960
  • Maximum Length (mm): 828
  • Minimum Length (mm): 600
  • Related Products: 10287, 10292, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
  • Rod Diameter (mm): 35
  • Suitable for Tractors up to: 100hp (74kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 5730
  • Tractor End Fixing: S.10287
  • Tractor End: Knuckle
Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturing Information

This product does not correspond to any particular OEM part number, ensuring a broad application across various tractor models.

Additional Product Information

Product Specifications

A (mm): 140
Alternative to: 56791
Brand: Sparex
Category Implement End: 2
Category Tractor End: 2
Category: 2/2
Check Valve Position: Top
Cylinder Bore (mm): 63
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 3960
Maximum Length (mm): 828
Minimum Length (mm): 600
Related products: 10287,10292,33008,33017,33137,33144,33158,33201,39965,39966,39967,39968,148199
Rod Ø (mm): 35
Suitable for Tractors up to HP/Kw: 100hp (74kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 5730
Tractor End Fixing: S.10287
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link - Cat.2/2, 63mm Bore, Sparex S.399911

- **Heavy Duty Hydraulic Top Link:** Designed for demanding agricultural applications with a robust construction.
- **High Lift Capacity:** Capable of lifting up to 3960 kgs at 180 bar pressure.
- **Versatile Length Adjustment:** Adjustable from 600mm to 828mm, suitable for various tractor implements.
- **Quick Release CBM Hook:** Provides fast and easy attachment and detachment of implements.
- **Universal Compatibility:** Not associated with any specific OEM part number, ensuring broad application across various tractor models.
