Hydraulic Top Link (Cat.2/3) Knuckle and Q.r CBM Hook, Cylinder Bore: 90 MM, Min. Length : 690 Mm. - Sparex Part S.399732

Hydraulic Top Link (Cat.2/3) Knuckle and Q.r CBM Hook, Cylinder Bore: 90 MM, Min. Length : 690 Mm. - Sparex Part S.399732

Stock Availability

Currently available from the following locations.

Sparex Ennery France

In Stock
11 available

Lead times are estimated and may vary depending on order time, carrier availability and delivery destination.

Low stock: 11 left

Regular price £512.40 GBP
Regular price £512.40 GBP Sale price £512.40 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

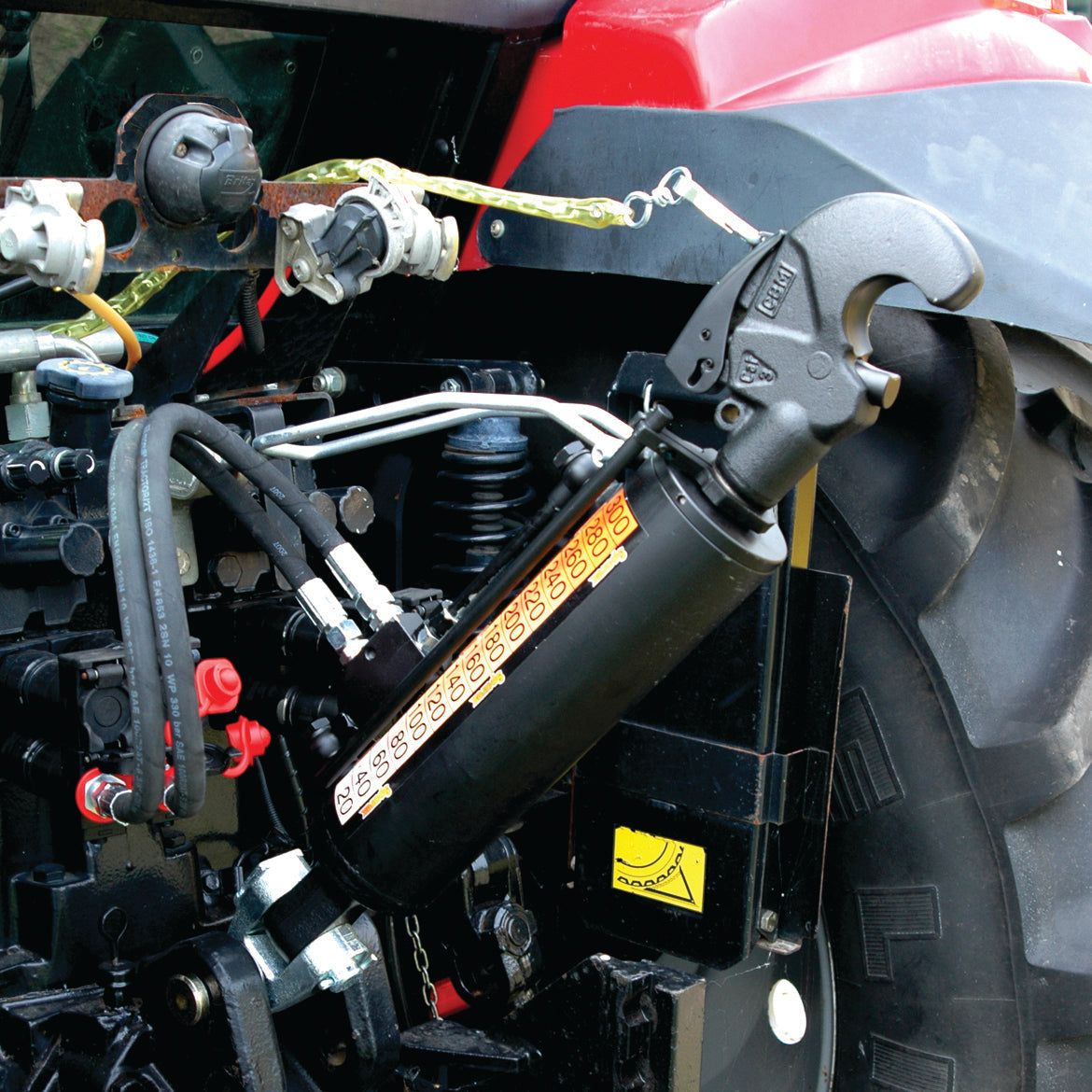

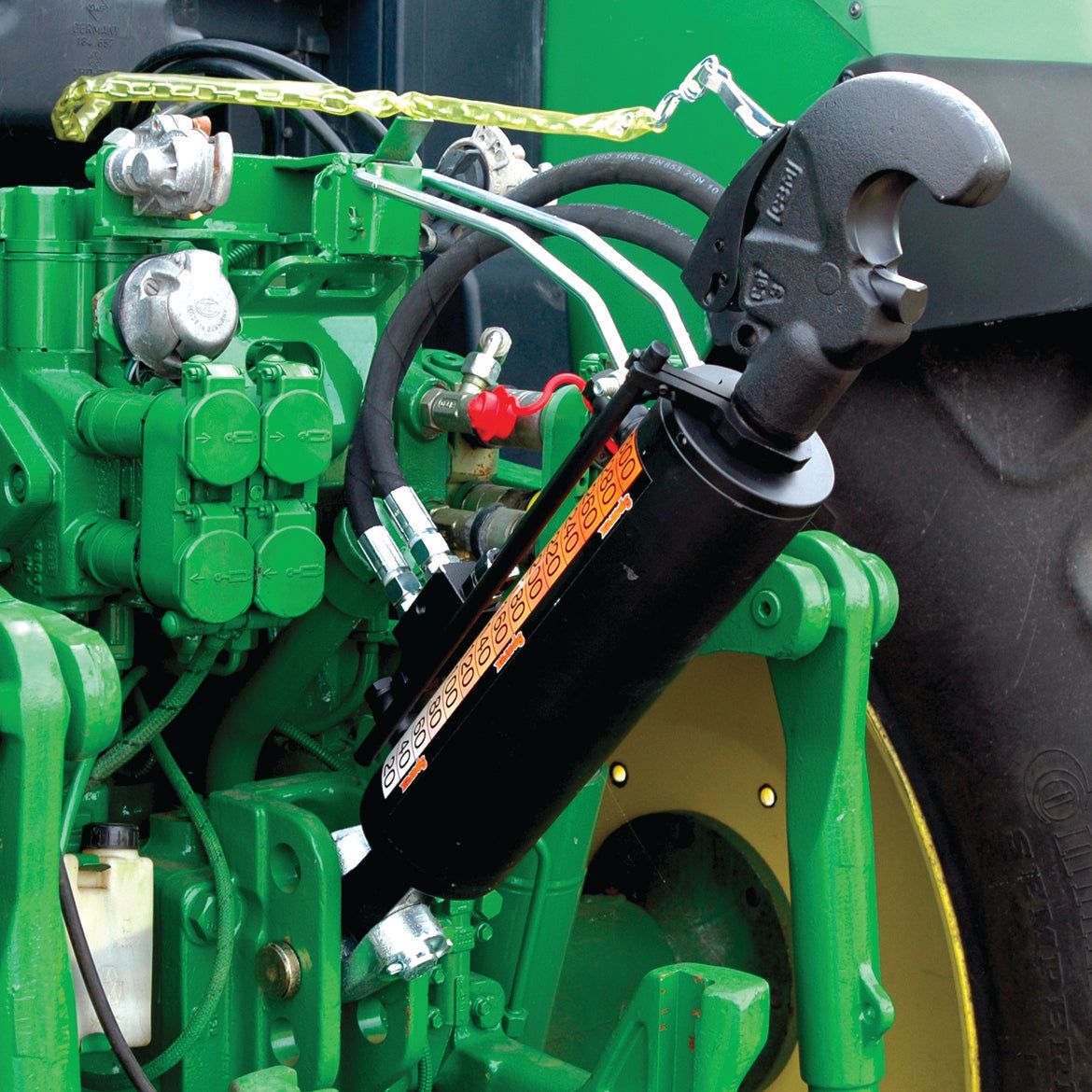

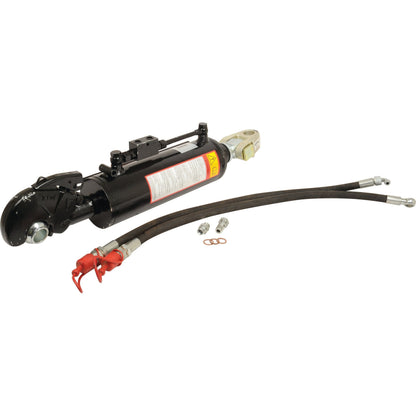

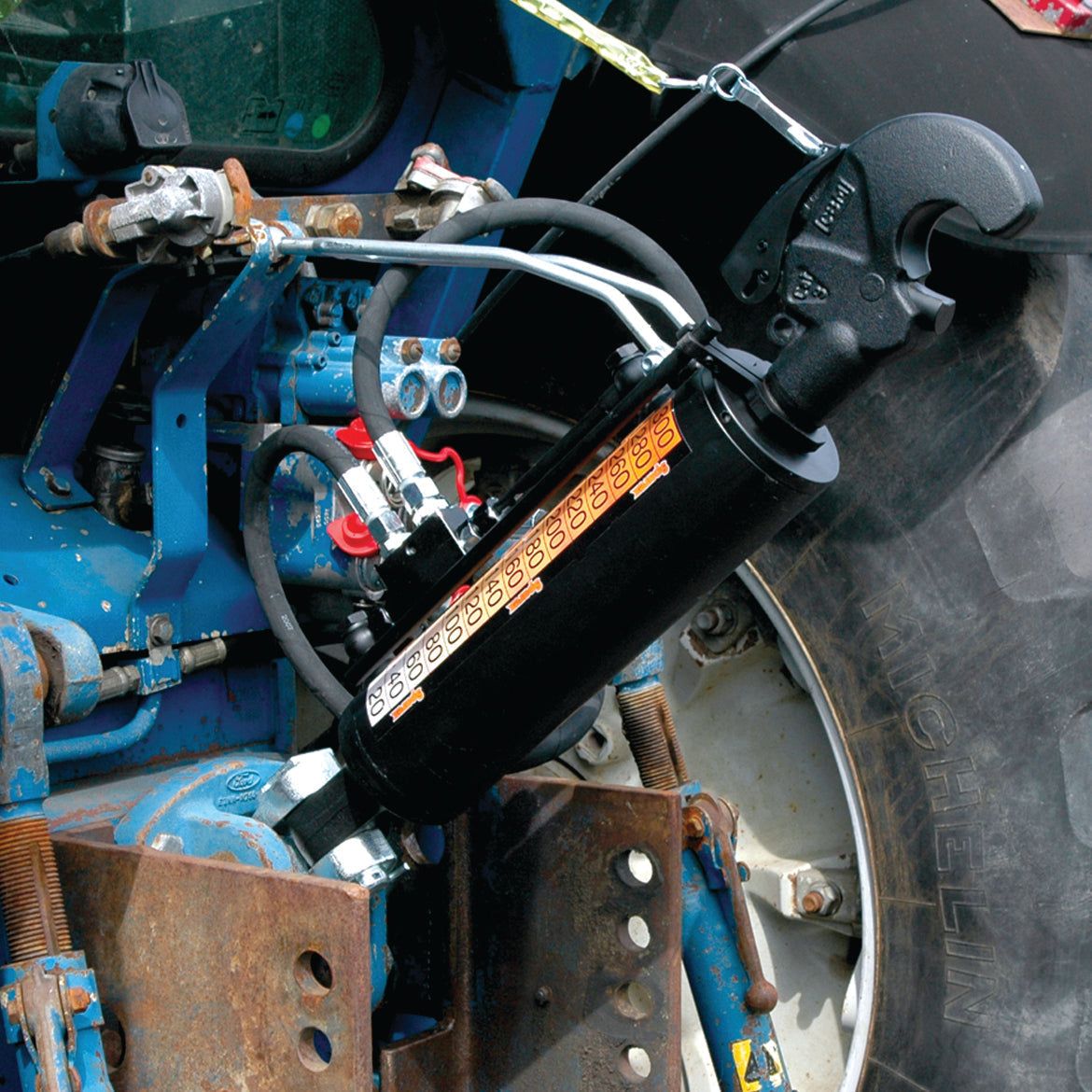

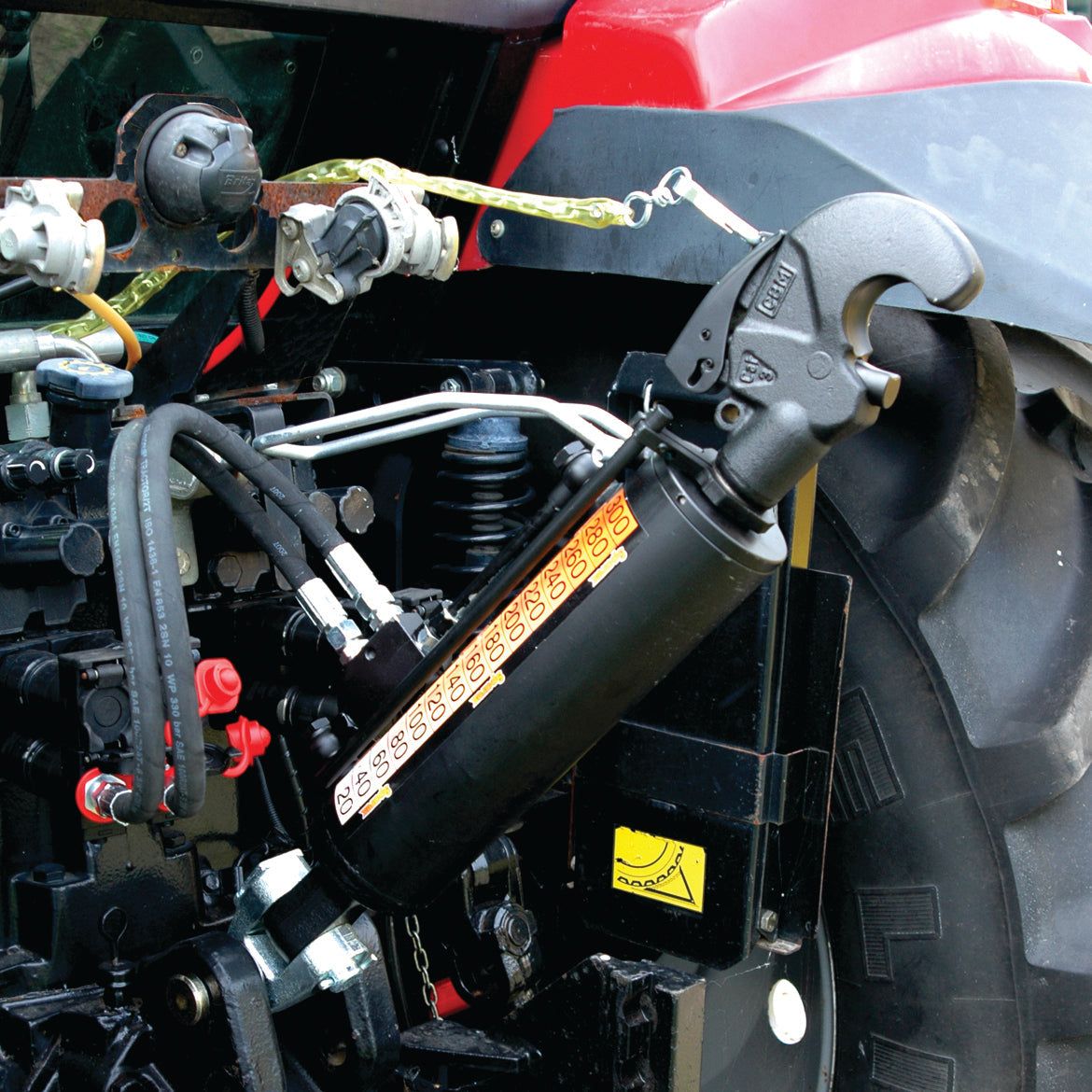

Introducing the Hydraulic Top Link (Cat.2/3) with a robust Cylinder Bore of 90mm. This versatile hydraulic top link features a minimum length of 690mm and a maximum length of 956mm, making it ideal for a variety of applications. Each unit is supplied with a comprehensive hose set, chain & ball, and a marker label complete with knuckle and pin for easy installation.

Product Specifications
  • A (mm): 152
  • Alternative to: 32932
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 2
  • Category: 2/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 90
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 8770
  • Maximum Length (mm): 956
  • Minimum Length (mm): 690
  • Related Products: 10287, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
  • Rod Diameter (mm): 45
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 11700
  • Tractor End Fixing: S.10287

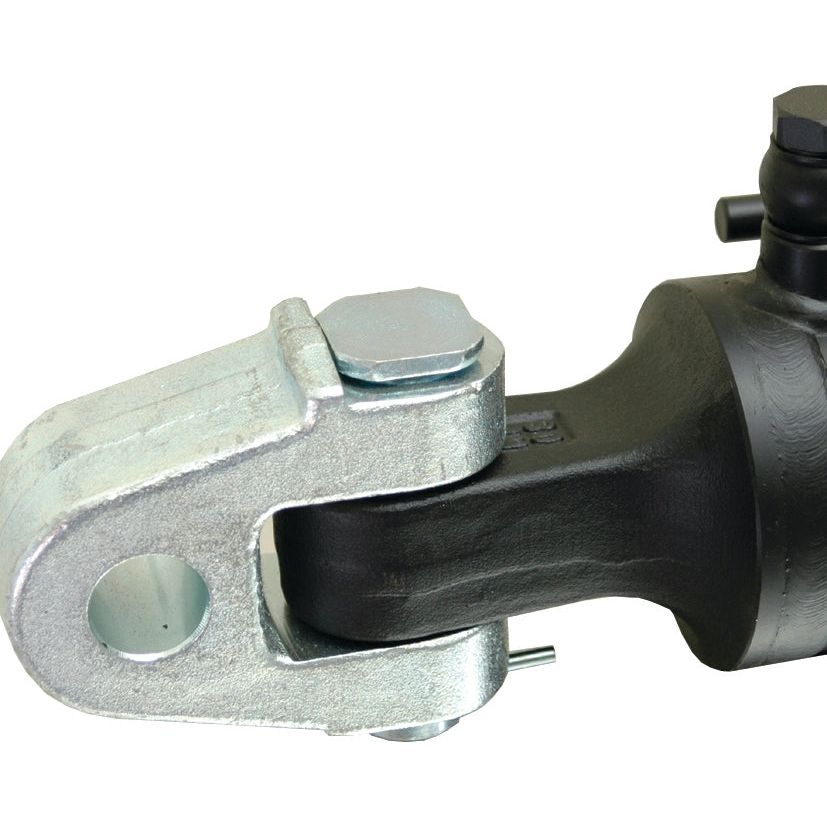

  • Tractor End: Knuckle
Suitable For Information

This product is not associated with any particular make or model, providing flexibility for various applications.

Manufacture Information

This product is not associated with any specific OEM part number, ensuring compatibility across a range of machinery.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 32932
Brand: Sparex
Category Implement End: 3
Category Tractor End: 2
Category: 2/3
Check Valve Position: Top
Cylinder Bore (mm): 90
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 8770
Maximum Length (mm): 956
Minimum Length (mm): 690
Related products: 10287,10292,32257,33004,33010,33017,33137,33144,33158,33202,39965,39966,39967,39968,148196,148197
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 11700
Tractor End Fixing: S.10287
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link - Cat.2/3, 90mm Bore, Sparex S.399732

- **Heavy Duty Hydraulic Top Link:** Designed for tractors up to 180hp (135kW) with a robust 90mm cylinder bore.
- **Versatile Length Adjustment:** Adjustable from 690mm to 956mm, suitable for a wide range of applications.
- **High Lift Capacity:** Capable of lifting 8770 kgs at 180 bar pressure.

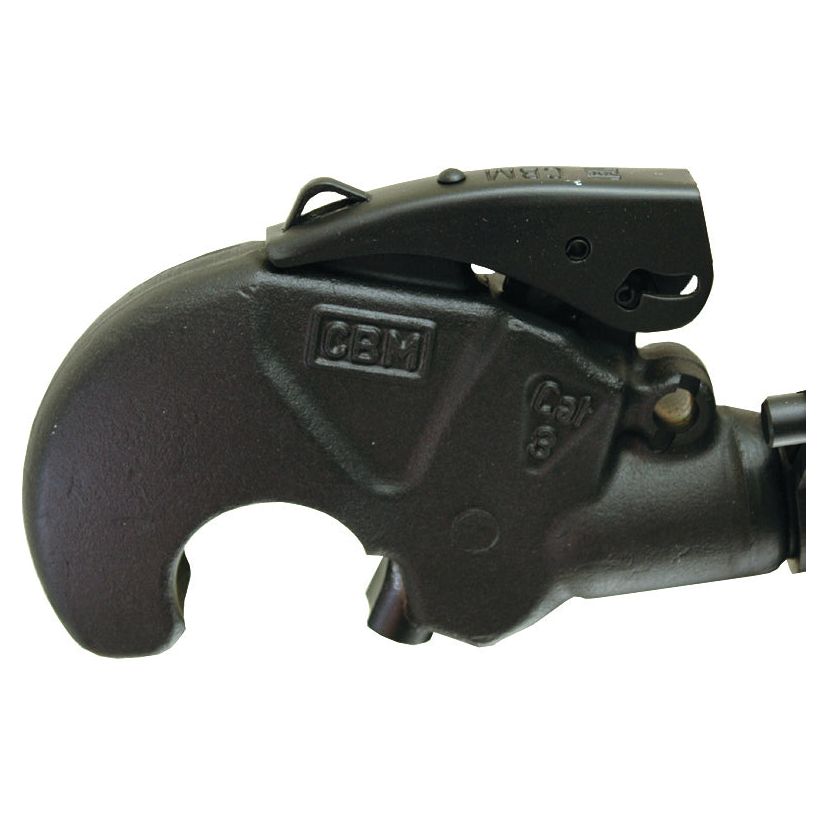

- **Quick Release CBM Hook:** Provides easy and secure attachment for implements.
- **Complete Package:** Includes hose set, chain & ball, and marker label with knuckle & pin for convenient installation.
