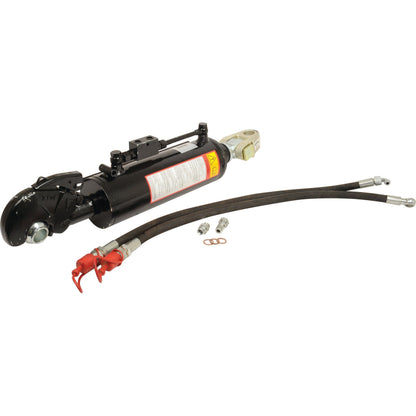

Hydraulic Top Link (Cat.28mm/2) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in agricultural applications. With a minimum length of 560mm and a maximum length of 725mm, this top link is perfect for a variety of tractor implements. It comes complete with a hose set, chain & ball, and a marker label featuring a knuckle and pin for easy installation and use.

Product Specifications
  • A (mm): 152
  • Alternative to: 56793
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 28mm
  • Category: 28mm/2
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 6930
  • Maximum Length (mm): 725
  • Minimum Length (mm): 560
  • Related Products: 10289, 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 9240
  • Tractor End Fixing: S.10289
  • Tractor End: Knuckle
Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring a broad application across various tractor models.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 56793
Brand: Sparex
Category Implement End: 2
Category Tractor End: 28mm
Category: 28mm/2
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 725
Minimum Length (mm): 560
Related products: 10289,10292,32255,33008,33017,33137,33144,33158,39965,39966,39967,39968
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: S.10289
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link - Cat.2, 80mm Bore, Sparex S.399933

- **Heavy Duty Hydraulic Top Link:** Designed for tractors up to 180hp (135kW) with a robust 80mm cylinder bore and 40mm rod diameter.
- **High Lift Capacity:** Offers a powerful lift capacity of 6930 kgs at 180 bar, ideal for demanding agricultural tasks.
- **Versatile Implement End:** Features a Quick Release CBM Hook for easy attachment and detachment of implements.
- **Adjustable Length:** Provides a flexible working range with a minimum length of 560mm and a maximum length of 725mm.
- **Complete Package:** Includes a hose set, chain & ball, and a marker label with knuckle & pin for convenient installation and identification.
