Vendor: Sparex - SKU:

Hydraulic Top Link (Cat.3/3) Ball and Q.r CBM Hook, Cylinder Bore: 105 MM, Min. Length : 667 Mm. - Sparex Part S.331356

Hydraulic Top Link (Cat.3/3) Ball and Q.r CBM Hook, Cylinder Bore: 105 MM, Min. Length : 667 Mm. - Sparex Part S.331356

Stock Availability

Currently available from the following locations.

Sparex Ennery France

In Stock
4 available 7 to 10 Business Days

Lead times are estimated and may vary depending on order time, carrier availability and delivery destination.

Low stock: 4 left

Regular price £598.80 GBP
Regular price £598.80 GBP Sale price £598.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

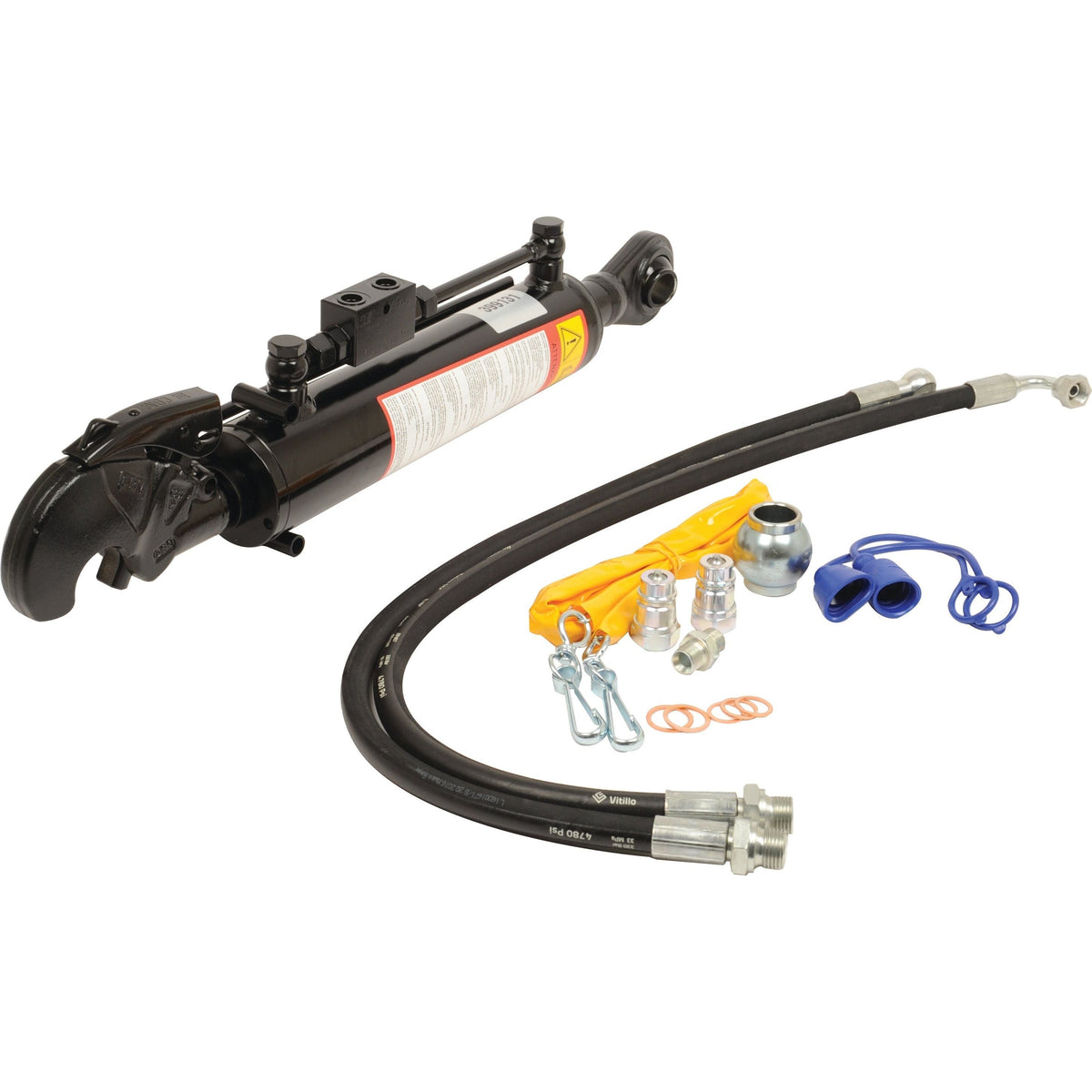

Hydraulic Top Link (Cat.3/3) with Ball and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust top link features a minimum length of 667mm and a maximum length of 888mm, making it versatile for various implements. It comes complete with a hose set, chain & ball, and a marker label equipped with a CBM hook for easy identification and installation.

Product Specifications
  • A (mm): 125
  • Alternative to: 56806
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 3
  • Category: 3/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 105
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 11520
  • Maximum Length (mm): 888
  • Minimum Length (mm): 667
  • Related Products: 32260, 32951, 32977, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
  • Rod Diameter (mm): 45
  • Suitable for Tractors up to: 250hp (184kW)
  • Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 14440
  • Tractor End Fixing: S.32951
  • Tractor End: Ball
Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring a broad application across various machinery.

Additional Product Information

Product Specifications

A (mm): 125
Alternative to: 56806
Brand: Sparex
Category Implement End: 3
Category Tractor End: 3
Category: 3/3
Check Valve Position: Top
Cylinder Bore (mm): 105
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 11520
Maximum Length (mm): 888
Minimum Length (mm): 667
Related products: 32260, 32951, 32977, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 250hp (184kW)
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 14440
Tractor End Fixing: S.32951
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Cat.3 Hydraulic Top Link with Ball & QR Hook - Sparex S.331356

- **Heavy-duty hydraulic top link for tractors up to 250hp (184kW)**
- **Category 3/3 compatibility for universal fitment**
- **Powerful lift capacity of 11520 kgs @ 180 bar**
- **Quick-release CBM hook for easy implement attachment**
- **Includes hose set, chain & ball, and marker label for convenient installation**
