Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 695mm. | Sparex Part No.S.399711

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 695mm. | Sparex Part No.S.399711

SKU:SP-S.399711

Regular price £621.60 GBP
Regular price £621.60 GBP Sale price £621.60 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 5 left

Quantity
Default Title

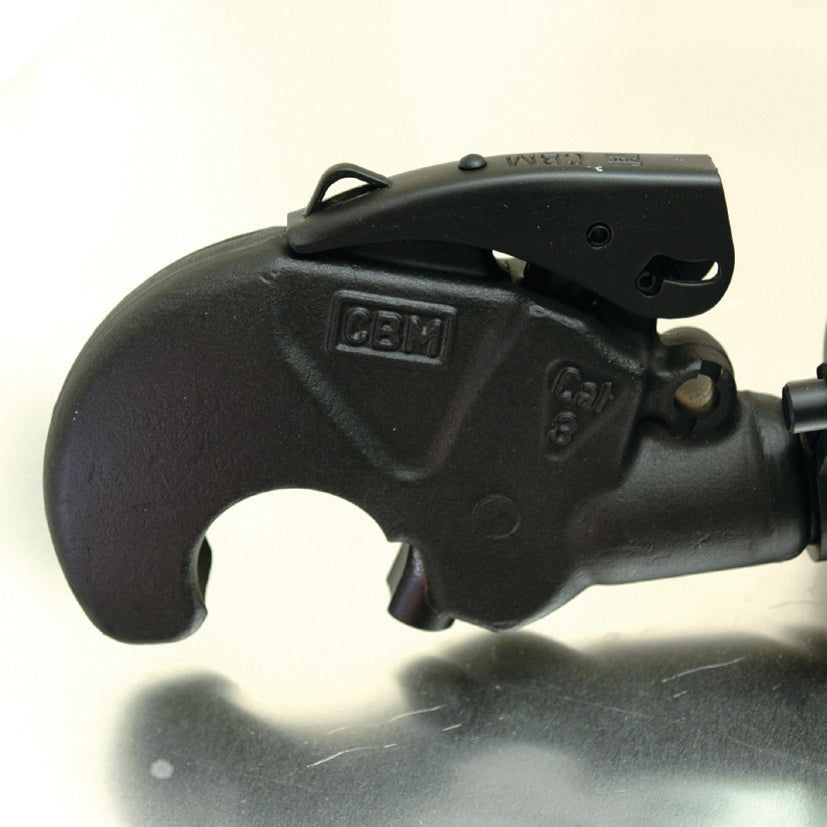

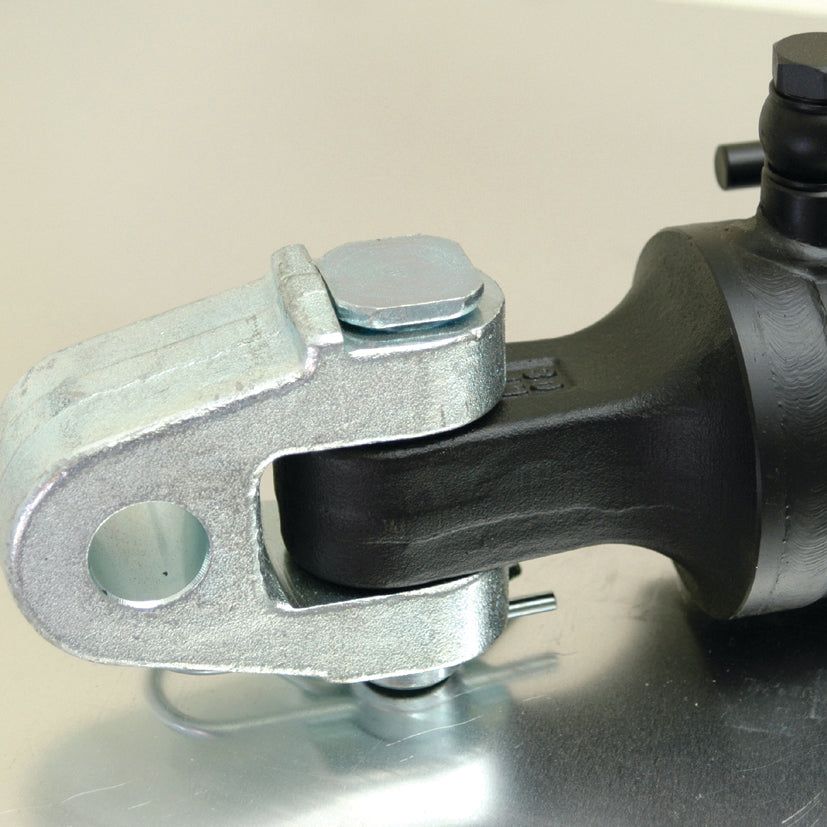

Hydraulic Top Link (Cat.3/3) with Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust hydraulic top link features a cylinder bore of 80mm and offers a minimum length of 695mm and a maximum length of 965mm. It is supplied with a comprehensive hose set, chain & ball, and a marker label complete with knuckle & pin for easy installation and use.

Product Specifications
  • A (mm): 152
  • Alternative to: 32931
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 3
  • Category: 3/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 6930
  • Maximum Length (mm): 965
  • Minimum Length (mm): 695
  • Related Products: 10288, 10292, 32255, 33010, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 9240
  • Tractor End Fixing: S.10288
  • Tractor End: Knuckle
Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 32931
Brand: Sparex
Category Implement End: 3
Category Tractor End: 3
Category: 3/3
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 965
Minimum Length (mm): 695
Related products: 10288,10292,32255,33010,33017,33137,33144,33158,39965,39966,39967,39968
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: S.10288
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Cat.3 Hydraulic Top Link with Quick Release Hook - Sparex S.399711

- **Heavy-duty hydraulic top link with 80mm cylinder bore for powerful lifting.**
- **High lift capacity of 6930 kgs @ 180 bar for demanding agricultural tasks.**
- **Versatile compatibility with Category 3/3 tractors up to 180hp (135kW).**
- **Quick-release CBM hook implement end for easy attachment and detachment.**
- **Supplied with a complete hose set, chain & ball, and marker label for convenient installation.**
