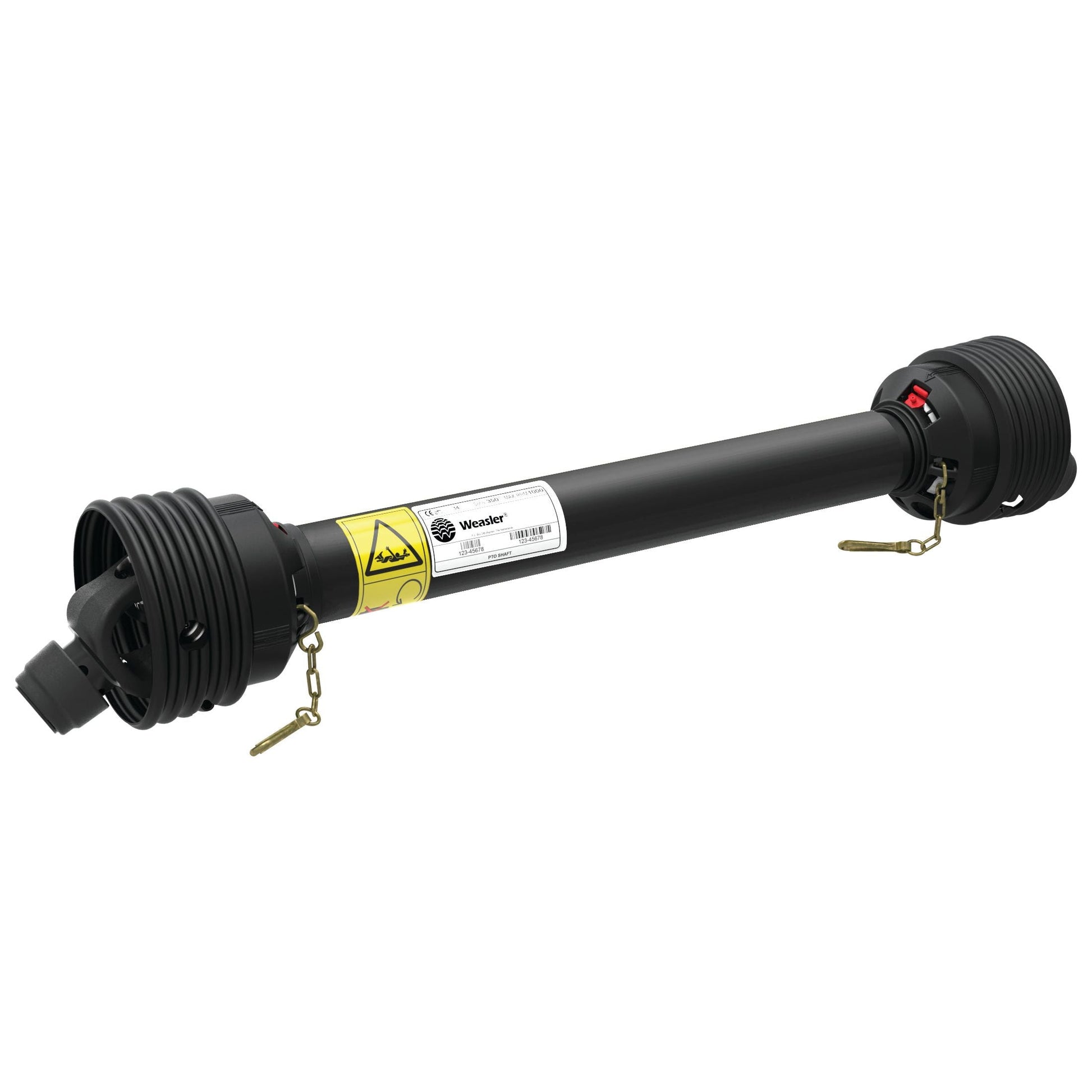

Weasler PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. - S.23248

Weasler PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. - S.23248

SKU:SP-S.23248

Regular price £197.56 GBP
Regular price £219.52 GBP Sale price £197.56 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 21 left

Quantity
Default Title

Weasler PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. - S.23248

Introducing the Weasler PTO Shaft, designed for optimal performance and durability in agricultural applications. This high-quality PTO shaft is part of the renowned German Series AW21/W2300, ensuring reliability and efficiency.

Key Features:

  • Brand: Weasler
  • German Series: AW21/W2300
  • Guard Type: Easylock
  • HP Rating @ 540RPM: 36 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Kilowatt Power Rating @ 540RPM: 27 kW

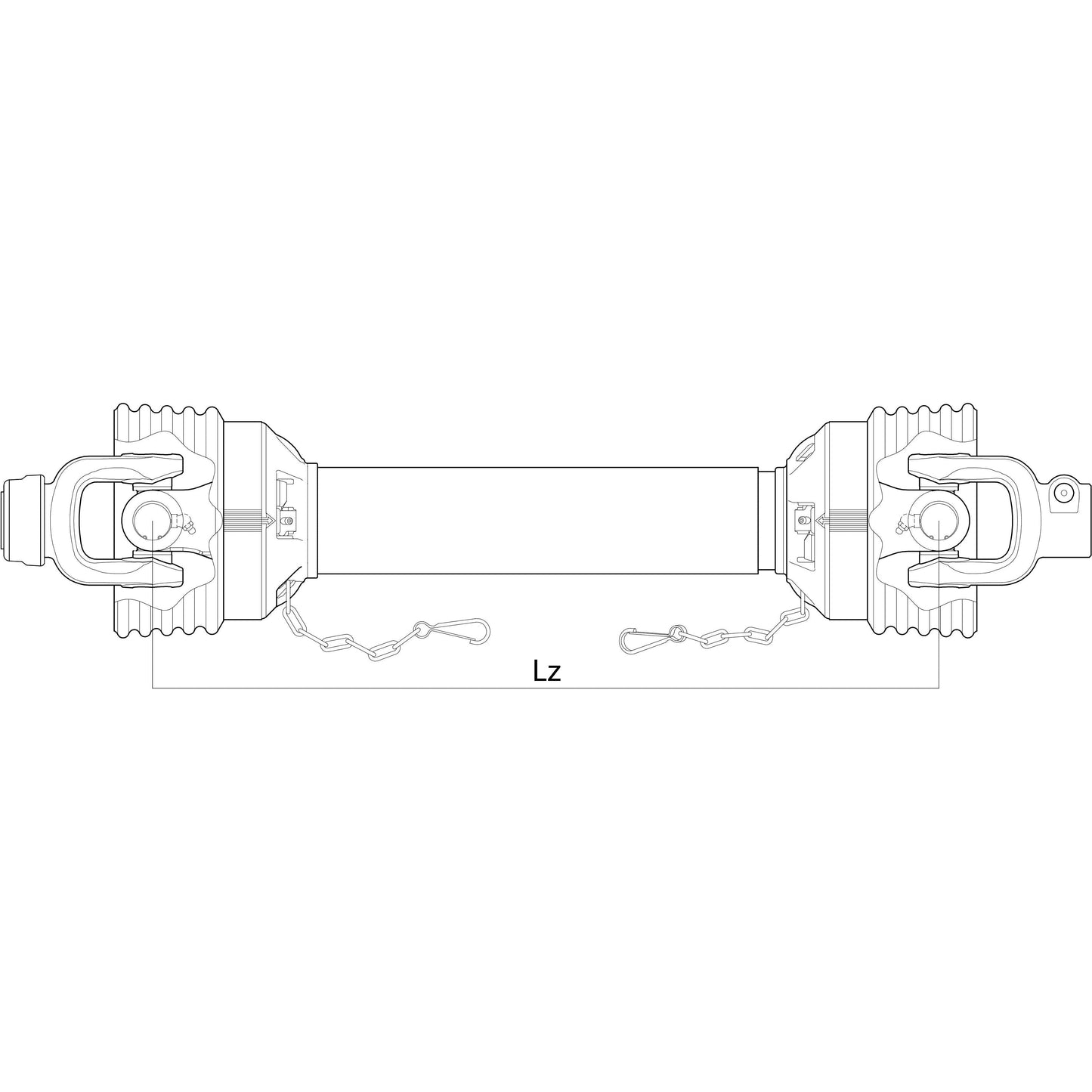

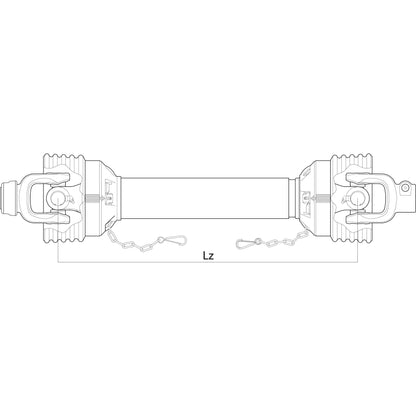

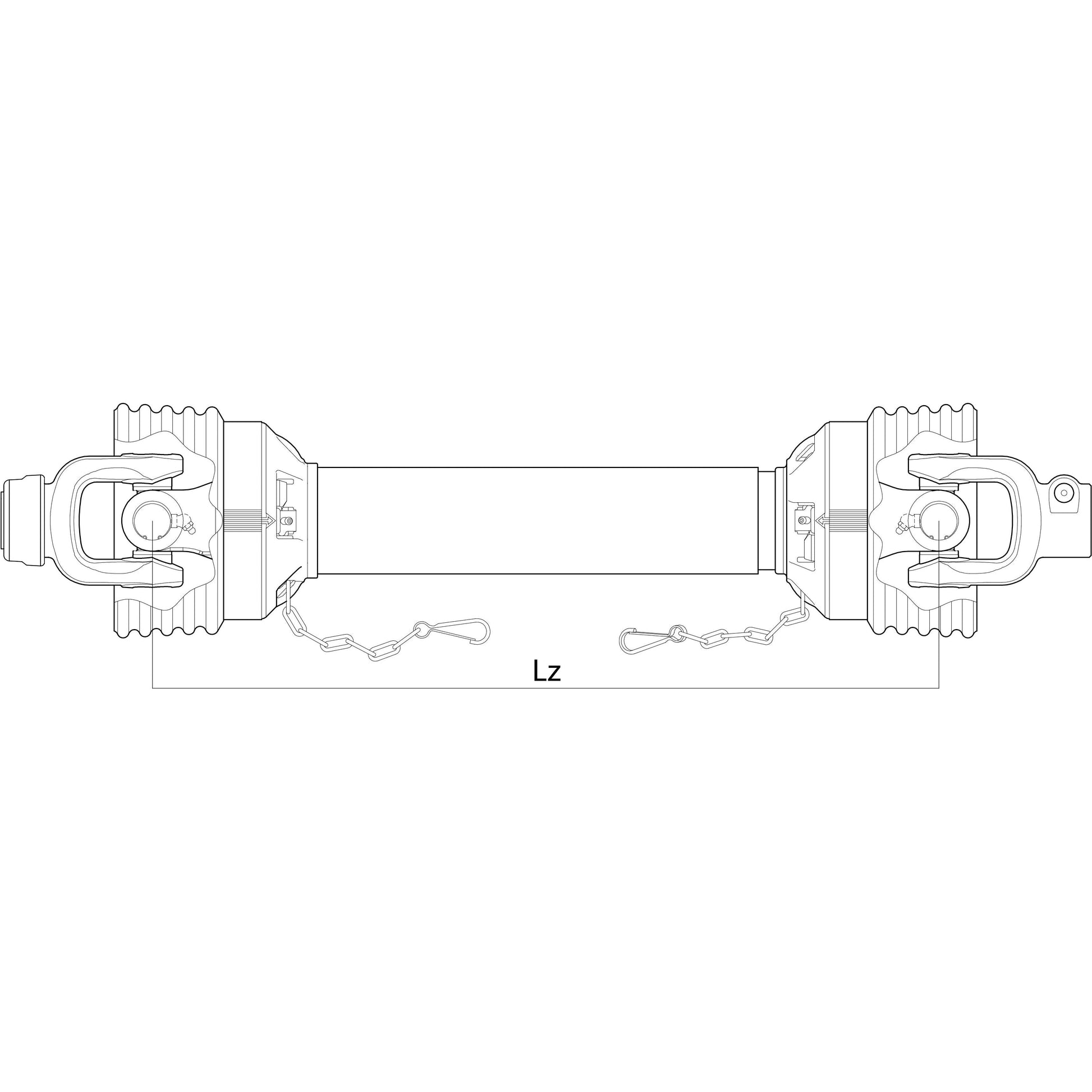

  • Lz Length: 860 mm
  • PTO Series: AW21/W2300
  • Reference: 1600-7401-086
  • Tariff Code: 8483908990
  • Torque: 335 - 1240 Nm
  • Total Closed Length: 1060 mm
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Lemon
  • Universal Joint Dimensions: 27 x 74.5 mm

Compatibility:

This PTO shaft is compatible with Universal Tractors and fits OEM specifications for Walterscheid 1113093.

Related Products:

Explore our range of related products: 24190, 24192, 4190, 4192, 59609, 59632, 6040, 6041, 6048, 6583, 72448, 115404, 115405, 115409, 115439, 115442.

Upgrade your agricultural equipment with the Weasler PTO Shaft for enhanced performance and reliability.

Additional Product Information

Product Specifications

Brand: Weasler
German Series: AW21/W2300
Guard Type: Easylock
HP Rating @ 540RPM: 36
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Kilowatt Power Rating @ 540RPM: 27
Lz Length (mm): 860
PTO Series: AW21/W2300
Reference: 1600-7401-086
Related products: 24190, 24192, 4190, 4192, 59609, 59632, 6040, 6041, 6048, 6583, 72448, 115404, 115405, 115409, 115439, 115442
Tariff Code: 8483908990
Torque (Nm): 836
Torque: 335 - 1240Nm
Total Closed Length (mm): 1060
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Lemon
Tube Ref: 0v/1
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

Walterscheid
1113093

Suitable For Information

Universal Tractors
UNIVERSAL

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

860mm PTO Shaft, 1 3/8" x 6 Spline Q.R. - S.23248

- **High-Quality German Engineering:** Weasler PTO Shaft, part of the renowned AW21/W2300 series, ensures reliability and efficiency.
- **Powerful Performance:** Rated for up to 54 HP @ 540 RPM, ideal for demanding agricultural applications.
- **Versatile Compatibility:** Fits Universal Tractors and OEM specifications for Walterscheid 1113093.
- **Easylock Guard:** Provides secure and convenient protection for the PTO shaft.
- **Durable Construction:** Lemon tube profile and robust universal joints ensure long-lasting performance.
