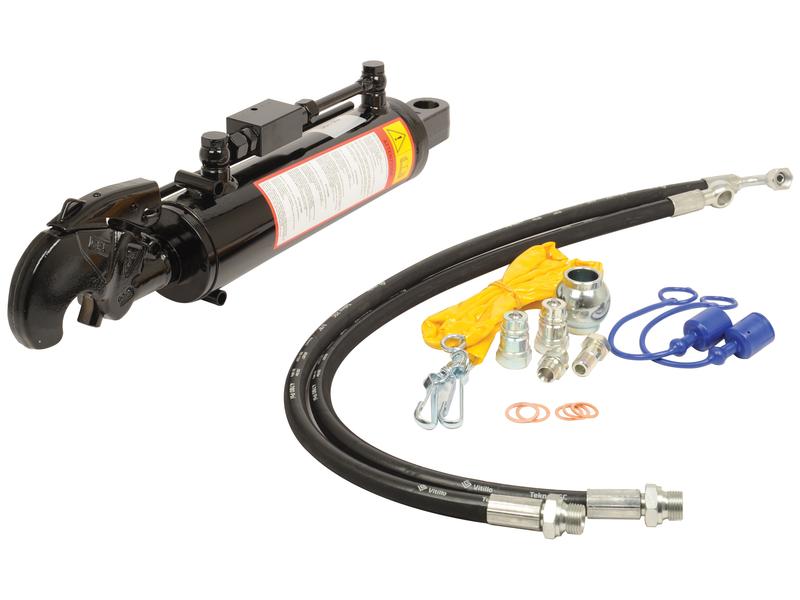

Sparex | Hydraulic Top Link (Cat.-/2) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 500mm.

Sparex | Hydraulic Top Link (Cat.-/2) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 500mm.

SKU:SP-S.56793

Regular price £537.60 GBP
Regular price £537.60 GBP Sale price £537.60 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 10 left

Quantity
Default Title

Introducing the Sparex Hydraulic Top Link, designed for optimal performance and versatility in agricultural applications. With a minimum length of 500mm and a maximum length of 665mm, this top link is perfect for a variety of tractor implements. It comes complete with a hose set, chain and ball, and a marker label, ensuring you have everything you need for installation. Please note that this product requires a knuckle (options include S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm, or S.56817 Ø36mm) and a fixing pin (S.10292) for full functionality.

Product Specifications
  • Brand: Sparex
  • Category Implement End: 2
  • Category: -/2
  • Check Valve Position: Top
  • Cylinder Bore: 80mm
  • Implement End: Q.R CBM Hook
  • Lift Capacity @ 180 bar: 6930 kg
  • Maximum Length: 665mm
  • Minimum Length: 500mm
  • Related Products: 10287, 10289, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56817, 148199
  • Rod Diameter: 40mm
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied With: Hose set, chain & ball, marker label without knuckle & pin. Requires knuckle and fixing pin.
  • Tariff Code: 8412212090
  • Thrust @ 180 bar: 9240 kg
Compatibility Information

This product is not associated with any particular make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any specific OEM part number, ensuring broad compatibility across different systems.

Additional Product Information

Product Specifications

Brand: Sparex
Category Implement End: 2
Category: -/2
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 665
Minimum Length (mm): 500
Related products: 10287, 10289, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56817, 148199
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label without knuckle & pin, Requires Knuckle (S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm or S.56817 Ø36mm) and fixing pin (S.10292)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com
