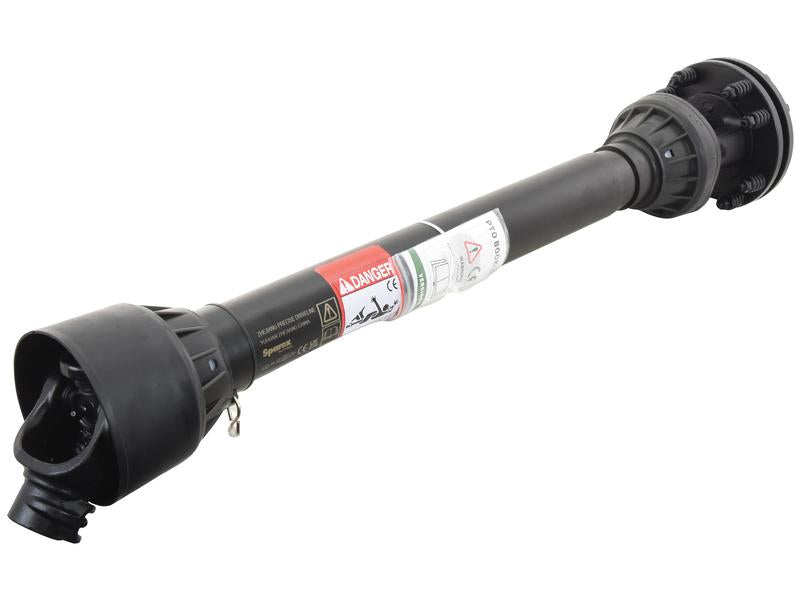

Sparex PTO Shaft - Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Friction Disc Clutch.

Key Specifications:

  • Brand: Sparex
  • Clutch Setting: 1300 Nm
  • HP Rating @ 540 RPM: 64 HP (Range: 55 to 119 HP)
  • Kilowatt Power Rating @ 540 RPM: 47 kW
  • Number of Discs: 2
  • Torque: 335 - 1240 Nm (830 Nm nominal)
  • Total Closed Length: 50.7 inches (1288 mm)
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 92 mm
  • Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB6/A6
  • PTO Series: AB6/A6
  • Tube Reference: 12509/12512
  • Tariff Code: 8483908990

Compatibility:

This PTO shaft serves as an alternative to part numbers 128703 and 128714. It is compatible with various applications within the Italian Series AB6/A6.

Related Products:

  • 163813
  • 166692
  • 166693

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft today!

Additional Product Information

Product Specifications

Alternative to: 128703, 128714
Brand: Sparex
Clutch Setting Nm: 1300
HP Rating @ 540RPM: 64
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Lz Length (mm): 1010
Number of Discs: 2
PTO Series: AB6/A6
Related products: 163813, 166692, 166693
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (ins): 50.7
Total Closed Length (mm): 1288
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
