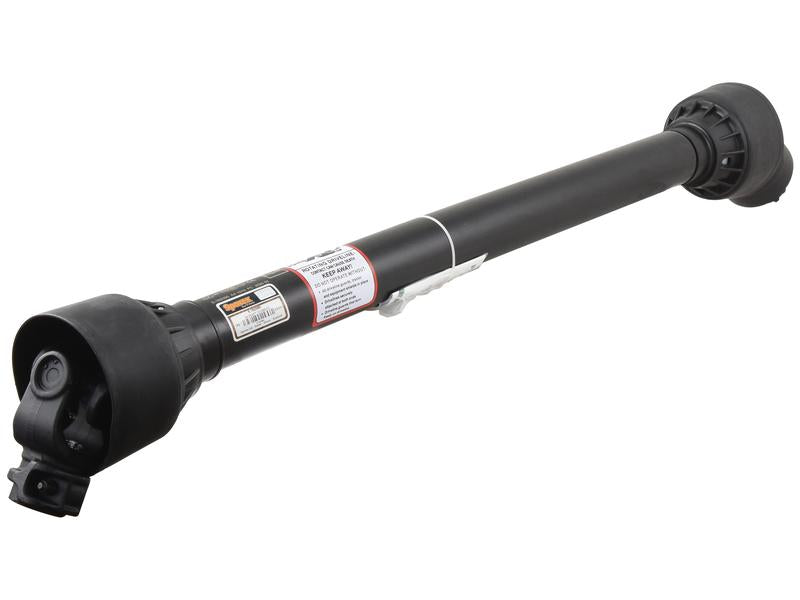

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.162395

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Clockwise) | Sparex Part Number: S.162395

SKU:SP-S.162395

Regular price £191.18 GBP
Regular price £212.42 GBP Sale price £191.18 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 97 left

Quantity
Default Title

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and is equipped with a 1 3/8'' x 6 Spline Quick Release (Q.R.) at the tractor end and a 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise) at the implement end.

Key Specifications:

  • Brand: Sparex
  • HP Rating @ 540RPM: 35 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Kilowatt Power Rating @ 540RPM: 26 kW
  • Torque: 335 - 1240 Nm (460 Nm nominal)
  • Total Closed Length: 49.4 inches (1256 mm)
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Tractor PTO Rotation: Clockwise
  • Italian Series: AB4/A4
  • PTO Series: AB4/A4
  • Tube Reference: 12507/12508
  • Tariff Code: 8483908990

Compatibility:

This PTO shaft serves as an alternative to part number 128686 and is compatible with various related products including 10608, 2448, 24814, 24815, 59605, 59636, 6045, 6048, 6100, 6101, 163811, 166692, 166693.

Product Information:

Supplier: Sparex

Product Type: PTO Shaft

Product SKU: SP-162395

OEM Fitment Information: This product is not associated with any particular OEM part number.

Machine Fitment Information: This product is not associated with any particular make or model.

Upgrade your agricultural equipment with the reliable and efficient Sparex PTO Shaft today!

Additional Product Information

Product Specifications

Alternative to: 128686
Brand: Sparex
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Overunning Clutch (Clockwise)
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 1010
PTO Series: AB4/A4
Related products: 10608, 2448, 24814, 24815, 59605, 59636, 6045, 6048, 6100, 6101, 163811, 166692, 166693
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (ins): 49.4
Total Closed Length (mm): 1256
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tractor PTO Rotation: Clockwise
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
