Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch | Sparex Part Number: S.162398

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch | Sparex Part Number: S.162398

SKU:SP-S.162398

Regular price £193.37 GBP
Regular price £214.86 GBP Sale price £193.37 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 8 left

Quantity
Default Title

Sparex PTO Shaft - (Lz) Length: 1010mm

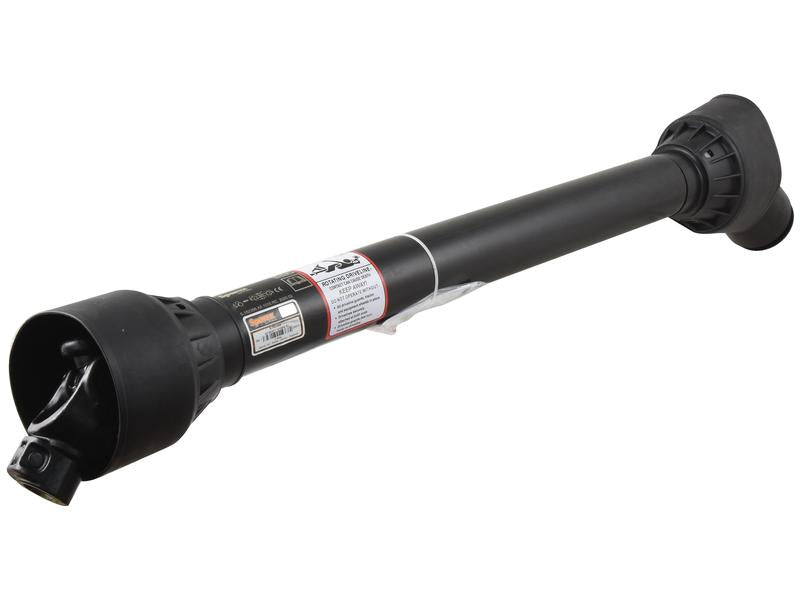

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Ratchet Clutch.

Key Specifications:

  • Brand: Sparex
  • Alternative to: 128693
  • Clutch Setting: 900 Nm
  • HP Rating @ 540 RPM: 47 HP (up to 54 HP)
  • Kilowatt Power Rating @ 540 RPM: 35 kW
  • Torque Range: 335 - 1240 Nm (Max Torque: 620 Nm)
  • Total Closed Length: 1285 mm
  • Tube Profile: Triangle
  • Type: 3 Row
  • Universal Joint Dimensions: 30.2 x 79.4 mm
  • Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB5/A5
  • PTO Series: AB5/A5
  • Tube Reference: 12509/12510
  • Tariff Code: 8483908990

Related Products:

Explore our range of compatible products: 24816, 24839, 2497, 59609, 59637, 6110, 6111, 6118, 163813, 166692, 166693.

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft. Perfect for various applications, this PTO shaft ensures smooth operation and enhanced performance.

Additional Product Information

Product Specifications

Alternative to: 128693
Brand: Sparex
Clutch Setting Nm: 900
HP Rating @ 540RPM: 47
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
Italian Series: AB5/A5
Kilowatt Power Rating @ 540RPM: 35
Lz Length (mm): 1010
PTO Series: AB5/A5
Related products: 24816, 24839, 2497, 59609, 59637, 6110, 6111, 6118, 163813, 166692, 166693
Tariff Code: 8483908990
Torque (Nm): 620
Torque: 335 - 1240Nm
Total Closed Length (mm): 1285
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12510
Type: 3 Row
Universal Joint Dimensions: 30.2 x 79.4mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Sparex PTO Shaft - 1010mm, 1 3/8" x 6 Spline Q.R. to Ratchet Clutch

- **High-Quality Sparex PTO Shaft:** Engineered for durability and optimal performance.
- **1010mm Length:** Provides flexibility for various applications.
- **1 3/8'' x 6 Spline Quick Release (Q.R.) to 1 3/8'' x 6 Spline Ratchet Clutch:** Seamless connection for reliable power transfer.
- **High HP Rating:** Up to 54 HP @ 540 RPM, suitable for demanding tasks.
- **Alternative to 128693:** Offers a compatible replacement option.
