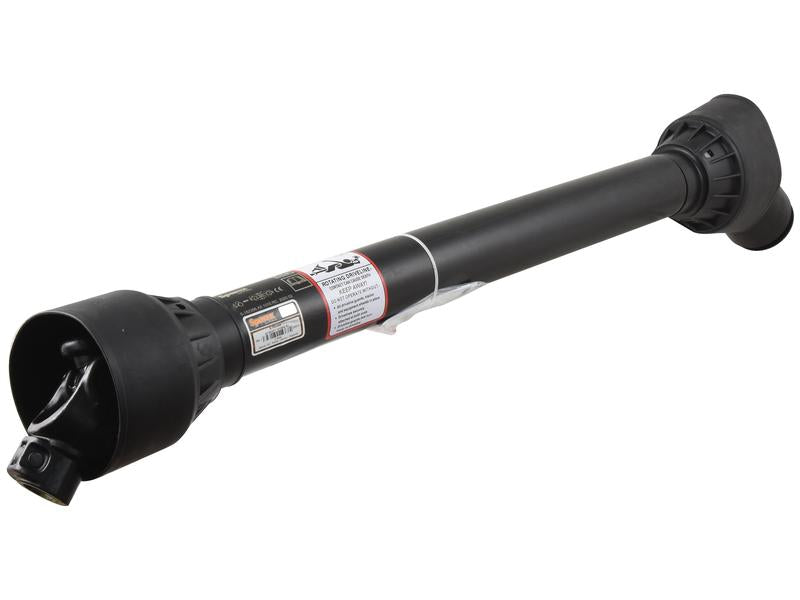

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch | Sparex Part Number: S.164287

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch | Sparex Part Number: S.164287

SKU:SP-S.164287

Regular price £190.05 GBP
Regular price £211.16 GBP Sale price £190.05 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 49 left

Quantity
Default Title

Sparex PTO Shaft - Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch

Introducing the Sparex PTO Shaft, a high-performance component designed for optimal efficiency and durability. This PTO shaft is engineered to meet the demands of various agricultural applications, ensuring reliable power transfer and exceptional performance.

Product Specifications

  • Brand: Sparex
  • Clutch Setting: 600 Nm
  • HP Rating @ 540 RPM: 35 HP
  • HP Rating Range @ 540 RPM: Up to 54 HP
  • Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
  • Italian Series: AB4/A4
  • Kilowatt Power Rating @ 540 RPM: 26 kW
  • Lz Length: 1010 mm
  • PTO Series: AB4/A4
  • Related Products: 10608, 163811, 166692, 166693
  • Tariff Code: 8483908990
  • Torque: 460 Nm
  • Torque Range: 335 - 1240 Nm
  • Total Closed Length: 50.2 inches (1275 mm)
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Tube Reference: 12507/12508
  • Type: 2 Row
  • Universal Joint Dimensions: 27 x 74.5 mm

This Sparex PTO Shaft is not associated with any specific OEM part number, making it a versatile choice for various applications. With its robust construction and reliable performance, it is an essential component for your agricultural machinery.

Upgrade your equipment with the Sparex PTO Shaft today and experience the difference in power and efficiency!

Additional Product Information

Product Specifications

Brand: Sparex
Clutch Setting Nm: 600
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 1010
PTO Series: AB4/A4
Related products: 10608, 163811, 166692, 166693
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (ins): 50.2
Total Closed Length (mm): 1275
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Type: 2 Row
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Sparex PTO Shaft - 1010mm, 1 3/8" x 6 Spline Q.R. to Ratchet Clutch

- **High-Performance Sparex PTO Shaft:** Designed for optimal efficiency and durability in agricultural applications.
- **Versatile Compatibility:** Not associated with any specific OEM part number, making it suitable for various equipment.
- **Robust Construction:** Ensures reliable power transfer and exceptional performance.
- **1010mm Length:** Provides flexibility for different tractor and implement combinations.
- **Ratchet Clutch Implement End:** Offers smooth and controlled engagement for safe operation.
