Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.162394

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.162394

SKU:SP-S.162394

Regular price £147.27 GBP
Regular price £163.63 GBP Sale price £147.27 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

149 in stock

Quantity
Default Title

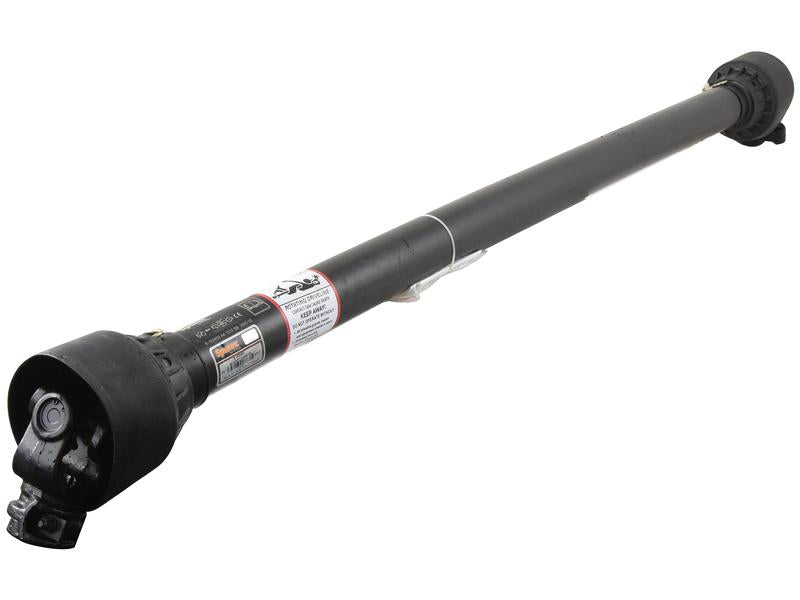

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

  • Brand: Sparex
  • Alternative to: 128687
  • Clutch Setting: 1400 Nm
  • HP Rating @ 540 RPM: 35 HP (up to 54 HP)
  • Kilowatt Power Rating @ 540 RPM: 26 kW
  • Torque Range: 335 - 1240 Nm (Max Torque: 460 Nm)
  • Total Closed Length: 48.2 inches (1225 mm)
  • Tractor PTO Rotation: Clockwise
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Shearbolt Clutch Bolt Diameter: 8 mm
  • Shearbolt Clutch Radius: 48 mm
  • Italian Series: AB4/A4
  • PTO Series: AB4/A4
  • Tube Reference: 12507/12508
  • Tariff Code: 8483908990

Related Products:

Explore our range of compatible products: 10608, 2448, 24814, 24815, 59605, 59636, 6048, 6100, 6101, 6157, 163811, 166692, 166693.

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft. Perfect for various applications, this PTO shaft ensures seamless operation and enhanced performance.

Additional Product Information

Product Specifications

Alternative to: 128687
Brand: Sparex
Clutch Setting Nm: 1400
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 1010
PTO Series: AB4/A4
Related products: 10608, 2448, 24814, 24815, 59605, 59636, 6048, 6100, 6101, 6157, 163811, 166692, 166693
Shearbolt Clutch Bolt Ø mm: 8
Shearbolt Clutch Radius mm: 48
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (ins): 48.2
Total Closed Length (mm): 1225
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tractor PTO Rotation: Clockwise
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
