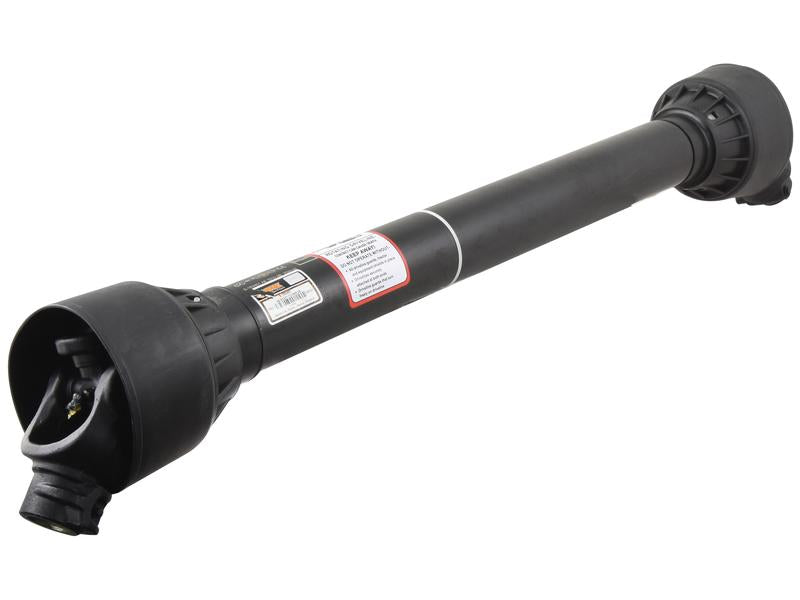

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.162401

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.162401

SKU:SP-S.162401

Regular price £188.60 GBP
Regular price £209.56 GBP Sale price £188.60 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

192 in stock

Quantity
Default Title

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

  • Brand: Sparex
  • Alternative to: 128701
  • Clutch Setting: 2500 Nm
  • HP Rating @ 540RPM: 64 HP (Range: 55 to 119 HP)
  • Kilowatt Power Rating @ 540RPM: 47 kW
  • Torque: 335 - 1240 Nm (Max Torque: 830 Nm)
  • Total Closed Length: 49.8 inches (1265 mm)
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 92 mm
  • Shearbolt Clutch Bolt Diameter: 10 mm
  • Shearbolt Clutch Radius: 55 mm
  • Italian Series: AB6/A6
  • PTO Series: AB6/A6
  • Tube Reference: 12509/12512
  • Tariff Code: 8483908990

Related Products:

Explore our range of compatible products: 2449, 24816, 24817, 59609, 59638, 6058, 6120, 6121, 6158, 163813, 166692, 166693.

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft. Perfect for various applications, this PTO shaft ensures seamless operation and enhanced performance.

Additional Product Information

Product Specifications

Alternative to: 128701
Brand: Sparex
Clutch Setting Nm: 2500
HP Rating @ 540RPM: 64
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Lz Length (mm): 1010
PTO Series: AB6/A6
Related products: 2449, 24816, 24817, 59609, 59638, 6058, 6120, 6121, 6158, 163813, 166692, 166693
Shearbolt Clutch Bolt Ø mm: 10
Shearbolt Clutch Radius mm: 55
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (ins): 49.8
Total Closed Length (mm): 1265
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

1010mm PTO Shaft, 1 3/8" x 6 Spline, Q.R. to Shear Bolt Limiter

- **Sparex PTO Shaft:** High-quality, durable PTO shaft for optimal performance.
- **1010mm Length:** Provides flexibility for various applications.
- **1 3/8'' x 6 Spline Q.R. Tractor End:** Ensures secure connection to your tractor.
- **1 3/8'' x 6 Spline Shear Bolt Limiter Implement End:** Protects your equipment from overload.
- **High HP Rating:** Handles demanding tasks with a 64 HP rating (55 to 119 HP range).
