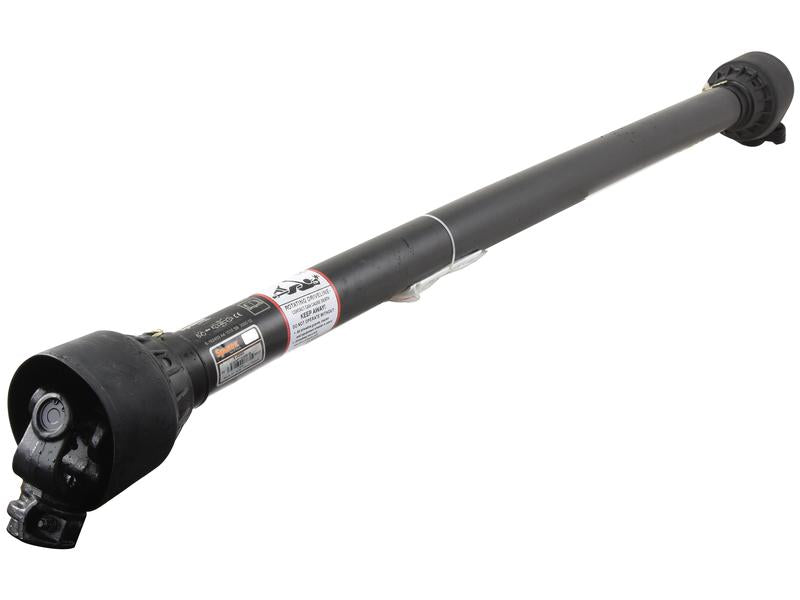

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164276

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164276

SKU:SP-S.164276

Regular price £119.02 GBP
Regular price £132.24 GBP Sale price £119.02 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 59 left

Quantity
Default Title

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

  • Brand: Sparex
  • Alternative to: 128676
  • Clutch Setting: 790 Nm
  • HP Rating @ 540 RPM: 21 HP (up to 54 HP)
  • Kilowatt Power Rating @ 540 RPM: 15 kW
  • Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
  • PTO Series: AB2/A2
  • Torque: 210-334 Nm (270 Nm nominal)
  • Total Closed Length: 1206 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 23.8 x 61.2 mm
  • Shearbolt Clutch Bolt Diameter: 6 mm
  • Shearbolt Clutch Radius: 48 mm
  • Tariff Code: 8483908990
  • Related Products: 10607, 163811, 166692, 166693
  • Tube Reference: 12504/12505

This Sparex PTO Shaft is engineered to meet the demands of various agricultural applications, ensuring reliable performance and compatibility with the Italian Series AB2/A2. Upgrade your machinery with this robust and efficient PTO shaft today!

Additional Product Information

Product Specifications

Alternative to: 128676
Brand: Sparex
Clutch Setting Nm: 790
HP Rating @ 540RPM: 21
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB2/A2
Kilowatt Power Rating @ 540RPM: 15
Lz Length (mm): 1010
PTO Series: AB2/A2
Related products: 10607, 163811, 166692, 166693
Shearbolt Clutch Bolt Ø mm: 6
Shearbolt Clutch Radius mm: 48
Tariff Code: 8483908990
Torque (Nm): 270
Torque: 210-334Nm
Total Closed Length (mm): 1206
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12504/12505
Universal Joint Dimensions: 23.8 x 61.2mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
