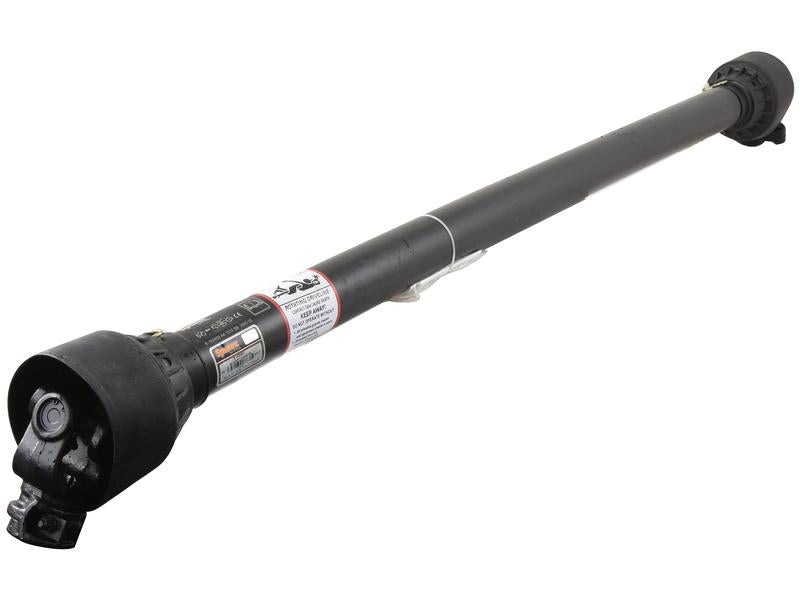

Sparex PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164296

Sparex PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164296

SKU:SP-S.164296

Regular price £224.86 GBP
Regular price £224.86 GBP Sale price £224.86 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

129 in stock

Quantity
Default Title

Sparex PTO Shaft - (Lz) Length: 1210mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1210mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

  • Brand: Sparex
  • Clutch Setting: 1600 Nm
  • HP Rating @ 540RPM: 47 HP (up to 54 HP)
  • Kilowatt Power Rating @ 540RPM: 35 kW
  • Torque: 335 - 1240 Nm (620 Nm nominal)
  • Total Closed Length: 1432 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 79.4 mm
  • Shearbolt Clutch Bolt Diameter: 8 mm
  • Shearbolt Clutch Radius: 55 mm
  • Italian Series: AB5/A5
  • PTO Series: AB5/A5
  • Tube Reference: 12509/12510
  • Tariff Code: 8483908990

Compatibility:

This PTO shaft serves as an alternative to part numbers 128692 and 128717. It is compatible with various implements and is designed to meet the needs of agricultural machinery.

Related Products:

  • 163813
  • 166692
  • 166693

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft today!

Additional Product Information

Product Specifications

Alternative to: 128692, 128717
Brand: Sparex
Clutch Setting Nm: 1600
HP Rating @ 540RPM: 47
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB5/A5
Kilowatt Power Rating @ 540RPM: 35
Lz Length (mm): 1210
PTO Series: AB5/A5
Related products: 163813, 166692, 166693
Shearbolt Clutch Bolt Ø mm: 8
Shearbolt Clutch Radius mm: 55
Tariff Code: 8483908990
Torque (Nm): 620
Torque: 335 - 1240Nm
Total Closed Length (mm): 1432
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12510
Universal Joint Dimensions: 30.2 x 79.4mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

1210mm PTO Shaft, 1 3/8" x 6 Spline, S.164296

- **Sparex Brand:** Known for quality and reliability in agricultural equipment.
- **1210mm Length:** Suitable for a wide range of applications.
- **1 3/8'' x 6 Spline Q.R. Tractor End:** Standard connection for most tractors.
- **1 3/8'' x 6 Spline Shear Bolt Limiter Implement End:** Provides overload protection for your equipment.
- **High HP Rating:** Up to 54 HP, suitable for demanding tasks.
