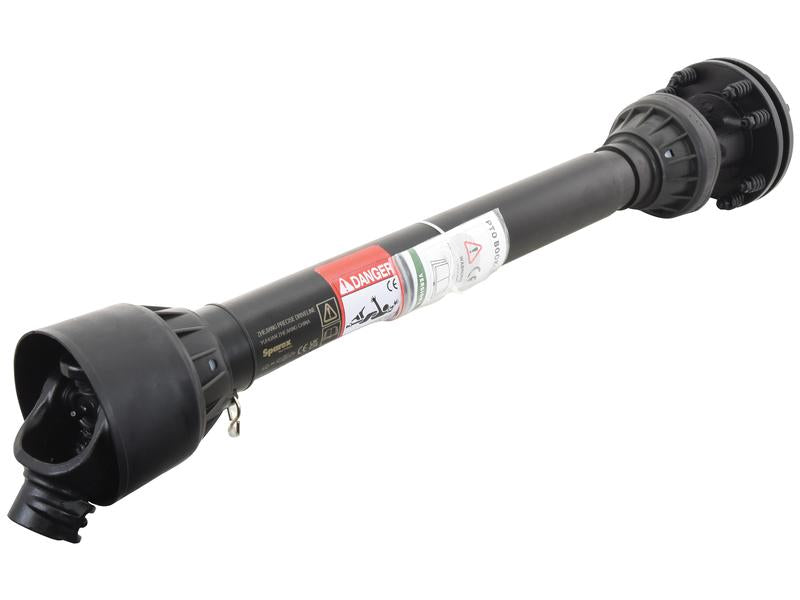

Sparex PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch | Sparex Part Number: S.164312

Sparex PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch | Sparex Part Number: S.164312

SKU:SP-S.164312

Regular price £448.20 GBP
Regular price £498.00 GBP Sale price £448.20 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity
Default Title

Sparex PTO Shaft - (Lz) Length: 1510mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1510mm and is equipped with a 1 3/8'' x 6 Spline Q.R. connection on the tractor end, transitioning to a 1 3/8'' x 6 Spline Friction Disc Clutch on the implement end.

Key Specifications:

  • Brand: Sparex
  • Clutch Setting: 1400 Nm
  • HP Rating @ 540RPM: 95 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540RPM: 70 kW
  • Number of Discs: 2
  • Torque: 335 - 1240 Nm
  • Total Closed Length: 1801 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 35 x 106.5 mm
  • Italian Series: AB8N/A8N
  • PTO Series: AB8N/A8N
  • Related Products: 166692, 166693
  • Tariff Code: 8483908990
  • Tube Reference: 12512/12522

This PTO shaft is engineered to meet the demands of various agricultural applications, ensuring reliable power transfer and efficiency. With a robust torque range of 1240 Nm, it is suitable for a wide array of implements.

Upgrade your machinery with the Sparex PTO Shaft and experience enhanced performance and durability. Perfect for those seeking a reliable solution for their agricultural needs.

Additional Product Information

Product Specifications

Brand: Sparex
Clutch Setting Nm: 1400
HP Rating @ 540RPM: 95
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
Italian Series: AB8N/A8N
Kilowatt Power Rating @ 540RPM: 70
Lz Length (mm): 1510
Number of Discs: 2
PTO Series: AB8N/A8N
Related products: 166692, 166693
Tariff Code: 8483908990
Torque (Nm): 1240
Torque: 335 - 1240Nm
Total Closed Length (mm): 1801
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12512/12522
Universal Joint Dimensions: 35 x 106.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
